🚀 STEM教育：轻松实现空间站数字大屏系统！

步骤1 前言

之前做了一个项目【Mind+ Python】基于Pyecharts + Flask + Pinpong 智能家居数字大屏系统，所用的知识对于新手老师来说不是很友好！去年9月份蘑菇云科创教育就面发布向中小学物联网教学解决方案，推出了三款不同方面科学探究实验软硬件工具，它们分别是：SCI采集模块、云雀气象仪、Mind+物联网可视化面板。如今大半年过去了，Mind+的物联网可视化面板终于可以用上了（真香警告⚠）。

笔者之前用过Onenet view2.0平台（组件较少，开发难度对新手不太友好），

和Onenet view3.0平台（组件丰富，门口较高，数据解析太麻烦，重点需要钞能力?）

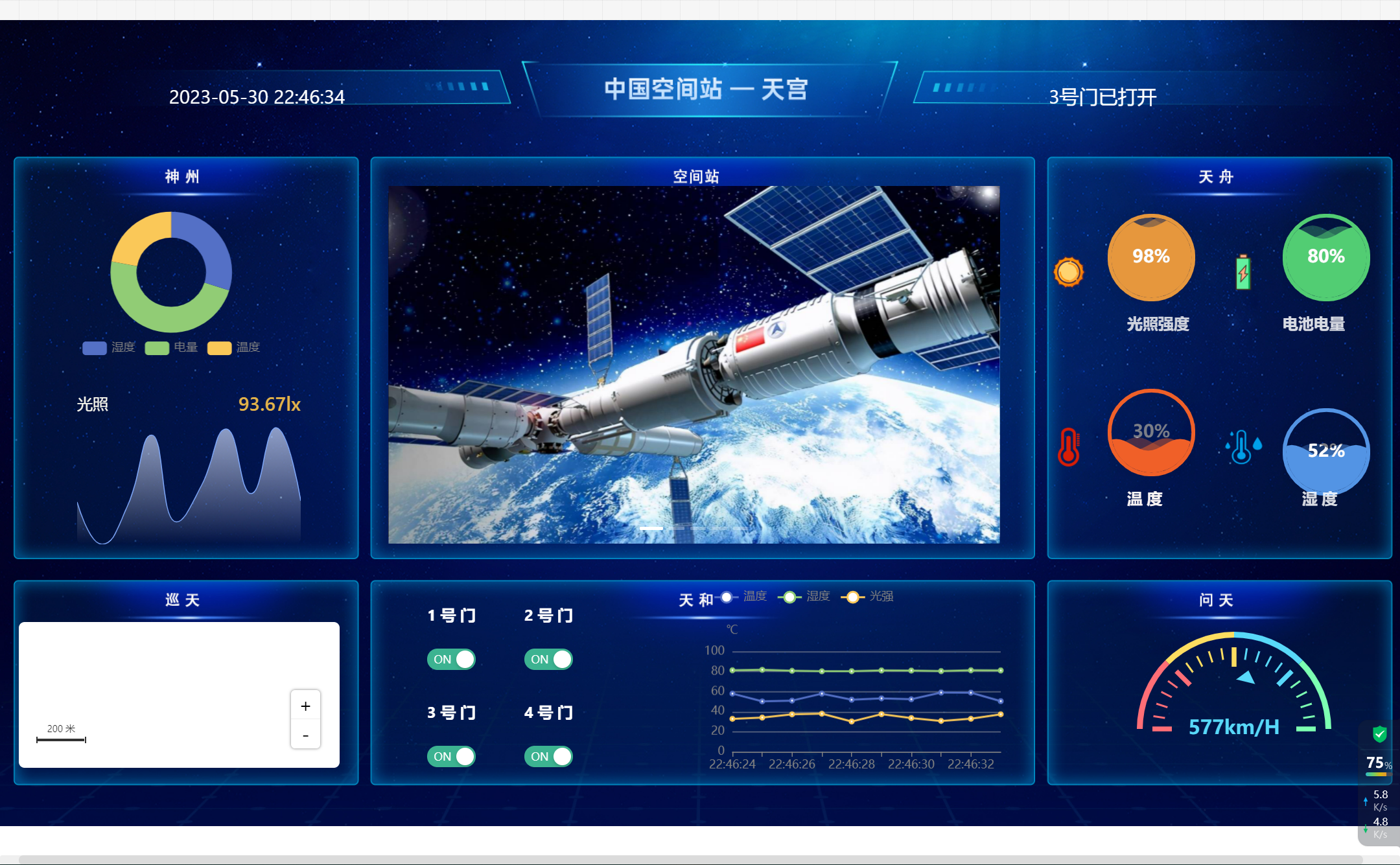

现在mind+数据可视化面包的开放，让我们做数据可视化平台如鱼得水，如虎添翼。那么这次就用它来做一个【空间站数字大屏系统】

步骤2 准备阶段

请各位老师确保自己的系统环境是否正确：

1： Mind+1.8.0版本+

2：SIoT V2版本+

【下载链接】：
注:测试版本

阿里云盘下载：
链接：https://www.aliyundrive.com/s/KbWMbbEX8Jf
提取码: n5n9百度云盘下载：
链接：https://pan.baidu.com/s/11i3E0RxUL_tGUzys_b3U6w?pwd=mind
提取码：mind

具体的按照步骤及相关组件的学习这里我就补一一赘述，感兴趣的老师可以看一下【Mind+数据可视化面板说明文档】

步骤3 界面设置

代码

#  -*- coding: UTF-8 -*-

# MindPlus
# Python
import time
import siot
import random

# 事件回调函数
def on_message_callback(client, userdata, msg):
    print(msg.payload.decode())
    if (msg.payload.decode() == "1"):
        siot.publish_save(topic="siot/btmsg", data="1号门已打开")
    if (msg.payload.decode() == "2"):
        siot.publish_save(topic="siot/btmsg", data="1号门已关闭")
    if (msg.payload.decode() == "3"):
        siot.publish_save(topic="siot/btmsg", data="2号门已打开")
    if (msg.payload.decode() == "4"):
        siot.publish_save(topic="siot/btmsg", data="2号门已关闭")
    if (msg.payload.decode() == "5"):
        siot.publish_save(topic="siot/btmsg", data="3号门已打开")
    if (msg.payload.decode() == "6"):
        siot.publish_save(topic="siot/btmsg", data="3号门已关闭")
    if (msg.payload.decode() == "7"):
        siot.publish_save(topic="siot/btmsg", data="4号门已打开")
    if (msg.payload.decode() == "8"):
        siot.publish_save(topic="siot/btmsg", data="4号门已关闭")



siot.init(client_id="08743463905540527",server="192.168.83.1",port=1883,user="siot",password="dfrobot")
siot.set_callback(on_message_callback)
siot.connect()
siot.loop()
siot.getsubscribe(topic="siot/btstate")


while True:
    temp = round(random.uniform(30,40),2)
    humi = round(random.uniform(50,60),2)
    battery = round(random.uniform(80,82),2)
    light = round(random.uniform(90,100),2)
    speed = round(random.uniform(500,600),2)
    value = str(humi)+","+str(battery) +"," +str(temp)
    siot.publish_save(topic="siot/value", data=value)
    siot.publish_save(topic="siot/temp", data=temp)
    siot.publish_save(topic="siot/humi", data=humi)
    siot.publish_save(topic="siot/speed", data=speed)
    siot.publish_save(topic="siot/battery", data=battery)
    siot.publish_save(topic="siot/light", data=light)
    siot.publish(topic="siot/pg", data=time.strftime("%Y-%m-%d %H:%M:%S",time.localtime()))

    time.sleep(1)

附件

siot.zip

玩转Mind+数据可视化-空间站数字大屏系统
