【花雕学编程】Arduino动手做（249）---ESP32+GC9A01之模拟带有上升轨迹的烟花动画，到达顶点后爆炸扩散

/*
  【Arduino】189种传感器模块系列实验（资料代码+仿真编程+图形编程）

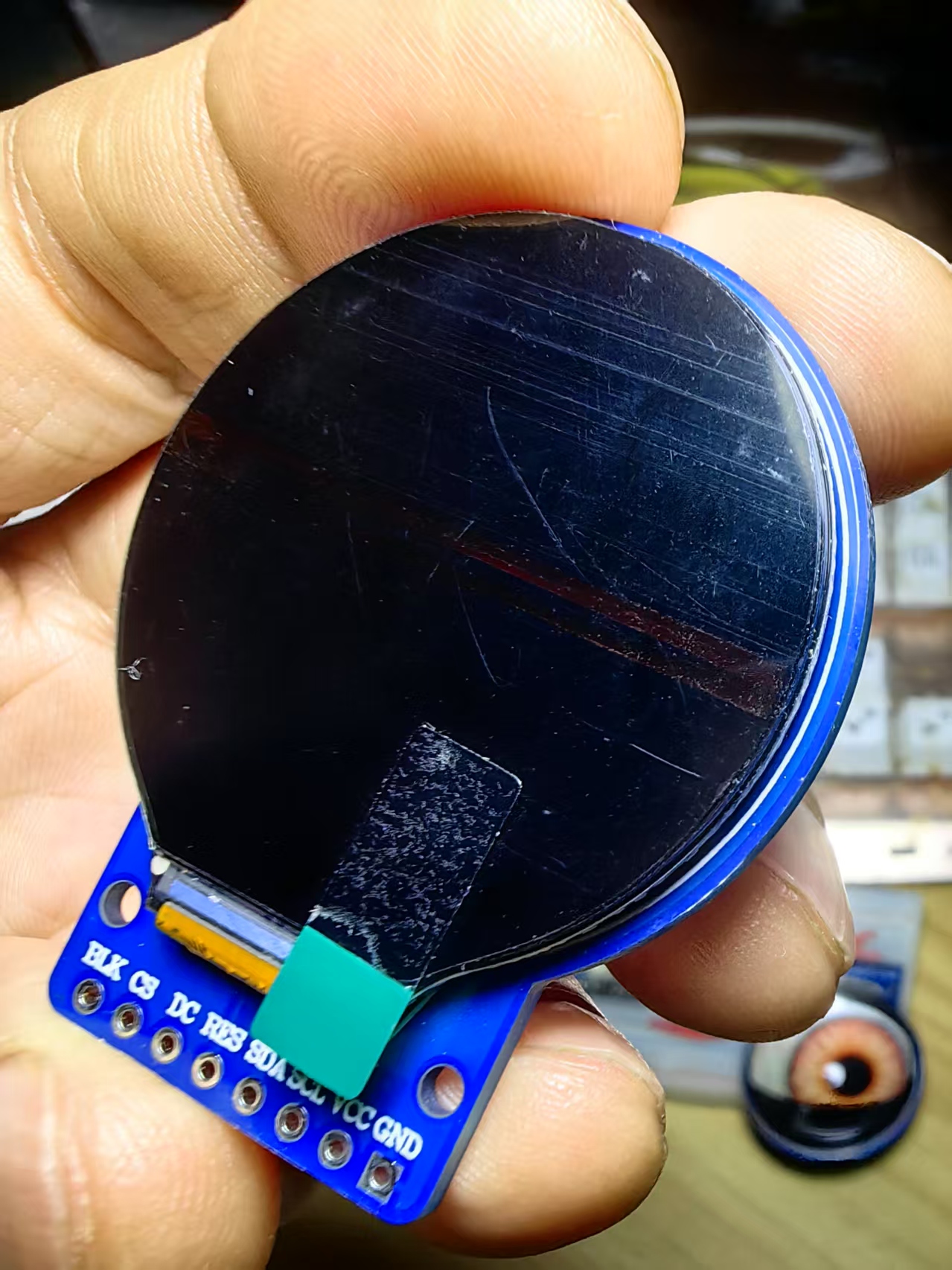

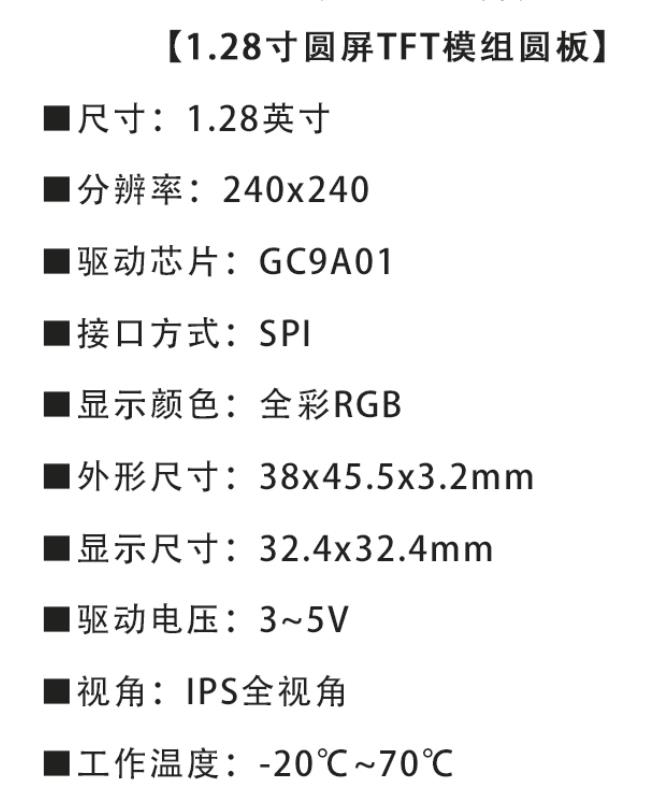

  实验二百四十九：1.28寸圆形彩色TFT显示屏 高清IPS 模块 240*240 SPI接口GC9A01驱动

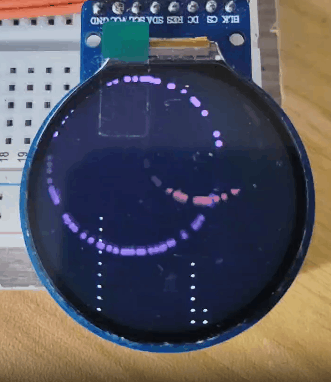

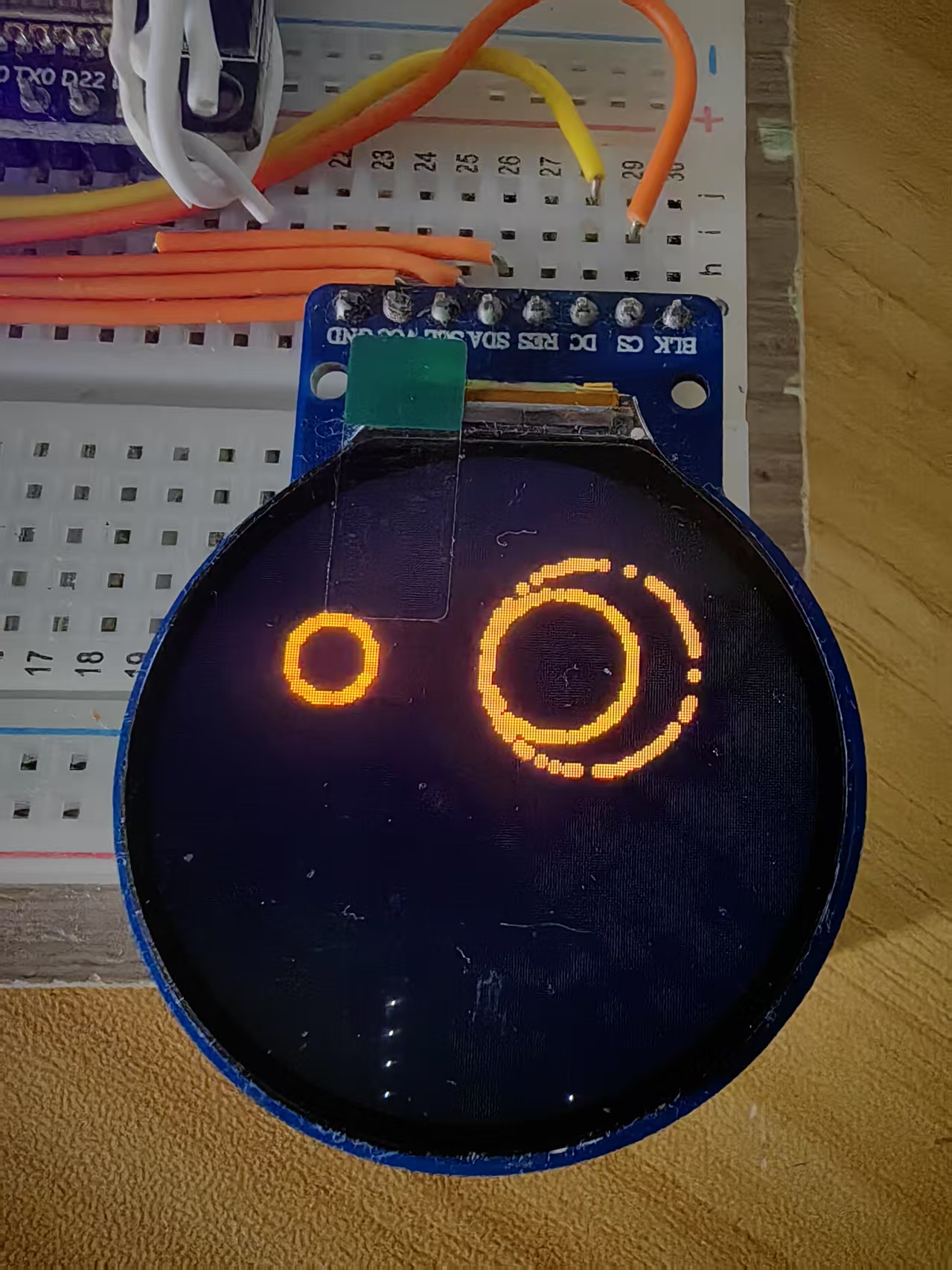

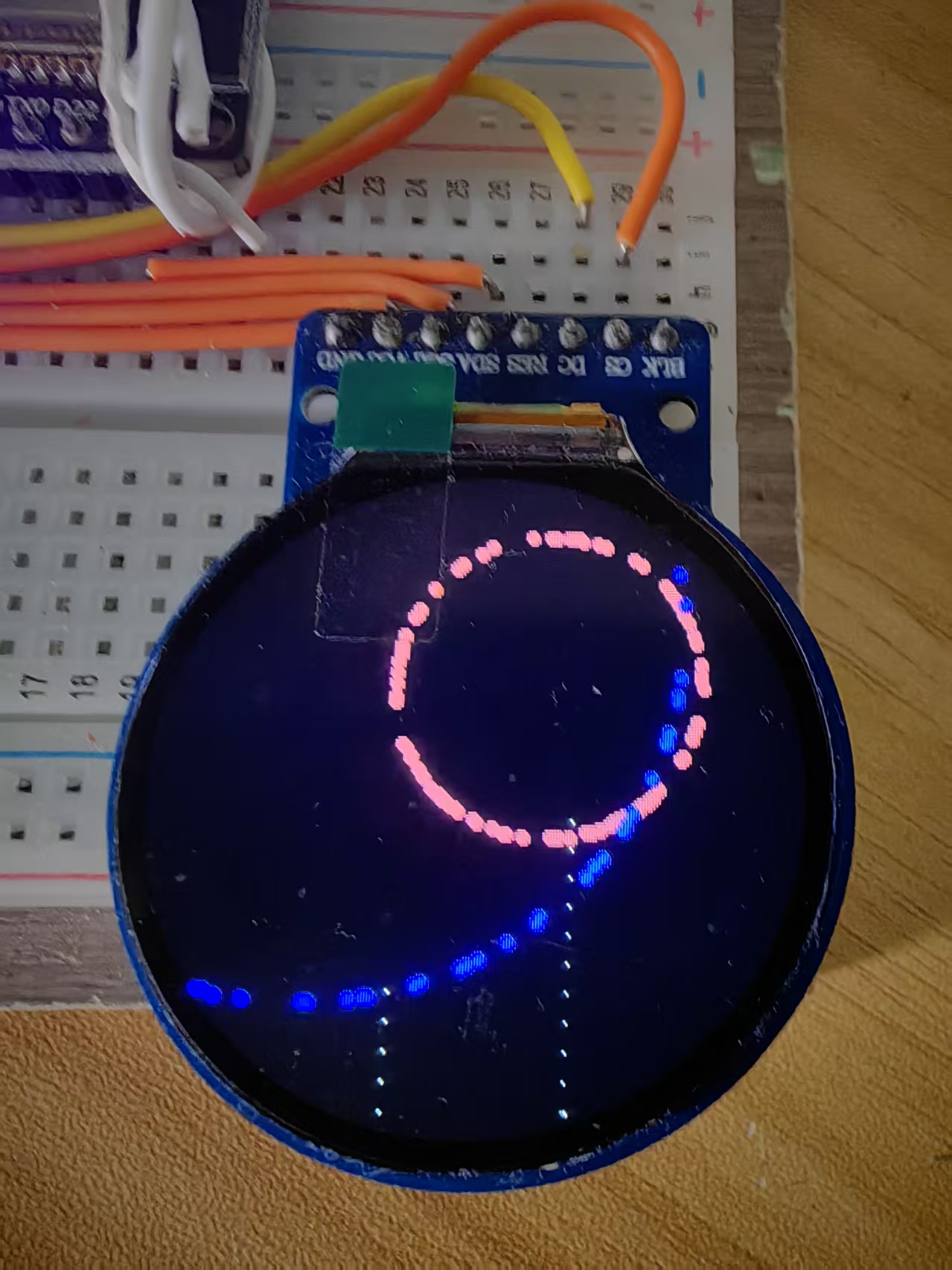

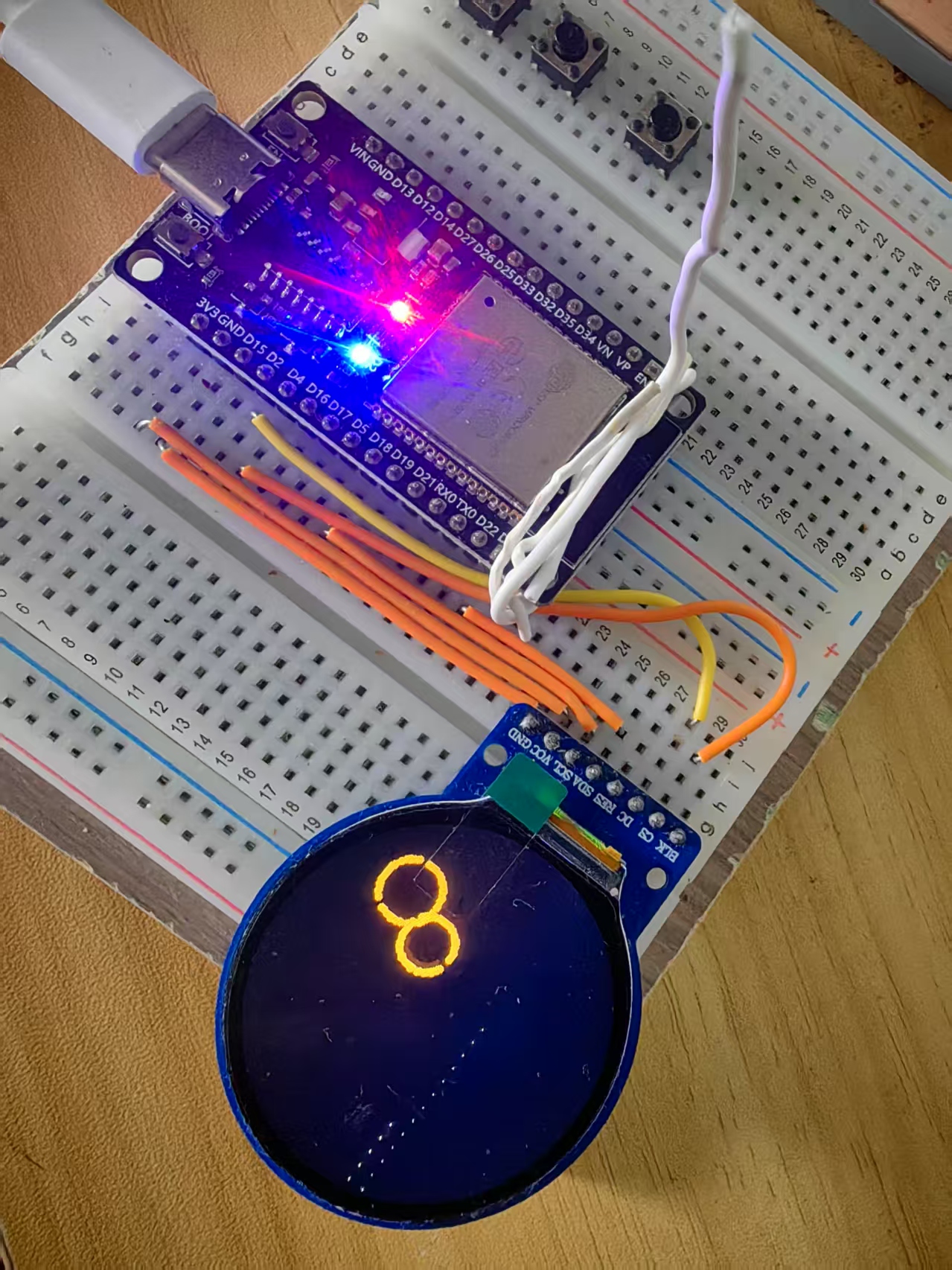

  项目之一百一十五：ESP32+GC9A01之模拟一个带有上升轨迹的烟花动画
*/

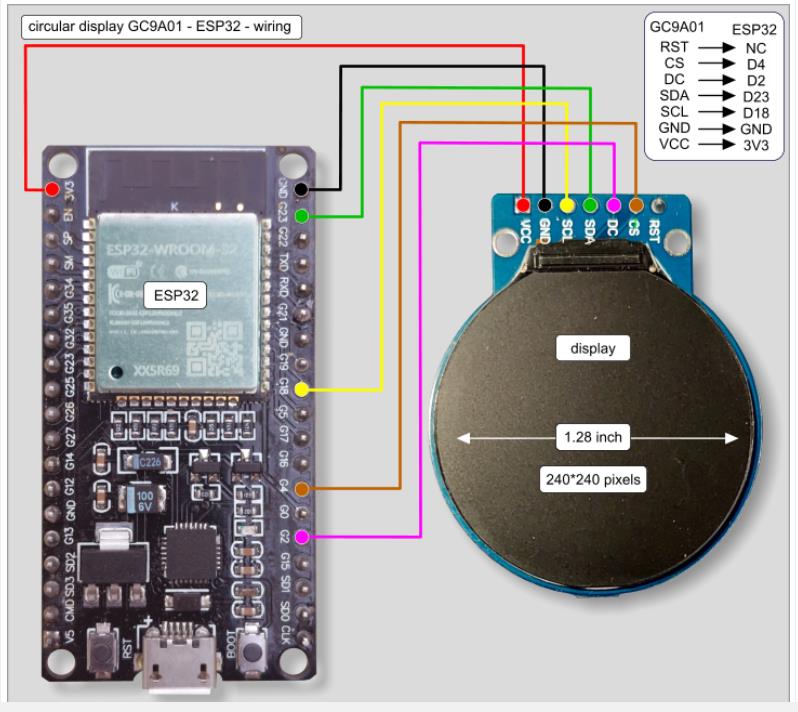

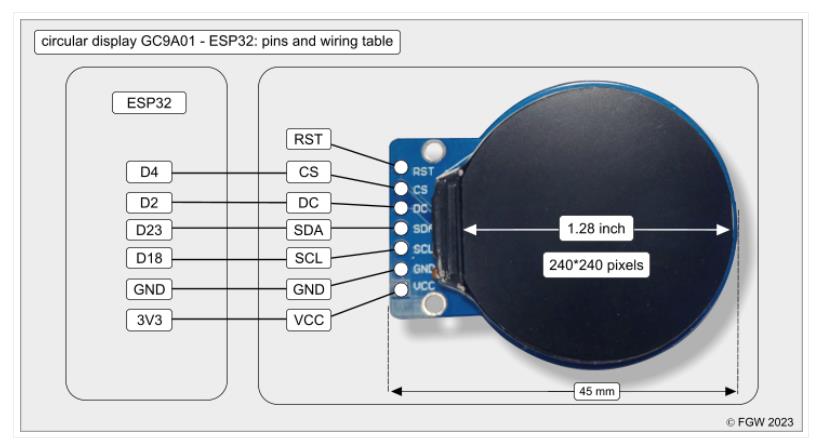

//       GC9A01---------- ESP32
//       RST ------------ NC（复位引脚，此处未连接）
//       CS ------------- D4（片选引脚，连接到ESP32的D4引脚）
//       DC ------------- D2（数据/命令选择引脚，连接到ESP32的D2引脚）
//       SDA ------------ D23 (green)（主数据输出引脚，连接到ESP32的D23引脚，绿色线）
//       SCL ------------ D18 (yellow)（时钟信号引脚，连接到ESP32的D18引脚，黄色线）
//       GND ------------ GND（接地引脚，连接到ESP32的接地端）
//       VCC -------------3V3（电源引脚，连接到ESP32的3.3V电源）

#include <TFT_eSPI.h>
#include <math.h>

#define SCREEN_WIDTH 240
#define SCREEN_HEIGHT 240
#define NUM_FIREWORKS 5   // **烟花数量**
#define NUM_PARTICLES 100  // **每个烟花的粒子**
#define TRAIL_LENGTH 100   // **上升轨迹长度**
#define TRAIL_SPEED 10     // **上升速度**
#define EXPLOSION_SPEED 3 // **爆炸速度**
#define FADE_RATE 5       // **颜色渐变速率**
#define INTERVAL 300      // **烟花间隔时间**

TFT_eSPI tft = TFT_eSPI();

struct Particle {
    float x, y;
    float vx, vy;
    uint16_t color;
    int lifetime;
};

struct Firework {
    float x, y;
    float vy;
    bool exploded;
    float trailY[TRAIL_LENGTH]; // **存储上升轨迹**
    Particle particles[NUM_PARTICLES];
};

Firework fireworks[NUM_FIREWORKS];
uint32_t lastLaunchTime = 0;

void setup() {
    Serial.begin(115200);
    tft.init();
    tft.setRotation(2);
    tft.fillScreen(TFT_BLACK);

    for (int i = 0; i < NUM_FIREWORKS; i++) {
        fireworks[i].x = random(50, SCREEN_WIDTH - 50);
        fireworks[i].y = SCREEN_HEIGHT;
        fireworks[i].vy = -TRAIL_SPEED;
        fireworks[i].exploded = false;

        for (int j = 0; j < TRAIL_LENGTH; j++) {
            fireworks[i].trailY[j] = SCREEN_HEIGHT;
        }
    }
}

void launchFireworks() {
    for (int i = 0; i < NUM_FIREWORKS; i++) {
        Firework &fw = fireworks[i];

        if (!fw.exploded) {
            // **绘制轨迹**
            for (int j = 0; j < TRAIL_LENGTH; j++) {
                int alpha = (255 - j * 12); // **让轨迹逐渐变暗**
                uint16_t color = tft.color565(alpha, alpha, alpha);
                tft.drawPixel(fw.x, fw.trailY[j], color);
            }

            // **更新轨迹位置**
            for (int j = TRAIL_LENGTH - 1; j > 0; j--) {
                fw.trailY[j] = fw.trailY[j - 1];
            }
            fw.trailY[0] = fw.y; // **当前烟花位置**

            // **移动烟花**
            fw.y += fw.vy;

            if (fw.y < random(60, 100)) {  // **到达爆炸高度**
                fw.exploded = true;
                for (int j = 0; j < NUM_PARTICLES; j++) {
                    float angle = random(0, 360) * M_PI / 180;
                    fw.particles[j].vx = cos(angle) * EXPLOSION_SPEED;
                    fw.particles[j].vy = sin(angle) * EXPLOSION_SPEED;
                    fw.particles[j].x = fw.x;
                    fw.particles[j].y = fw.y;
                    fw.particles[j].color = tft.color565(random(150, 255), random(50, 255), random(50, 255));
                    fw.particles[j].lifetime = 255;
                }
            }
        } else {
            for (int j = 0; j < NUM_PARTICLES; j++) {
                Particle &p = fw.particles[j];

                if (p.lifetime > 0) {
                    tft.fillCircle(p.x, p.y, 2, p.color);
                    p.x += p.vx;
                    p.y += p.vy;
                    p.color = tft.color565(p.lifetime, p.lifetime / 2, 255 - p.lifetime);
                    p.lifetime -= FADE_RATE;
                }
            }
        }
    }

    // **每隔 300 毫秒触发新烟花**
    if (millis() - lastLaunchTime > INTERVAL) {
        lastLaunchTime = millis();
        int index = random(0, NUM_FIREWORKS);
        fireworks[index].y = SCREEN_HEIGHT;
        fireworks[index].exploded = false;

        for (int j = 0; j < TRAIL_LENGTH; j++) {
            fireworks[index].trailY[j] = SCREEN_HEIGHT;
        }
    }
}

void loop() {
    tft.fillScreen(TFT_BLACK);
    launchFireworks();
    delay(50);
}
