Arduino项目 · 百变闪字棒

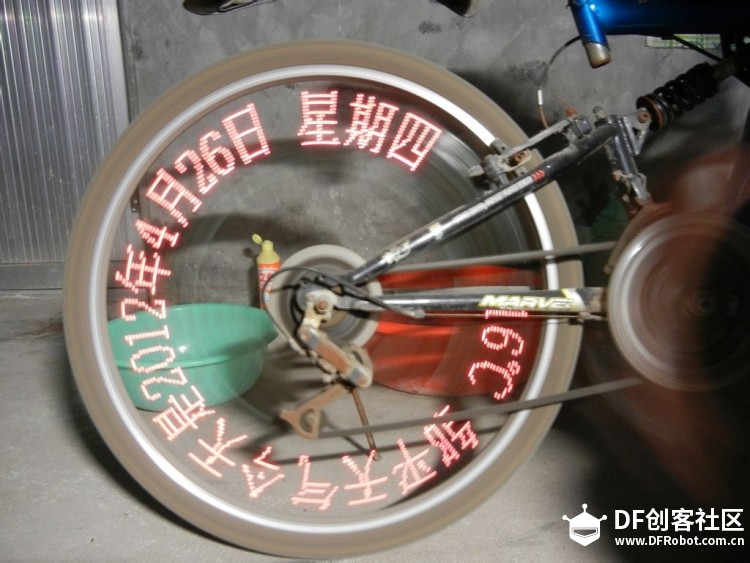

【简介】你见过会显示日期及温度的自行车吗？你有听过POV LED吗？百变闪字棒图1

这个项目中，做一个百变闪字棒，模拟这种自行车的效果。最后完成图如下
百变闪字棒图2

【器材】Arduino Nano，LED×15，震动传感器，面包板，导线若干。
【原理】电路原理图如下

百变闪字棒图3

【接线】接线示意图如下
百变闪字棒图4

【程序】代码程序如下

int a = 12;// LED1接digital_12
int b = 10;// LED2接digital_10
int c = 8;//  LED3接digital_8
int d = 6;//  LED4接digital_6
int e = 4;//  LED5接digital_4
int f = 2;//  LED6接digital_2
int g = 0;//  LED7接digital_0
int h = 1;//  LED8接digital_1
int j = 13;// LED9接digital_13
int k = 19;// LED10接analog_A5 (模拟口A0-A5相当于数据口digital14-digial19)
int m = 18;// LED11接analog_A4
int n = 17;// LED12接analog_A3
int p = 16;// LED13接analog_A2
int q = 15;// LED14接analog_A1
int r = 14;// LED15接analog_A0
//震动开关触发后,延迟时间的调整，采用触发后300+50=350毫秒以保持同步
int delayTime1=300;
//采用矩阵输出字符图形,每个字符高15个点
byte bars[15] = {a,b,c,d,e,f,g,h,j,k,m,n,p,q,r};
/***************************字模数组******************************/
byte youth_digits[28][15] = {  //---显示‘少年’的数组
{0,0,0,0,0,0,0,1,1,0,0,0,0,0,1 },//少
{0,0,0,0,0,0,1,1,0,0,0,0,0,0,1 },
{0,0,0,0,1,1,1,0,0,0,0,0,0,0,1 },
{0,0,0,0,1,0,0,0,0,0,0,0,0,1,1 },
{0,0,0,0,0,0,0,0,0,0,0,0,0,1,0 },
{0,0,0,0,0,0,0,0,0,0,0,0,0,1,0 },
{1,1,1,1,1,1,1,1,1,1,0,0,1,1,0 },
{0,0,0,0,0,0,0,0,0,0,0,0,1,0,0 },
{0,0,0,1,0,0,0,0,0,0,0,1,0,0,0 },
{0,0,0,0,1,0,0,0,0,0,1,1,0,0,0 },
{0,0,0,0,1,1,0,0,0,1,1,0,0,0,0 },
{0,0,0,0,0,1,1,0,0,1,0,0,0,0,0 },
{0,0,0,0,0,0,1,0,0,0,0,0,0,0,0 },
{0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 },
{0,0,0,0,0,0,0,0,0,0,1,0,0,0,0 },//年
{0,0,0,0,0,1,0,0,0,0,1,0,0,0,0 },
{0,0,1,1,1,0,1,1,1,1,1,0,0,0,0 },
{1,1,1,1,0,0,1,0,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,1,0,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,1,0,0,0,1,0,0,0,0 },
{0,0,0,1,1,1,1,1,1,1,1,1,1,1,1 },
{0,0,0,1,0,0,1,0,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,1,0,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,1,0,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,1,0,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,0,0,0,0,1,0,0,0,0 },
{0,0,0,0,0,0,0,0,0,0,1,0,0,0,0 },};
byte dianzi_digits[26][15] = { //--- 显示‘电子’的数组
{0,0,0,1,1,1,1,1,1,1,1,1,0,0,0 },//电
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,0 },
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,0 },
{1,1,1,1,1,1,1,1,1,1,1,1,1,1,0 },
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,1 },
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,1 },
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,1 },
{0,0,0,1,0,0,0,1,0,0,1,0,0,0,1 },
{0,0,0,1,1,1,1,1,1,1,1,0,0,1,0 },
{0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 },
{0,0,0,0,0,0,1,0,0,0,1,0,0,0,0 },//子
{0,0,0,0,0,0,1,0,0,0,1,0,0,0,0 },
{1,0,0,0,0,0,1,0,0,0,0,0,0,0,0 },
{1,0,0,0,0,0,1,0,0,0,0,0,0,0,0 },
{1,0,0,0,0,0,1,0,0,0,0,0,0,1,0 },
{1,0,0,0,0,0,1,0,0,0,0,0,0,1,0 },
{1,0,0,1,1,1,1,1,1,1,1,1,1,1,0 },
{1,0,0,1,0,0,1,0,0,0,0,0,0,0,0 },
{1,0,1,0,0,0,1,0,0,0,0,0,0,0,0 },
{1,1,1,0,0,0,1,0,0,0,0,0,0,0,0 },
{1,1,0,0,0,0,1,0,0,0,0,0,0,0,0 },
{1,1,0,0,0,0,1,0,0,0,0,0,0,0,0 },
{1,0,0,0,0,0,1,0,0,0,0,0,0,0,0 },
{0,0,0,0,0,0,1,0,0,0,0,0,0,0,0 }, };
byte gao_digits[15][15] = {    //--- 显示‘高’的数组
{0,1,0,0,0,0,0,0,0,0,0,0,0,0,0 },
{0,1,0,0,0,0,0,0,0,1,1,1,1,1,1 },
{0,1,0,0,0,0,0,0,1,0,0,0,0,0,0 },
{0,1,0,1,1,1,1,0,1,0,0,0,0,0,0 },
{0,1,0,1,0,0,1,0,1,0,1,1,1,0,0 },
{0,1,0,1,0,0,1,0,1,0,1,0,1,0,0 },
{0,1,0,1,0,0,1,0,1,0,1,0,1,0,0 },
{1,1,0,1,0,0,1,0,1,0,1,0,1,0,0 },
{0,1,0,1,0,0,1,0,1,0,1,0,1,0,0 },
{0,1,0,1,0,0,1,0,1,0,1,0,1,0,0 },
{0,1,0,1,0,0,1,0,1,0,1,1,1,0,0 },
{0,1,0,1,1,1,1,0,1,0,0,0,0,0,0 },
{0,1,0,0,0,0,0,0,1,0,0,0,0,0,1 },
{0,1,0,0,0,0,0,0,0,1,1,1,1,1,1 },
{0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 },};
byte shou_digits[14][15] = {   //--- 显示‘手’的数组
{0,0,0,0,0,0,0,0,1,0,0,0,0,0,0 },
{0,1,0,0,0,0,0,0,1,0,0,0,0,0,0 },
{0,1,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{0,1,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{0,1,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{0,1,0,0,0,1,0,0,1,0,0,0,0,0,1 },
{0,1,0,0,0,1,0,0,1,0,0,0,0,0,1 },
{0,1,1,1,1,1,1,1,1,1,1,1,1,1,1 },
{0,1,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{0,1,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{1,1,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{1,1,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{1,0,0,0,0,1,0,0,1,0,0,0,0,0,0 },
{0,0,0,0,0,0,0,0,1,0,0,0,0,0,0 },};
/***************************初始化函数******************************/
void setup()//设置输出口
{
  for (int i = 0; i < 3; i++)
{
   pinMode(i, OUTPUT); //设置D0到D2引脚为输出状态
   digitalWrite(i,LOW);//初始设置，所有的LED灭
}
  pinMode(3, INPUT);   //设置D3引脚为输入状态，为震动开关的数字输入
   digitalWrite(3,HIGH);//初始设置内置上拉电阻：20-50k
for (int i = 4; i < 20; i++)
 {
   pinMode(i, OUTPUT); //设置D4到D19引脚为输出状态
   digitalWrite(i,LOW);//初始设置，所有的LED灭
}
}
/***************子函数（显示“少年电子高手”）字样函数******************/
void youth() //---------------- 点亮‘少年’字样
{
 for (int j=0;j<28;j++)
{
 //第一重循环，横扫‘少年’两个字的列，每个字14列
for (int i = 0; i < 15; i++)
{
//第二重循环，竖扫15次，逐个给一列当中的每一个点赋值
//对应数组依次点亮每个灯来显示少年字样
          digitalWrite(bars[i],youth_digits[j][i] );
}
   delay(3);//这个延迟时间很重要，关系到摇动的快慢以及字的宽度
 }
 for (int kk = 0; kk <20; kk++)
{
    digitalWrite(kk,LOW);//所有灯熄灭
  }
}
void electronic()//------------ 点亮‘电子’字样
{
  for (int j=0;j<26;j++){
  //第一重循环，横扫‘电子’两个字的列，共26列
   for (int i = 0; i < 15; i++)
{
//第二重循环，竖扫15次，逐个给一列当中的每一个点赋值
          //对应数组依次点亮每个灯来显示电子字样
digitalWrite(bars[i],dianzi_digits[j][i] );
}
   delay(3); //这个延迟时间很重要，关系到摇动的快慢以及字的宽度
}
  for (int kk = 0; kk <20; kk++)
{
    digitalWrite(kk,LOW); //所有灯熄灭
   }
}
void gaoshou()//--------------- 点亮‘高手’字样
{
   for (int j=0;j<15;j++)
{ // 点亮‘高’
      for (int i = 0; i < 15; i++)
{
        digitalWrite(bars[i],gao_digits[j][i] );
}
      delay(3);
    }
   for (int kk = 0; kk <20; kk++)
{
    digitalWrite(kk,LOW);
   }
  for (int j=0;j<14;j++)// 点亮‘手’，与上面的高组成词：高手
{
     for (int i = 0; i < 15; i++)
{
       digitalWrite(bars[i],shou_digits[j][i] );
}
     delay(3);
   }
  for (int kk = 0; kk <20; kk++)
{
    digitalWrite(kk,LOW);
  }
}
/***************************主函数******************************/
void loop()
{
  while(1)//采用震动开关触发,等待手摇棒触发
  {
    if (digitalRead(3)==0)
    {
delay(50); //延时,防抖动
//当手摇使得震动开关闭合，在D3口读震动开关数据，低电平则跳出死循环
      if (digitalRead(3)==0)
 break;
    }
  }
 delay(delayTime1);   //触发后延时，基本上做到了同步
 youth();              //显示‘少年’字样
 digitalWrite(3,HIGH);//把D3口写高，等待下一次手摇触发
//*******************************************************************
while(1) //采用震动开关触发,等待手摇棒触发
{
    if (digitalRead(3)==0)
    {
delay(50);
//当手摇使得震动开关闭合，在D3口读震动开关数据，低电平则跳出死循环
      if (digitalRead(3)==0)
 break;
  }
}
delay(delayTime1);    //触发后延时，基本上做到了同步
electronic();         //显示‘电子’字样
digitalWrite(3,HIGH); //把D3口写高，等待下一次手摇触发
//*******************************************************************
while(1) //采用震动开关触发,等待手摇棒触发
{
    if (digitalRead(3)==0)
    {
delay(50);
//当手摇使得震动开关闭合，在D3口读震动开关数据，低电平则跳出死循环
      if (digitalRead(3)==0)
 break;
  }
}
delay(delayTime1);    //触发后延时，基本上做到了同步
gaoshou();            //显示‘高手’字样
digitalWrite(3,HIGH); //把D3口写高，等待下一次手摇触发
}
复制代码
