一个不大不小刚刚好的电报

2018-05-052万
1973742214
1973742214

UID: 797

21文章
0粉丝
5获取喜欢
AI 快速预览详细 收起
本文介绍了一个基于UNO板的电报项目，通过五个按键实现莫尔斯电码的发送。项目包括硬件清单、最终效果展示以及详细的代码示例。适合初学者和STEM教育场景，帮助用户轻松实现电报功能。
一个不大不小刚刚好的电报图1

托版主大人的要求，终于在傍晚弄完了，

人脉资源消耗殆尽

先声明感谢：hnyzcj_安徽_教师、粤_Leo、pATAq-江苏；的帮助

视频如下哈.....


在上一个帖子（

https://mc.dfrobot.com.cn/forum.php?mod=viewthread&tid=36959

）中，我发现了一个重要问题

那就是，手势看不懂！手势看不懂！！手势看不懂！！！

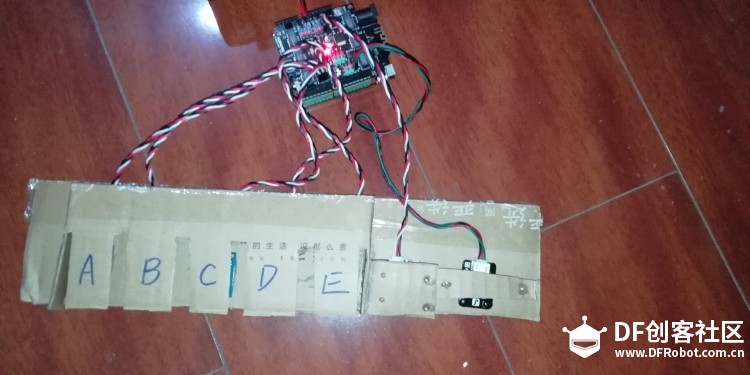

来来来，上图

一个不大不小刚刚好的电报图2一个不大不小刚刚好的电报图3一个不大不小刚刚好的电报图4


嗯，还不错，当然如果我有钱买3D打印机的话，我会弄一个比较好的包装

你们一定会有这样的疑问：为什么只有五个键？嗯，原因很简单，主要有以下几点：

1.没有辣么多的按钮
2.UNO板子犯贱贱的不让我弄一堆程序，程序一杂，就开始撒娇——灯连闪个不停，我熬不过它
3.红外遥控的话留给大家思考空间，自己回去试一试
  1. <div align="left">int input1=2;</div>

  2. int input2=3;

  3. int input3=4;

  4. int input4=5;

  5. int input5=6;

  6. int input6=7;

  7. int button=A0;

  8. void setup() {

  9.   pinMode(13,OUTPUT);// put your setup code here, to run once:

  10.   pinMode(input1,INPUT);

  11.   pinMode(input2,INPUT);

  12.   pinMode(input3,INPUT);

  13.   pinMode(input4,INPUT);

  14.   pinMode(input5,INPUT);

  15.   pinMode(input6,INPUT);

  16.   pinMode(button,OUTPUT);

  17. }

  18.

  19. void loop() {

  20.   int val1=digitalRead(input1);

  21.   int val2=digitalRead(input2);

  22.   int val3=digitalRead(input3);

  23.   int val4=digitalRead(input4);

  24.   int val5=digitalRead(input5);

  25.   int val6=digitalRead(input6);

  26.   if(val1==LOW){

  27.     printA();

  28.   }

  29.   if(val2==LOW){

  30.     printB();// put your main code here, to run repeatedly:

  31.   }

  32.   if(val3==LOW){

  33.     printC();// put your main code here, to run repeatedly:

  34.   }

  35.   if(val4==LOW){

  36.     printD();// put your main code here, to run repeatedly:

  37.   }

  38.   if(val5==LOW){

  39.     printE();

  40.   }

  41.   if(val5==LOW){

  42.     tone(button,1047);

  43.     delay(1000);

  44.   }else{

  45.     noTone(button);

  46.   }

  47.   }// put your main code here, to run repeatedly:

  48.   void printA(){

  49.     digitalWrite(13,HIGH);

  50.     delay(300);

  51.     digitalWrite(13,LOW);

  52.     delay(500);

  53.     digitalWrite(13,HIGH);

  54.     delay(1000);

  55.     digitalWrite(13,LOW);

  56. tone(button,1047);

  57. delay(1000);

  58. noTone(button);

  59. }

  60. void printB(){

  61.   digitalWrite(13,HIGH);

  62.     delay(1000);

  63.     digitalWrite(13,LOW);

  64.     delay(500);

  65.     digitalWrite(13,HIGH);

  66.     delay(300);

  67.     digitalWrite(13,LOW);

  68.     delay(500);

  69.     digitalWrite(13,HIGH);

  70.     delay(300);

  71.     digitalWrite(13,LOW);

  72.     delay(500);

  73.     digitalWrite(13,HIGH);

  74.     delay(300);

  75.     digitalWrite(13,LOW);

  76.     tone(button,1047);

  77.     delay(1000);

  78.     noTone(button);

  79. }

  80. void printC(){

  81.    digitalWrite(13,HIGH);

  82.     delay(1000);

  83.     digitalWrite(13,LOW);

  84.     delay(500);

  85.     digitalWrite(13,HIGH);

  86.     delay(300);

  87.     digitalWrite(13,LOW);

  88.     delay(500);

  89.     digitalWrite(13,HIGH);

  90.     delay(1000);

  91.     digitalWrite(13,LOW);

  92.     delay(500);

  93.     digitalWrite(13,HIGH);

  94.     delay(300);

  95.     digitalWrite(13,LOW);

  96.   tone(button,1047);

  97.   delay(1000);

  98.   noTone(button);

  99. }

  100. void printD(){

  101.   digitalWrite(13,HIGH);

  102.     delay(1000);

  103.     digitalWrite(13,LOW);

  104.     delay(500);

  105.     digitalWrite(13,HIGH);

  106.     delay(300);

  107.     digitalWrite(13,LOW);

  108.     delay(500);

  109.     digitalWrite(13,HIGH);

  110.     delay(300);

  111.     digitalWrite(13,LOW);

  112.     delay(500);

  113.   tone(button,1047);

  114.   delay(1000);

  115.   noTone(button);

  116. }

  117. void printE(){

  118.   digitalWrite(13,HIGH);

  119.     delay(300);

  120.     digitalWrite(13,LOW);

  121.     delay(500);

  122.     tone(button,1047);

  123.     delay(1000);

  124.     noTone(button);

  125. }

  126. void printF(){

  127.   digitalWrite(13,HIGH);

  128.     delay(300);

  129.     digitalWrite(13,LOW);

  130.     delay(500);

  131.     digitalWrite(13,HIGH);

  132.     delay(300);

  133.     digitalWrite(13,LOW);

  134.     delay(500);

  135.     digitalWrite(13,HIGH);

  136.     delay(1000);

  137.     digitalWrite(13,LOW);

  138.     delay(500);

  139.     digitalWrite(13,HIGH);

  140.     delay(300);

  141.     digitalWrite(13,LOW);

  142.     tone(button,1047);

  143.     delay(1000);

  144.     noTone(button);

  145. }

  146. void printG(){

  147.   digitalWrite(13,HIGH);

  148.     delay(1000);

  149.     digitalWrite(13,LOW);

  150.     delay(500);

  151.     digitalWrite(13,HIGH);

  152.     delay(1000);

  153.     digitalWrite(13,LOW);

  154.     delay(500);

  155.     digitalWrite(13,HIGH);

  156.     delay(300);

  157.     digitalWrite(13,LOW);

  158.     tone(button,1047);

  159.     delay(1000);

  160.     noTone(button);

  161. }

  162. void printH(){

  163.   digitalWrite(13,HIGH);

  164.     delay(300);

  165.     digitalWrite(13,LOW);

  166.     delay(500);

  167.      digitalWrite(13,HIGH);

  168.     delay(300);

  169.     digitalWrite(13,LOW);

  170.     delay(500);

  171.     digitalWrite(13,HIGH);

  172.     delay(300);

  173.     digitalWrite(13,LOW);

  174.     delay(500);

  175.     digitalWrite(13,HIGH);

  176.     delay(300);

  177.     digitalWrite(13,LOW);

  178.     tone(button,1047);

  179.     delay(1000);

  180.     noTone(button);

  181. }

  182. void printI(){

  183.   digitalWrite(13,HIGH);

  184.     delay(300);

  185.     digitalWrite(13,LOW);

  186.     delay(500);

  187.      digitalWrite(13,HIGH);

  188.     delay(300);

  189.     digitalWrite(13,LOW);

  190.     tone(button,1047);

  191.     delay(1000);

  192.     noTone(button);

  193. }

  194. void printJ(){

  195.   digitalWrite(13,HIGH);

  196.     delay(1000);

  197.     digitalWrite(13,LOW);

  198.     delay(500);

  199.      digitalWrite(13,HIGH);

  200.     delay(300);

  201.     digitalWrite(13,LOW);

  202.       digitalWrite(13,HIGH);

  203.     delay(1000);

  204.     digitalWrite(13,LOW);

  205.     delay(500);

  206.     tone(button,1047);

  207.     delay(1000);

  208.     noTone(button);

  209. }
复制代码

哈哈

程序是不是很杂（抽支烟）

其实就是将if语句活用了

这有个莫尔斯电报表，自己可以去对

一个不大不小刚刚好的电报图5

我的代码后面跟了几个备用的字母，但没有加进去，有兴趣的自己一加就可以了

that‘s all

我也希望你们的看法哦，速回！！！！

创作许可协议

本项目采用 None(不开放任何权利，保留所有权利) 进行许可。

其他主题Arduino

相关推荐

评论(3)
Ash1
Ash1
顶你起来~
1973742214
1973742214
作者
回复Ash1
成功上天
1973742214
1973742214
作者
加了打印的功能，不错
[mw_shl_code=cpp,true]int input1=2;
int input2=3;
int input3=4;
int input4=5;
int input5=6;
int input6=7;
int button=A0;
void setup() {
Serial.begin(9600);
pinMode(13,OUTPUT);// put your setup code here, to run once:
pinMode(input1,INPUT);
pinMode(input2,INPUT);
pinMode(input3,INPUT);
pinMode(input4,INPUT);
pinMode(input5,INPUT);
pinMode(input6,INPUT);
pinMode(button,OUTPUT);
}
void loop() {
int val1=digitalRead(input1);
int val2=digitalRead(input2);
int val3=digitalRead(input3);
int val4=digitalRead(input4);
int val5=digitalRead(input5);
int val6=digitalRead(input6);
if(val1==LOW){
printA();
Serial.print(".___");
Serial.println("A");
}
if(val2==LOW){
printB();
Serial.print("___...");
Serial.println("B");// put your main code here, to run repeatedly:
}
if(val3==LOW){
printC();
Serial.print("___.___.");
Serial.println("C");// put your main code here, to run repeatedly:
}
if(val4==LOW){
printD();
Serial.print("___..");
Serial.println("D");// put your main code here, to run repeatedly:
}
if(val5==LOW){
printE();
Serial.print("___");
Serial.println("E");
}
}// put your main code here, to run repeatedly:
void printA(){
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
tone(button,1047);
delay(100);
noTone(button);
}
void printB(){
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
tone(button,1047);
delay(100);
noTone(button);
}
void printC(){
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
tone(button,1047);
delay(100);
noTone(button);
}
void printD(){
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
tone(button,1047);
delay(100);
noTone(button);
}
void printE(){
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
tone(button,1047);
delay(100);
noTone(button);
}
void printF(){
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
tone(button,1047);
delay(100);
noTone(button);
}
void printG(){
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
tone(button,1047);
delay(100);
noTone(button);
}
void printH(){
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
tone(button,1047);
delay(100);
noTone(button);
}
void printI(){
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
tone(button,1047);
delay(100);
noTone(button);
}
void printJ(){
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
digitalWrite(13,HIGH);
delay(300);
digitalWrite(13,LOW);
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(500);
tone(button,1047);
delay(100);
noTone(button);
}
[/mw_shl_code]
来个人给我回复下呀，板凳太凉........
1973742214
1973742214
作者
摩尔斯电报表中有一部分模糊，自己上网搜哈
沙发上护肤
加油
