Banana Pi BPI-M2 Pro

Banana Pi BPI-M2 Pro是Banana Pi公司于2021年推出的下一代单板机。它采用Amlogic S905X3四核Cortex-A55 (2.0 XXGHz)处理器。板载2GB LPDDR4内存和16GB EMMC存储，支持2个USB 3.0接口，1个千兆网口。板载RT8821CU wifi&BT。1 HDMI输出 905X3是晶晨半导体旗下最新的8K智能家庭影音芯片，采用四颗64位ARM A55架构 CPU芯片，集成G31图形处理器，支持8K视频解码和8K视频输出，运行开放的安卓9.0系统和Linux系统。

BPI-M2 Pro与[url=]香蕉派 BPI-M2+[/url] 一样大小，接口也一样，所以可以使用BPI-M2+的外壳。

主要特点:

Amlogic S905X3 四核Cortex-A55 (2.0xxGHz)处理器
Mali-G31 GPU图形处理器
2GB LPDDR4内存
16GB eMMC 板载存储.
板载RT8821CU wifi&BT
2 USB 3.0 端口
1 GbE 千兆网口
HDMI 输出
硬件信息
香蕉派BPI-M2 Pro 与[url=]香蕉派 BPI-M5[/url] 一样采用Amlogic S905x3芯片方案，但在尺寸与接口上完全与[url=]香蕉派 BPI-M2+[/url]一致，用BPI-M2+做产品的客户，可以直接升级替换。

Email: wendysong@banana-pi.com

QQ: 721543336

接口参数：[/table][table=98%,rgb(248, 249, 250)]
Banana pi BPI-M2 Pro 硬件规格
CPUAmlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
GPUMali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory2 GB LPDDR4
StorageMicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network10/100/1000 Mbit/s Ethernet
Wifi&BTDual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
Video Output(s)1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output(s)1 x HDMI digital output
USB ports2x USB 3.0 host ports, 1x micro USB OTG port
GPIO40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
SwitchesReset, Power and U-boot
LEDPower Status and Activity status
Power Source5 volt @3A via DC port
Size & Weight65mm×65mm, 58g
OSAndroid and Linux香蕉派BPI-M2 Pro ,M5, Odroid C4 和 Raspberry Pi 4硬件规格比较表

BPI-M2 Pro VS BPI-M5 VS Odroid C4 VS RPI 4
	[url=]香蕉派 BPI-M2 Pro[/url]	[url=]香蕉派 BPI-M5[/url]	Odroid C4	树莓派 4
Processor	Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz	Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz	Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz	Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
GPU	Mali-G31 MP2 GPU	Mali-G31 MP2 GPU	Mali-G31 MP2 GPU	Broadcom VideoCore VI
RAM	2GB LPDDR4	4GB LPDDR4	DDR4 4GiB with 32-bit bus width	2GB, 4GB or 8GB LPDDR4-3200 SDRAM
Storage	micro SD card slot & 16GB eMMC flash on board	micro SD card slot & 16GB eMMC flash on board	micro SD card slot , eMMC connector for option	micro SD card slot, non EMMC
Network	1 GbE ,WiFi&BT5.0 onbard	GbE ,Optional WiFi USB dongle	GbE	GbE, 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
Video Output	1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)	1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)	1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)	2 × micro-HDMI 2.0
Audio Output	1 x HDMI digital output	3.5mm jack and 1 x HDMI digital output	Optional SPDIF optical output	3.5 mm analogue audio-video jack
DSI	N/A	N/A	N/A	2-lane MIPI DSI display port
CSI	N/A	N/A	N/A	2-lane MIPI CSI camera port
USB	USB 3.0 x 2 1 Micro USB 2.0	USB 3.0 x 4 TYPE C	USB 3.0 x 4, 1 x Micro USB 2.0 port (OTG)	2 USB 3.0 ports; 2 USB 2.0 ports;
Power	5 volt @3A via DC power	5 volt @3A via Micro USB (TYPE C)	1 x DC power jack (Outer diameter : 5.5mm, inner diameter : 2.1mm)	5V DC via USB-C connector (minimum 3A*)
IR	Yes	Yes	Yes	N/A
GPIO	40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND).	40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND).	40 x GPIO pins	40-pin GPIO header, populated
Button	Reset, user and U-boot	Reset, user and U-boot	N/A	N/A
LED	Power Status and Activity status	Power Status and Activity status	Power Status and Activity status	Power Status and Activity status
Dimensions & weight	65mm x 65mm,58g	85mm x 56mm, 48g	85mm x 56mm 59g	88 mm × 58 mm, 46 g
System Support	Linux & Android	Linux & Android	Linux & Android	Linux & Android

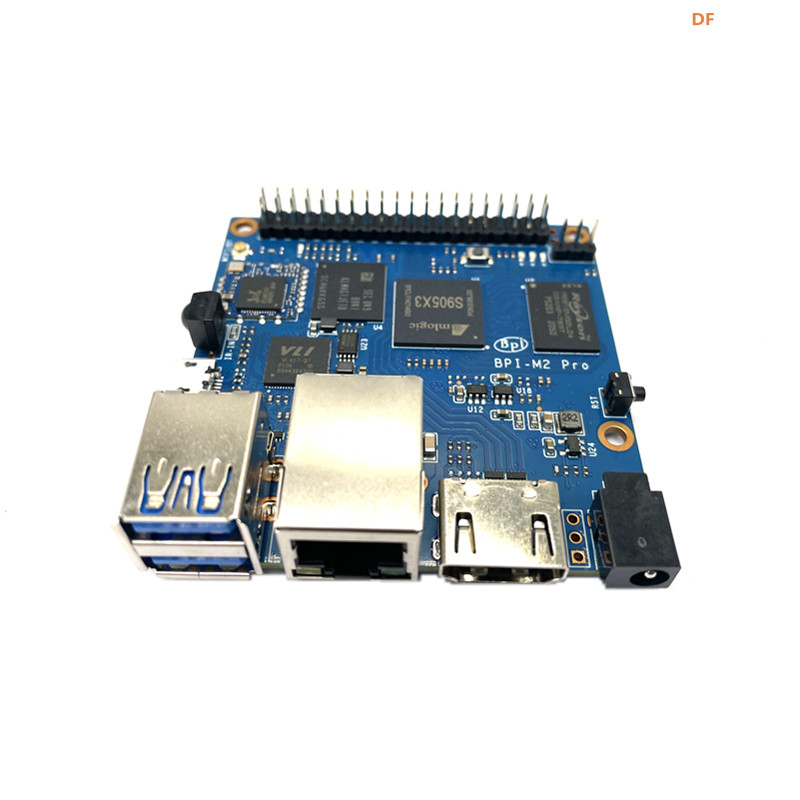

4 800X800.jpg (93.1 KB, 下载次数: 2937)
