💡 解决 ESP32 上传温湿度数据到阿里云的问题 🛠️

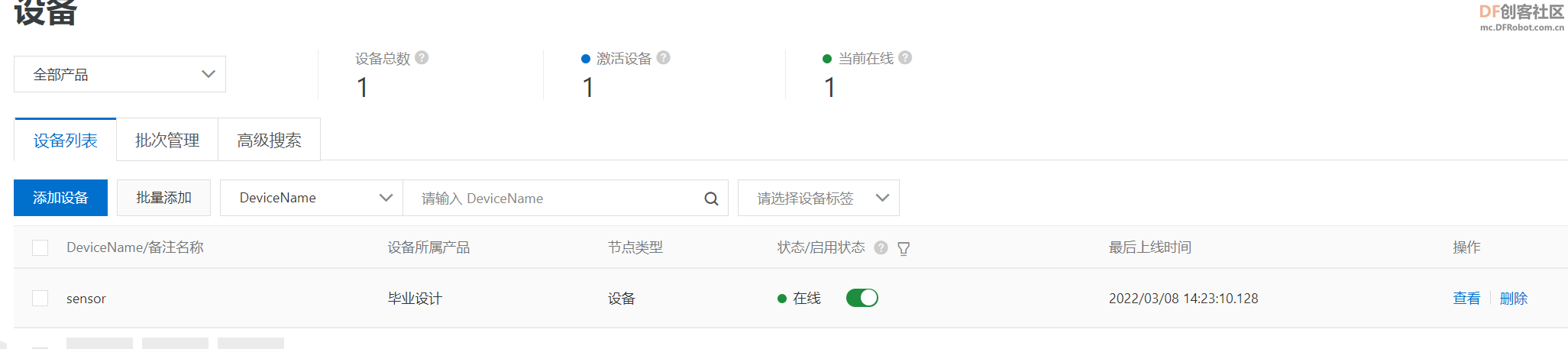

esp32连接上了阿里云但是就是温湿度传不进去

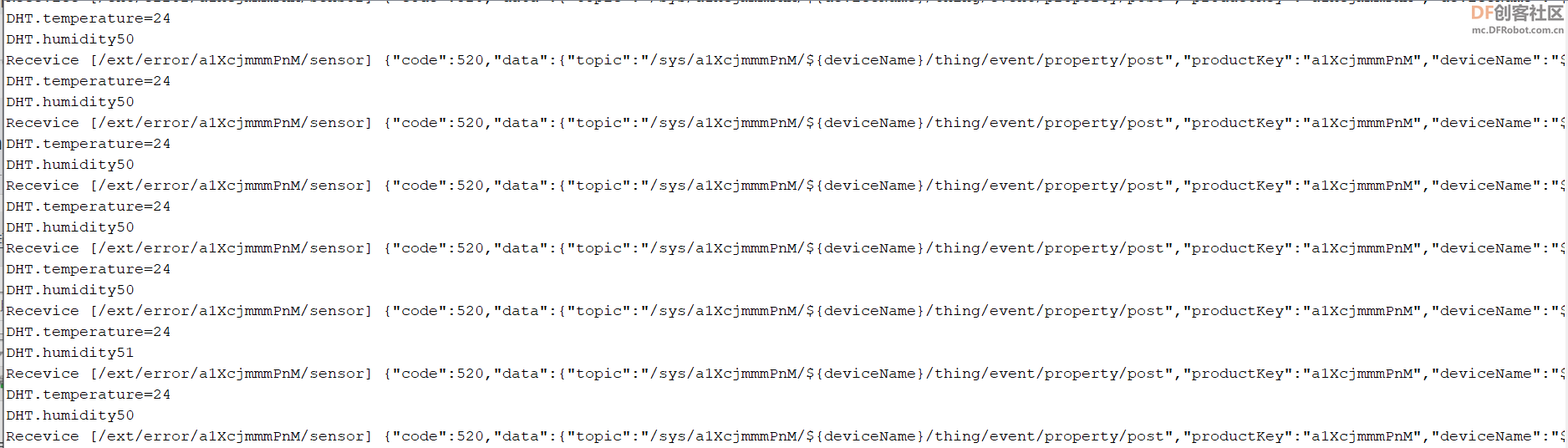

温室读获取是正常的串口显示的是这种东西，应该是传输的问题

/*这是我的代码*/麻烦大佬看看下，我用的是商城给的库
#include <WiFi.h>
#include <PubSubClient.h>
#include <ArduinoJson.h>
#include "DFRobot_Aliyun.h"
#include "DFRobot_DHT11.h"

#define DHT11_PIN  14

/*配置WIFI名和密码*/
const char * WIFI_SSID    = "fdb";
const char * WIFI_PASSWORD = "331700918";

/*配置设备证书信息*/
String ProductKey = "a1XcjmmmPnM";
String ClientId = "12345";
String DeviceName = "sensor";
String DeviceSecret = "5a5a9134ebb440bec294f78986a63f27";

/*配置域名和端口号*/
String ALIYUN_SERVER = "iot-as-mqtt.cn-shanghai.aliyuncs.com";
uint16_t PORT = 1883;

/*需要操作的产品标识符(温度和湿度两个标识符)*/
String TempIdentifier = "temp_1";
String HumiIdentifier = "Humi_1";

/*需要上报和订阅的两个TOPIC*/
const char * subTopic = "/sys/a1XcjmmmPnM/${deviceName}/thing/service/property/set";//****set
const char * pubTopic = "/sys/a1XcjmmmPnM/${deviceName}/thing/event/property/post";//******post

DFRobot_Aliyun myAliyun;
WiFiClient espClient;
PubSubClient client(espClient);
DFRobot_DHT11 DHT;

void connectWiFi(){
  Serial.print("Connecting to ");
  Serial.println(WIFI_SSID);
  WiFi.begin(WIFI_SSID,WIFI_PASSWORD);
  while(WiFi.status() != WL_CONNECTED){
delay(500);
Serial.print(".");
  }
  Serial.println();
  Serial.println("WiFi connected");
  Serial.print("IP Adderss: ");
  Serial.println(WiFi.localIP());
}

void callback(char * topic, byte * payload, unsigned int len){
  Serial.print("Recevice [");
  Serial.print(topic);
  Serial.print("] ");
  for (int i = 0; i < len; i++){
Serial.print((char)payload);
  }
  Serial.println();
}

void ConnectAliyun(){
  while(!client.connected()){
Serial.print("Attempting MQTT connection...");
/*根据自动计算的用户名和密码连接到Alinyun的设备，不需要更改*/
if(client.connect(myAliyun.client_id,myAliyun.username,myAliyun.password)){
   Serial.println("connected");
   client.subscribe(subTopic);
}else{
   Serial.print("failed, rc=");
   Serial.print(client.state());
   Serial.println(" try again in 5 seconds");
   delay(5000);
}
  }
}
void setup(){
  Serial.begin(115200);

  /*连接WIFI*/
  connectWiFi();

  /*初始化Alinyun的配置，可自动计算用户名和密码*/
  myAliyun.init(ALIYUN_SERVER,ProductKey,ClientId,DeviceName,DeviceSecret);

  client.setServer(myAliyun.mqtt_server,PORT);

  /*设置回调函数，当收到订阅信息时会执行回调函数*/
  client.setCallback(callback);

  /*连接到Aliyun*/
  ConnectAliyun();
}

uint8_t tempTime = 0;
void loop(){
  if(!client.connected()){
ConnectAliyun();
  }
  /*一分钟上报两次温湿度信息*/
  if(tempTime > 10){
tempTime = 0;
DHT.read(DHT11_PIN);
Serial.print("DHT.temperature=");
Serial.println(DHT.temperature);
Serial.print("DHT.humidity");
Serial.println(DHT.humidity);
client.publish(pubTopic,("{\"id\":"+ClientId+",\"params\":{\""+TempIdentifier+"\":"+DHT.temperature+",\""+HumiIdentifier+"\":"+DHT.humidity+"},\"method\":\"thing.event.property.post\"}").c_str());
  }else{
tempTime++;
delay(500);
  }
  client.loop();
}

Arduino


ESP32 上传温湿度数据到阿里云失败 | DF创客社区_image_3.webp


ESP32 上传温湿度数据到阿里云失败 | DF创客社区_image_6.webp

评论(5)

纯鹿人

你好，在吗，我想请教一下为啥我的激活不了设备o(╥﹏╥)o

hellonhy

看看你定义的标识符数据类型

星辰大海：//。，

看一下阿里云的日志服务，到底是阿里云物模型解析不到，还是没有发上去

njwy1978

我也是存在这个问题。阿里云IoT套件能够顺利的连接WiFi，但Web界面不能实时显示传送的温湿度数据。即使按照如下修改[backcolor=rgb(250, 250, 250)][font=微软雅黑]上报和订阅的两个TOPIC：[/font][/backcolor]
[backcolor=rgb(250, 250, 250)][font=微软雅黑]const char * subTopic = "/sys/a1XcjmmmPnM/sensor/thing/service/property/set";//****set[/font][/backcolor]
[backcolor=rgb(250, 250, 250)][font=微软雅黑]const char * pubTopic = "/sys/a1XcjmmmPnM/sensor/thing/event/property/post";//******post[/font][/backcolor][backcolor=rgb(250, 250, 250)][font=微软雅黑]依然不能够实时在阿里云的Web界面上实时显示曲线。[/font][/backcolor]不知道怎么解决。

muzyli

把需要上报和订阅的两个TOPIC改下：
const char * subTopic = "/sys/a1XcjmmmPnM/sensor/thing/service/property/set";//****set
const char * pubTopic = "/sys/a1XcjmmmPnM/sensor/thing/event/property/post";//******post
