【Arduino 动手做】产生 15 种不同运动效果的无用盒子
2025-06-121416
AI 快速预览详细
这个项目是一个使用Arduino开发板制作的无用盒子，能够产生15种不同的运动效果。通过USB电源供电，防止编程时伺服电机通电，确保安全可靠。电路图和代码经过调整，适用于UNO开发板。适合零基础新手尝试，无需复杂技能即可完成。
|

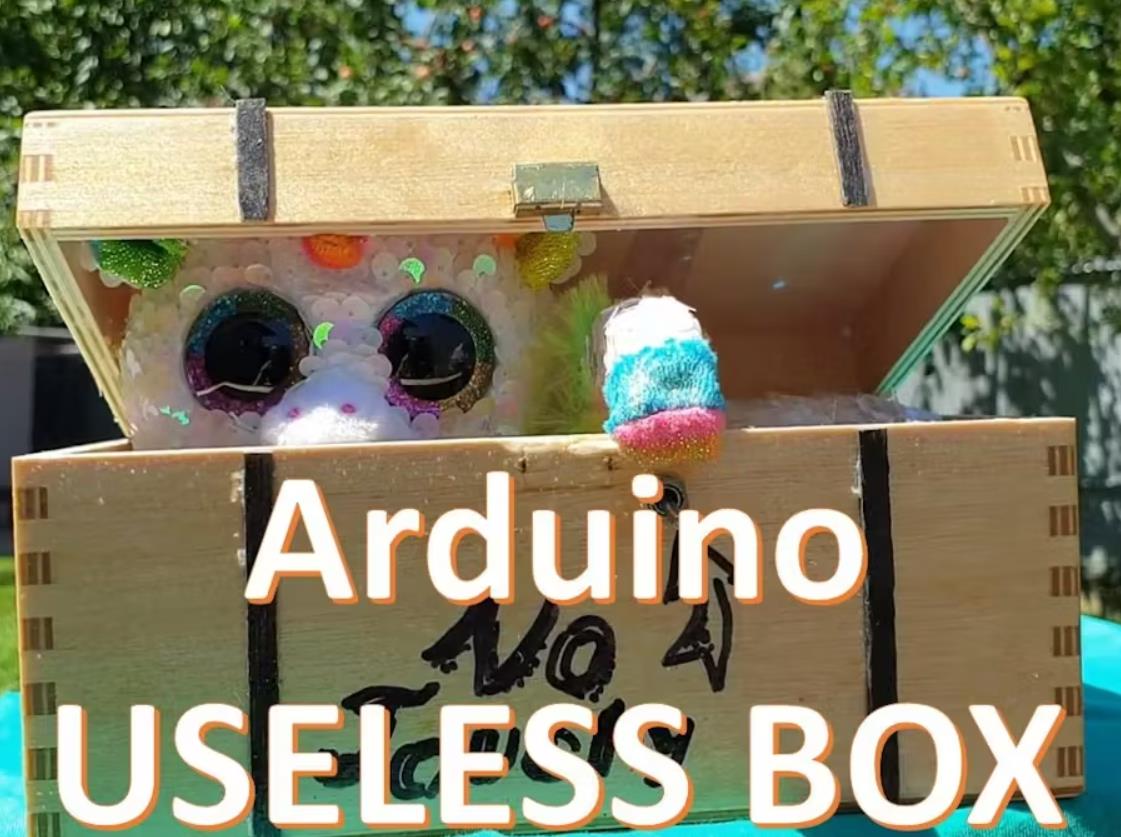

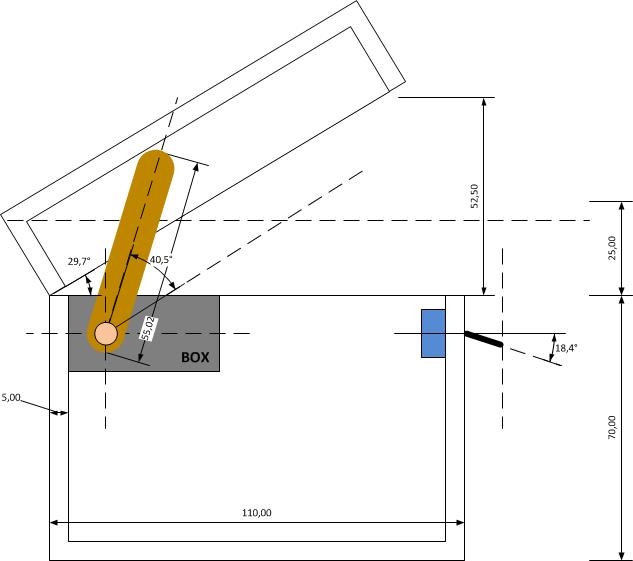

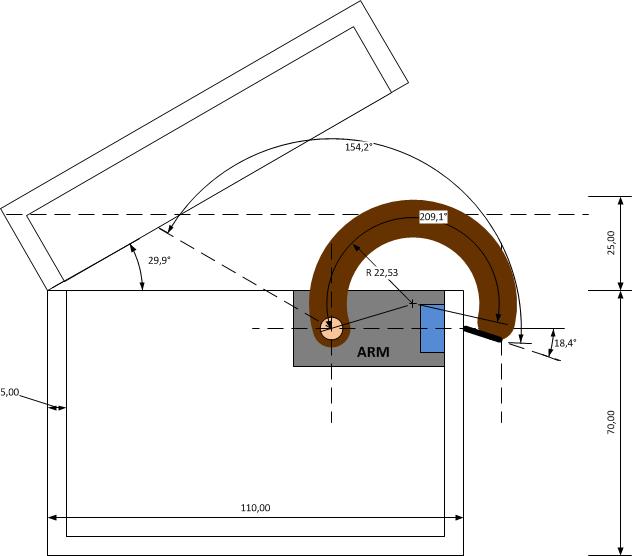

一台按下开关的无用机器。它会自行关闭，并产生 15 种不同的运动效果。 又一个没用的盒子。我在网上看到它，就决定自己做一个。做起来和玩起来都很有趣。 旧代码很容易找到，但有一些对我来说有用的小改进。非常感谢编写代码的人，他真的懂乐趣。这是我画的几张图。虽然构造完全可以自定义，但我还是把它们贴出来给感兴趣的人看，因为我找不到类似的入门资料。 电路图也根据我的喜好做了一些调整。我选择使用 USB 电源（手机充电器或移动电源），而不是电池，而是通过一个二极管连接到 5V 引脚。这样可以防止在将开发板插入计算机 USB 进行编程时伺服电机通电，因为电流消耗过高。 电气图 电路图根据我的喜好做了一些调整。我选择使用 USB 电源（手机充电器或移动电源），而不是电池，而是通过一个二极管连接到 5V 引脚。这样可以防止在将开发板插入计算机 USB 进行编程时伺服电机通电，因为电流消耗过高。 也适用于 UNO，无需任何改动。 上传时只需在 Arduino 编辑器中选择合适的开发板即可。 旧代码很容易找到，但有一些对我来说有用的小改进。非常感谢编写代码的人，他真的很有趣。 在 YouTube 上发表评论或给我发送电子邮件（YO3RAK at gmail.com ）以获取更多信息，因为该平台不会通知我新的评论。      |
【Arduino 动手做】它会自行关闭并产生 15 种不同运动效果的无用盒子
项目链接：https://www.hackster.io/viorelracoviteanu/useless-box-with-arduino-d67b47
项目作者：维奥雷尔拉科维泰亚努
项目视频 ：https://www.youtube.com/watch?v=QCohS-ENN_Q
项目代码：https://www.hackster.io/code_files/463257/download
[code]#include
Servo handServo;
Servo boxServo;
int switchStatus=0, action=1, vot, randNumber=0;
const int ledPin = 13;
const int frontSwitchPin = 2;
const int handServoPin = 5;
const int boxServoPin = 6;
void setup()
{
Serial.begin(9600);
pinMode(ledPin, OUTPUT);
handServo.attach(handServoPin);
boxServo.attach(boxServoPin);
handServo.write(180);
boxServo.write(70);
//randomSeed(analogRead(0));
}
void loop()
{
switchStatus = digitalRead(frontSwitchPin);
//action = random(1,16);
if (switchStatus == LOW){
if (action == 1)
{
Serial.println("Action 1");
for (int i = 70; i <= 110; i++)
{
boxServo.write(i);
delay(20);
}
for (int i = 180; i >= 35; i--)
{
handServo.write(i);
delay(20);
}
delay(1000);
handServo.write(26);
delay(200);
for (int i = 26; i <=180; i++)
{
handServo.write(i);
delay(20);
}
for (int i = 110; i >= 70; i--)
{
boxServo.write(i);
delay(20);
}
action++;
}
else if (action == 2)
{
Serial.println("Action 2");
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
delay(550);
handServo.write(26);
delay(1000);
handServo.write(180);
delay(550);
boxServo.write(70);
delay(1500);
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
delay(3000);
boxServo.write(70);
action++;
}
else if (action == 3)
{
Serial.println("Action 3");
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
delay(1000);
boxServo.write(70);
delay(2000);
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
handServo.write(26);
delay(650);
handServo.write(180);
delay(500);
boxServo.write(70);
action++;
}
else if (action == 4)
{
Serial.println("Action 4");
for (int i = 70; i <= 110; i++)
{
boxServo.write(i);
delay(20);
}
for (int i = 180; i >= 35; i--)
{
handServo.write(i);
delay(20);
}
delay(2000);
handServo.write(26);
delay(200);
handServo.write(180);
delay(400);
boxServo.write(70);
action++;
}
else if (action == 5)
{
Serial.println("Action 5");
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
delay(2000);
handServo.write(65);
delay(550);
handServo.write(40);
delay(200);
handServo.write(65);
delay(200);
handServo.write(40);
delay(200);
handServo.write(65);
delay(200);
handServo.write(40);
delay(200);
handServo.write(65);
delay(200);
handServo.write(40);
delay(200);
handServo.write(65);
delay(200);
handServo.write(40);
delay(200);
handServo.write(65);
delay(2000);
handServo.write(26);
delay(400);
handServo.write(180);
delay(400);
boxServo.write(70);
action++;
}
else if (action == 6)
{
Serial.println("Action 6");
for (int i = 70; i <110; i++)
{
boxServo.write(i);
delay(20);
}
delay(1000);
for (int i = 0; i < 12; i++)
{
for (int j = 70; j <= 110; j++){
boxServo.write(j);
delay(6);
}
delay(200);
}
for (int i = 180; i >= 35; i--)
{
handServo.write(i);
delay(30);
}
handServo.write(26);
delay(400);
handServo.write(180);
delay(400);
boxServo.write(70);
delay(1500);
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
delay(3000);
boxServo.write(70);
action++;
}
else if (action == 7)
{
Serial.println("Action 7");
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
delay(400);
handServo.write(26);
delay(1000);
for (int i = 0; i < 6; i++)
{
for (int j = 70; j <= 110; j++){
boxServo.write(j);
delay(6);
}
delay(200);
}
delay(500);
handServo.write(180);
delay(400);
boxServo.write(70);
action++;
}
else if (action == 8)
{
Serial.println("Action 8");
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
handServo.write(26);
delay(2000);
for (int i = 0; i < 7; i++)
{
handServo.write(75);
delay(100);
handServo.write(40);
delay(100);
}
delay(500);
handServo.write(180);
delay(1000);
boxServo.write(70);
action++;
}
else if (action == 9)
{
Serial.println("Action 9");
for (int i = 70; i <= 105; i++){
boxServo.write(i);
delay(6);
}
delay(2000);
boxServo.write(110);
for (int i = 180; i >=35; i--)
{
handServo.write(i);
delay(40);
}
delay(500);
handServo.write(26);
delay(200);
for (int i = 26; i <=180; i++)
{
handServo.write(i);
delay(40);
}
boxServo.write(70);
delay(2000);
boxServo.write(100);
delay(3000);
boxServo.write(70);
action++;
}
else if (action == 10)
{
Serial.println("Action 10");
for (int i = 70; i <= 105; i++)
{
boxServo.write(i);
delay(100);
}
delay(1000);
for (int i = 0; i < 10; i++)
{
for (int j = 70; j <= 100; j++){
boxServo.write(j);
delay(6);
}
delay(100);
}
boxServo.write(110);
delay(100);
handServo.write(26);
delay(650);
handServo.write(180);
delay(400);
boxServo.write(70);
action++;
}
else if (action == 11)
{
Serial.println("Action 11");
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
handServo.write(26);
delay(2000);
for (int i = 0; i < 3; i++)
{
handServo.write(65);
delay(200);
handServo.write(40);
delay(200);
}
delay(1500);
handServo.write(180);
delay(400);
boxServo.write(70);
delay(1500);
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
handServo.write(26);
delay(3000);
handServo.write(180);
delay(400);
boxServo.write(70);
action++;
}
else if (action == 12)
{
Serial.println("Action 12");
for (int i = 70; i <= 110; i++)
{
boxServo.write(i);
delay(50);
}
delay(1000);
for (int i = 180; i >= 26; i--)
{
handServo.write(i);
delay(50);
}
delay(2000);
handServo.write(26);
delay(200);
handServo.write(180);
delay(400);
boxServo.write(70);
action++;
}
else if (action == 13)
{
Serial.println("Action 13");
for (int i = 70; i <= 110; i++){
boxServo.write(i);
delay(6);
}
delay(2000);
for (int i = 180; i >= 60; i--)
{
handServo.write(i);
delay(40);
}
for (int i = 0; i < 3; i++)
{
handServo.write(60);
delay(200);
handServo.write(40);
delay(800);
}
handServo.write(26);
delay(2000);
handServo.write(180);
delay(500);
boxServo.write(70);
action++;
}
else if (action == 14)
{
Serial.println("Action 14");
for (int i = 70; i <= 105; i++){
boxServo.write(i);
delay(6);
}
delay(4000);
boxServo.write(110);
handServo.write(26);
delay(650);
handServo.write(180);
delay(500);
boxServo.write(100);
delay(4000);
boxServo.write(70);
action++;
}
else if (action == 15)
{
Serial.println("Action 15");
for (int i = 70; i <= 105; i++){
boxServo.write(i);
delay(6);
}
delay(1000);
for (int i = 0; i < 3; i++)
{
for (int j = 70; j <= 105; j++){
boxServo.write(j);
delay(50);
}
for (int j = 105; j >= 70; j--)
{
boxServo.write(j);
delay(50);
}
}
for (int j = 70; j <= 110; j++){
boxServo.write(j);
delay(50);
}
for (int i = 180; i >= 35; i--)
{
handServo.write(i);
delay(40);
}
delay(1000);
handServo.write(26);
delay(400);
handServo.write(180);
delay(400);
boxServo.write(70);
action = 1;
}
}
}[/code]
