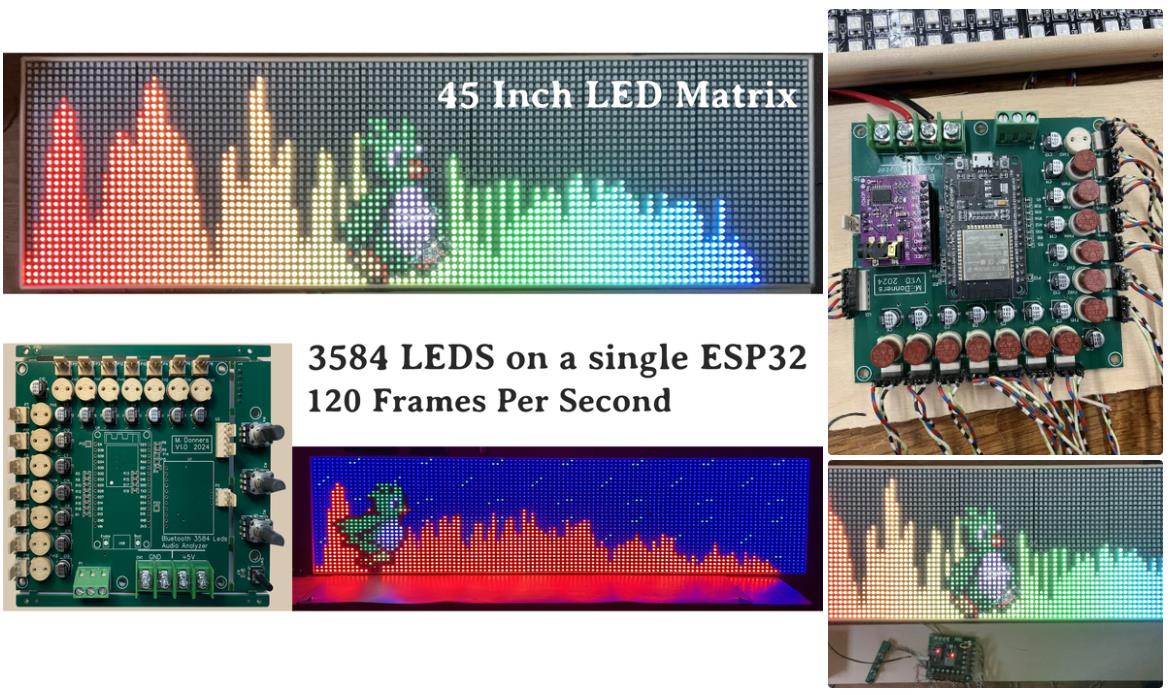

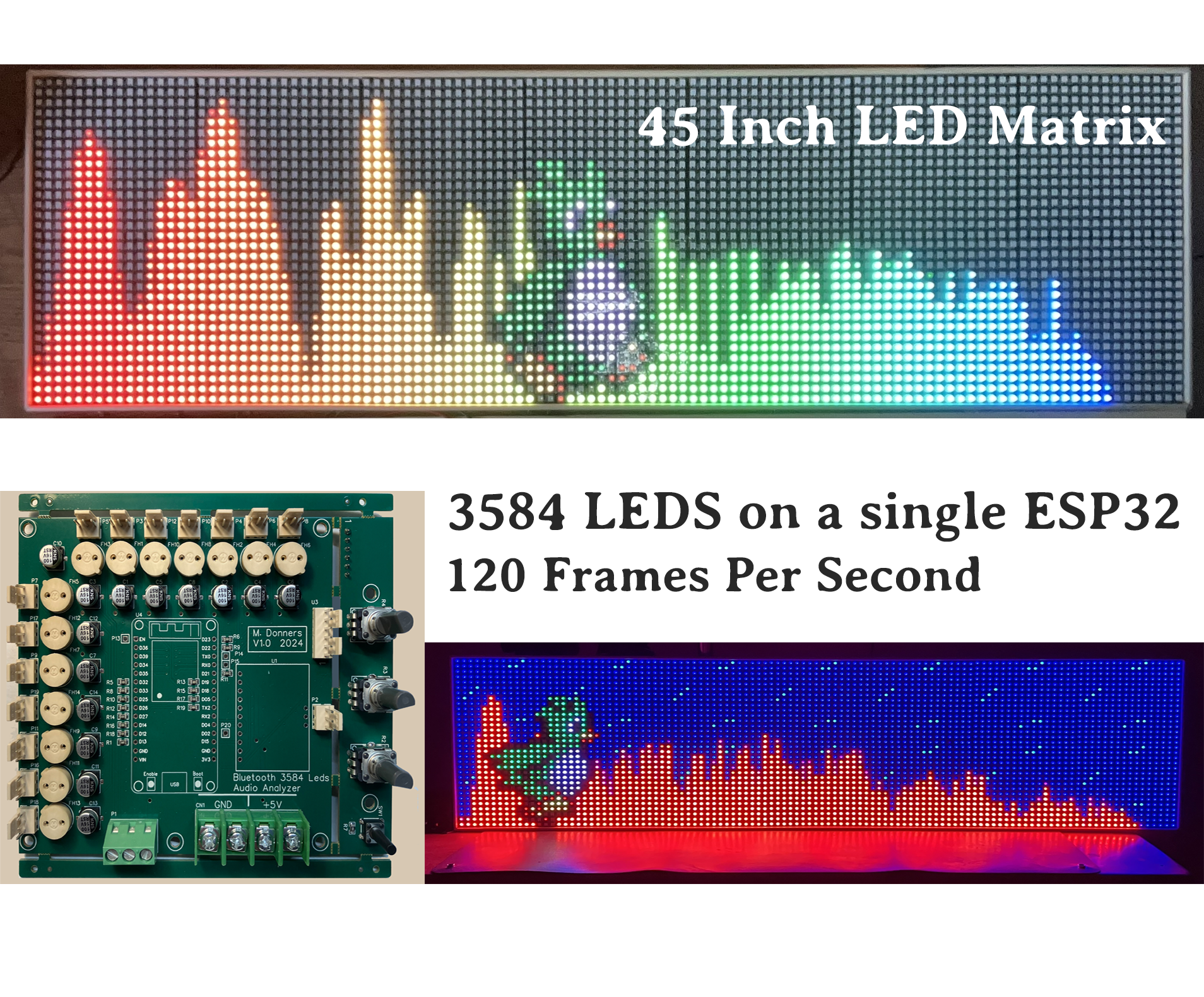

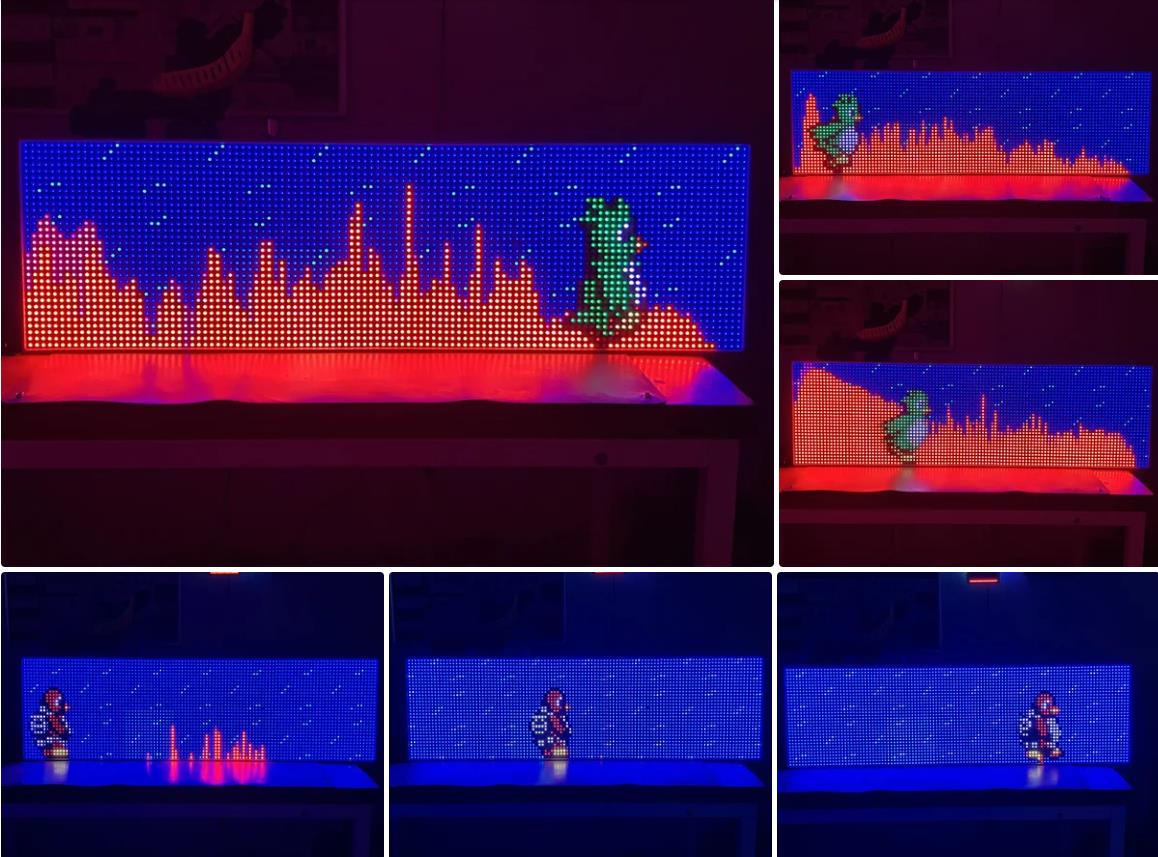

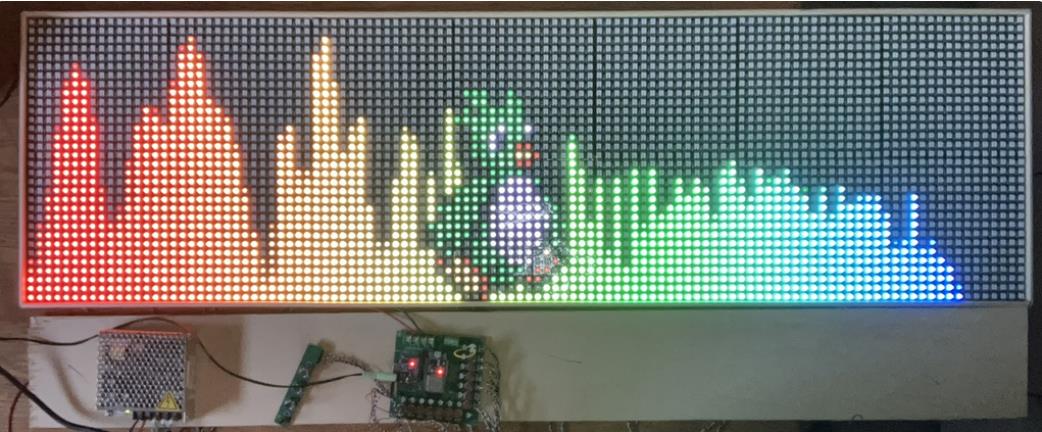

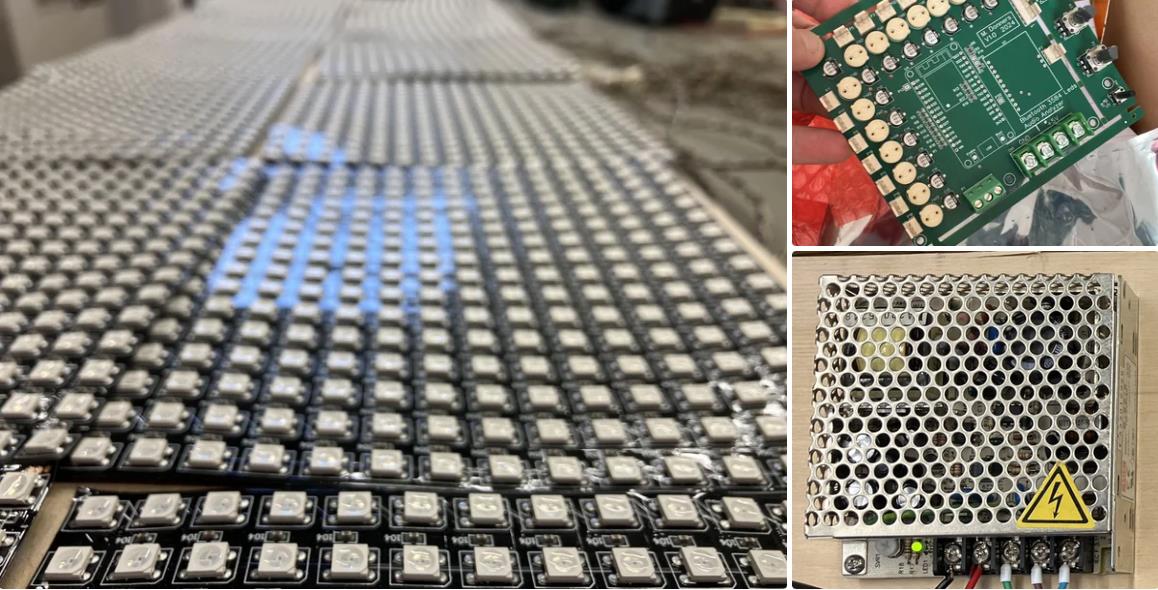

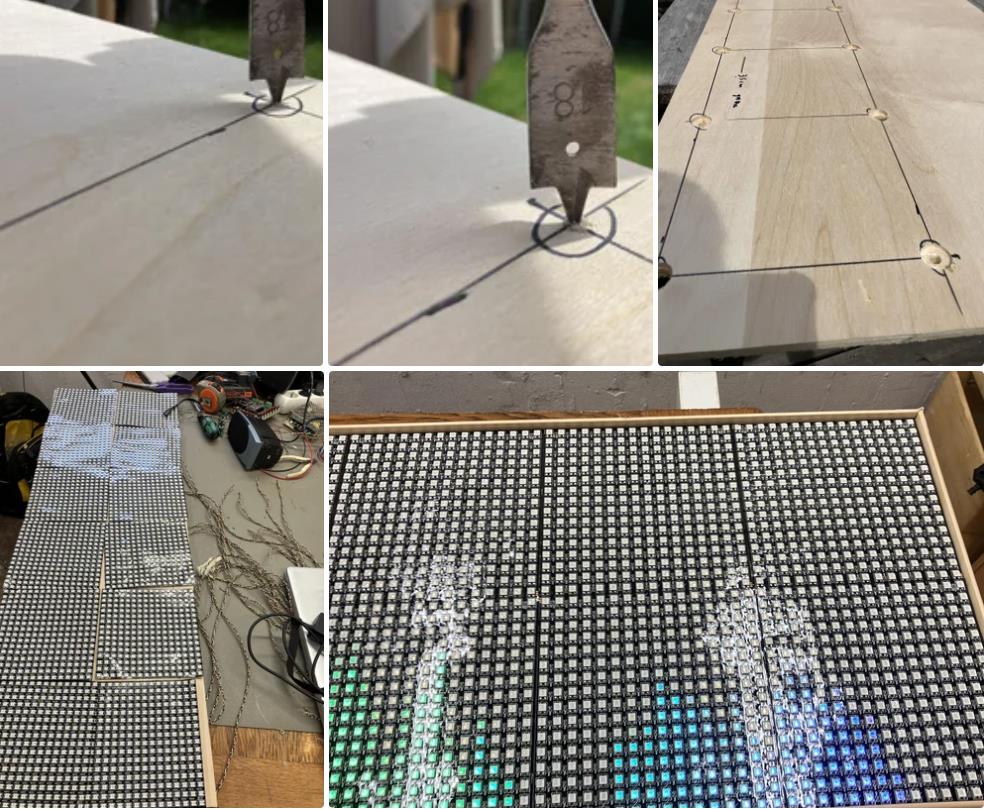

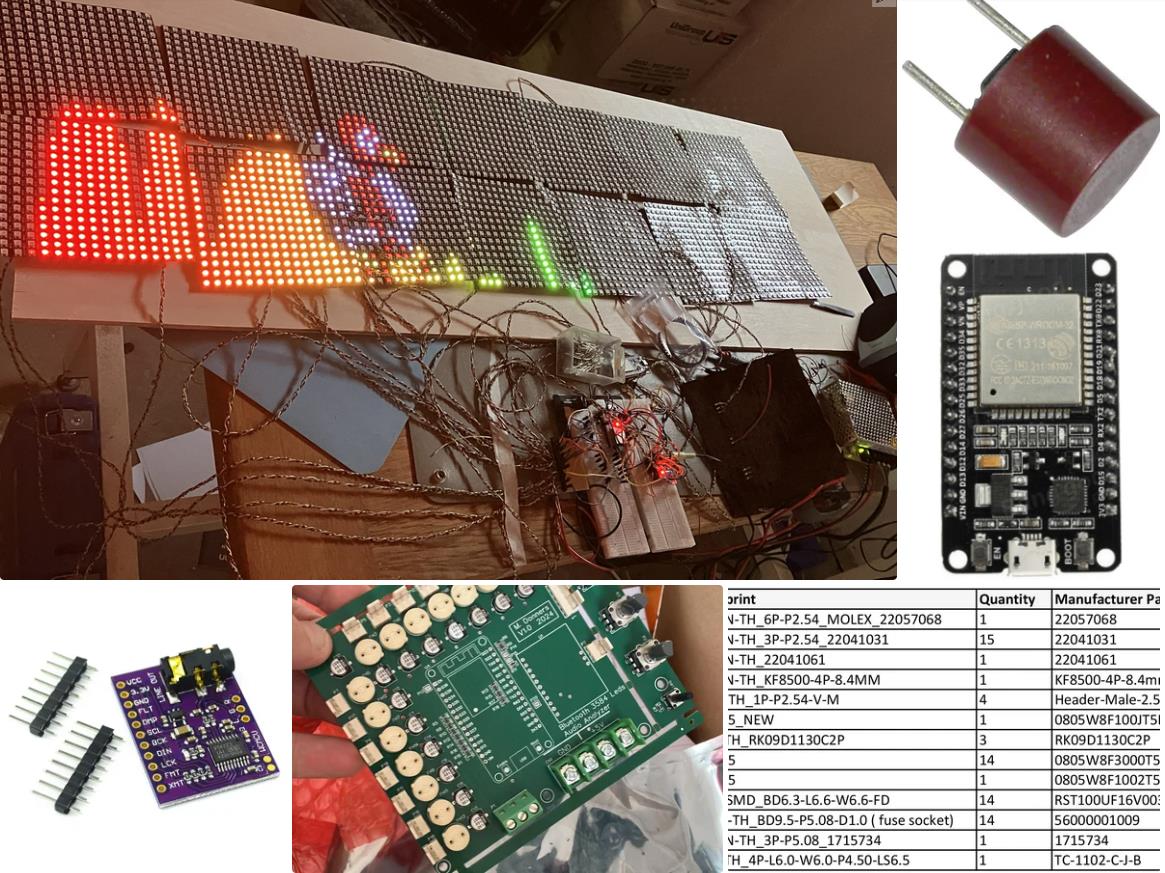

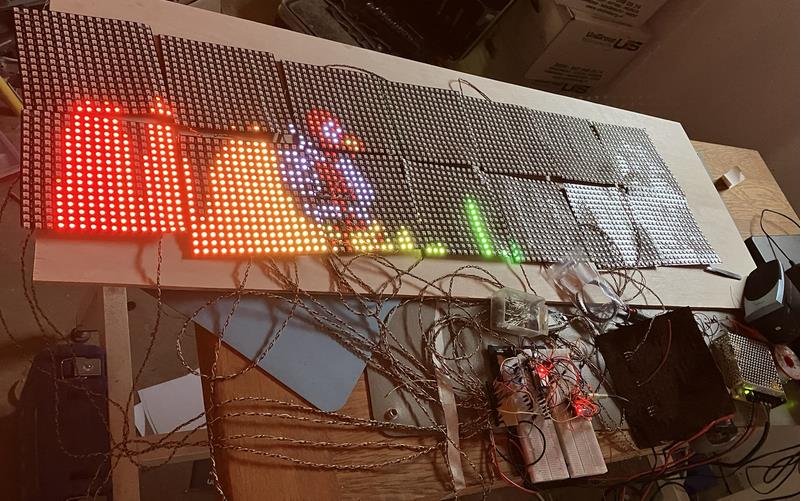

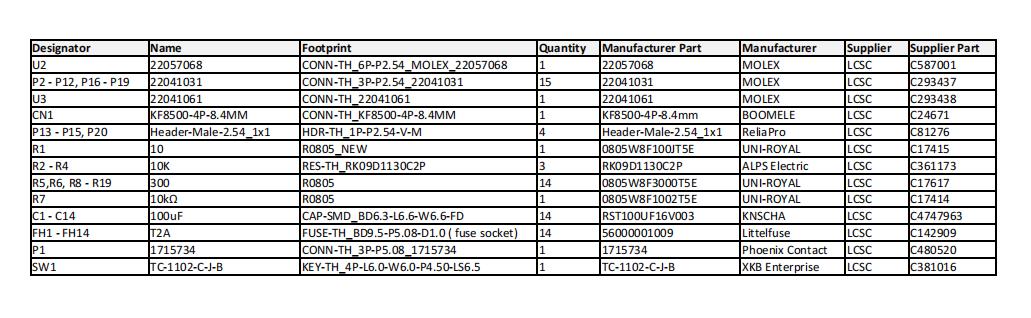

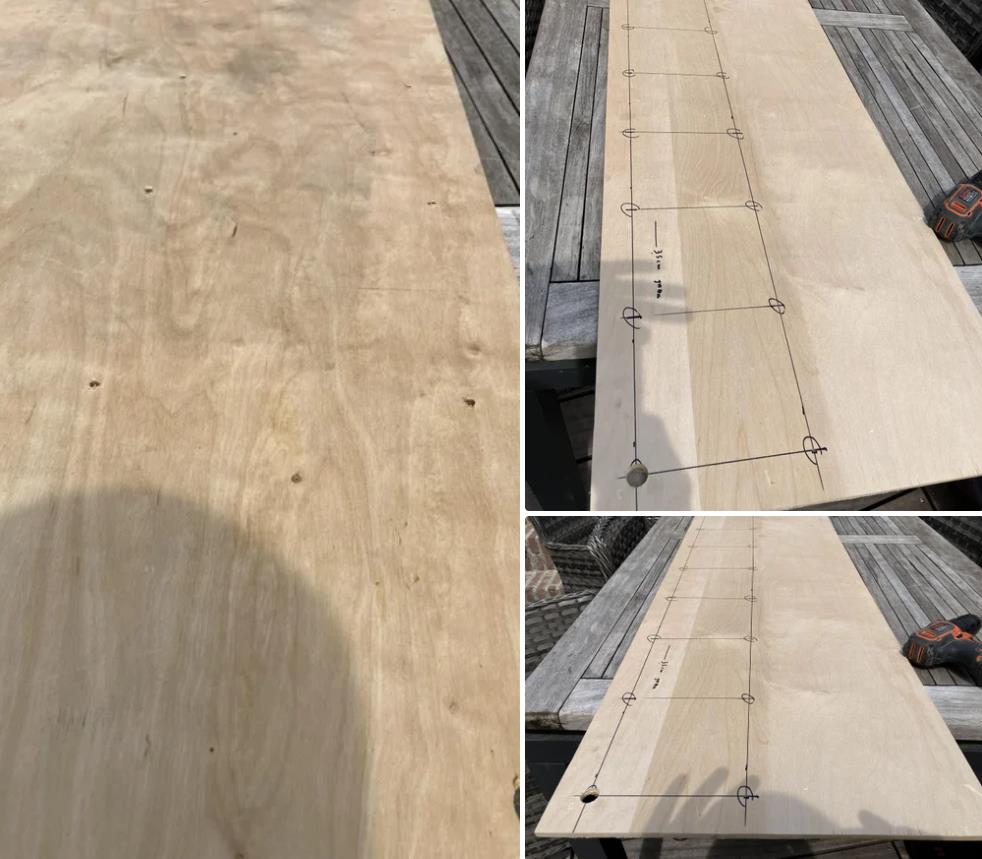

【Arduino 动手做】Fast Audio 快速音频频谱分析仪

【Arduino 动手做】Fast Audio 快速音频频谱分析仪
项目链接：https://www.instructables.com/Fast-Audio-Spectrum-Analyzer/
项目作者：emdee401
项目视频：https://www.youtube.com/watch?v=C-ics1zhJkE
项目代码：https://github.com/donnersm/BluetoothAnalyzer
Antti Yliniemi 编写了原始代码并允许我使用和调整它。
https://github.com/yliniemi/bluetooth-spectrum-analyzer
https://www.youtube.com/@acidangel162
Antti 使用了 Yves Bazin 编写的 Led 驱动器
https://github.com/hpwit/I2SClocklessLedDriver
https://www.youtube.com/@TekWit

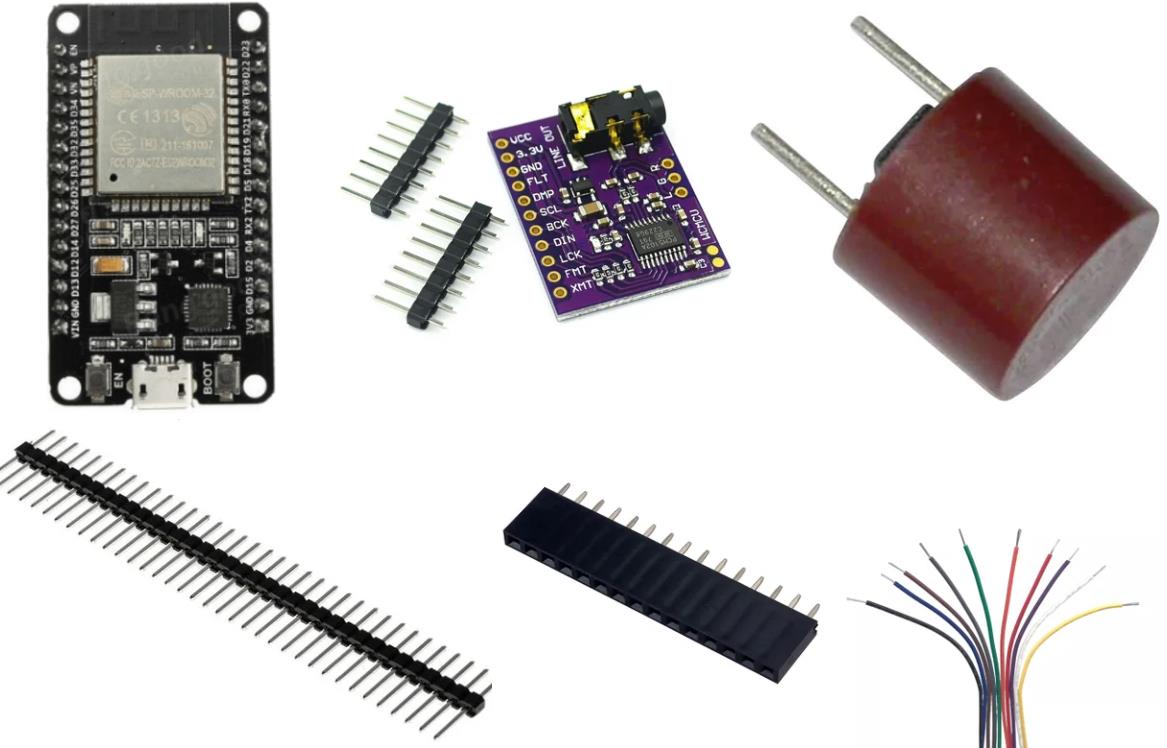

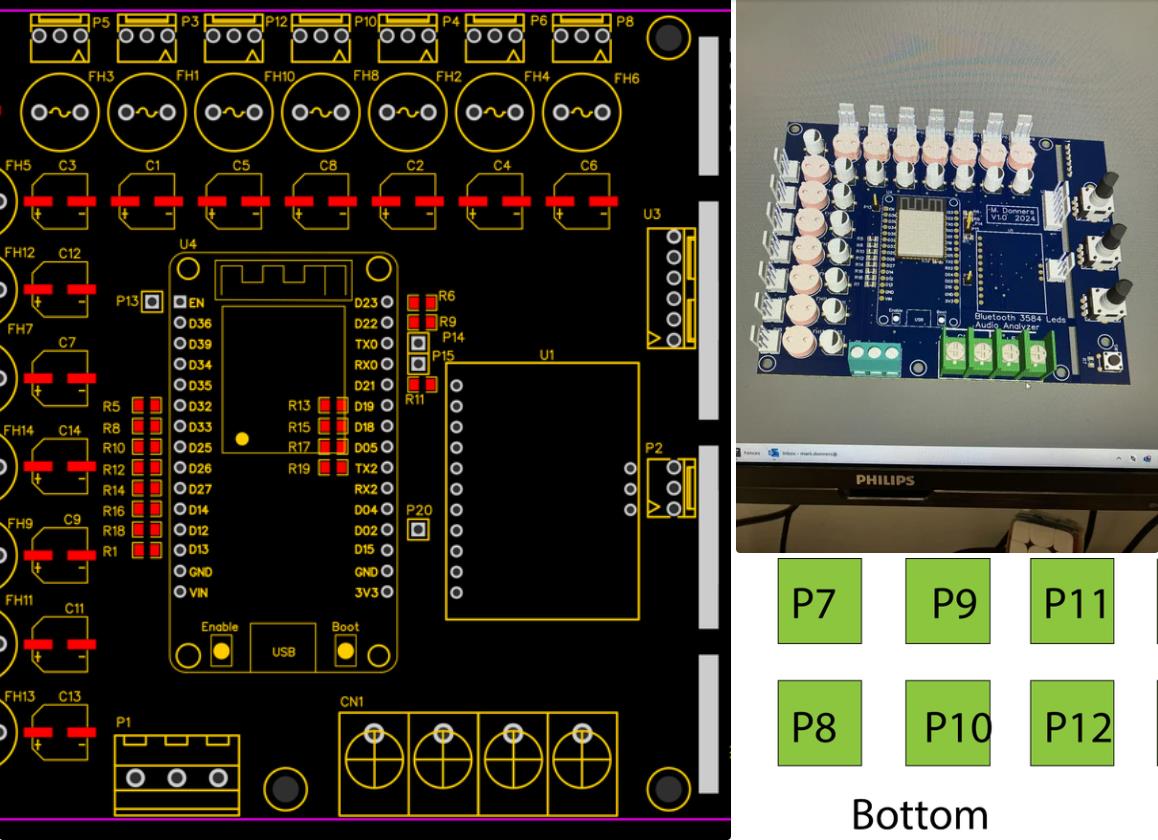

将 ESP32 DOIT devkit 1 连接到 USB 端口，并使用 Chome 或 Edge 访问：
donnersm.github.io/BluetoothAnalyzer/flash.html

项目代码
[code]/*
* Bluetooth spectrum analyzer V1.0
TODO
DONE 4096 (is it even possible?) IT IS POSSIBLE
DONE 128 bands might be possible too at 45 fps. It's actually possible at 115 fps.
- Change backgound dynamically
- Animated backgound
- Perhaps GIFs
DONE Get samples based on the time the last loop took + 1 %
- Retain both channels so I can analyze them both separately if I wawnt to.
I'll do the conversion to 16 bits on core 1 instead of core 0.
This might cost me some microseconds but probably not much since they are just bitwise operations.
- Print the channels mirrored and not mirrored and reversed.
- Hard code several different images. I can also flip them to get variety.
- Flip analyzer upside down. Maybe I can come up with an elegant solution to all these flips.
Perhaps I can flip images in place or have four different funtions to flip the images dynamically while I do the conversion from 2D to snakewise panel.
- Slow the falling down
- Add peaks that fall down. Maybe they start slowly falling down right away or wait a while.
*/
/*
Bluetooth Speaker Spectrum Analyzer
Copyright (C) 2022 Antti Yliniemi
This program is free software: you can redistribute it and/or modify
it under the terms of the GNU Affero General Public License as
published by the Free Software Foundation, either version 3 of the
License, or (at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU Affero General Public License for more details.
You should have received a copy of the GNU Affero General Public License
along with this program. If not, see .
*/
/*
I use these libraries:
https://github.com/hpwit/I2SClocklessLedDriver // I use a heavily modified version of this library. Will be putting a pull request on his github repo after I've done more testing.
https://github.com/yliniemi/I2SClocklessLedDriver/tree/dev // This is my current heavily modified version. Perhaps the changes end up in the hpwit's version some day
https://github.com/fakufaku/esp32-fft // This is the fastest FFT library I could find. Analyzing 4096 samples takes 5 milliseconds.
https://github.com/pschatzmann/ESP32-A2DP
*/
/*
FQBN: esp32:esp32:esp32doit-devkit-v1:PartitionScheme=no_ota
Using board 'esp32doit-devkit-v1' from platform in folder: C:\Users\chord\AppData\Local\Arduino15\packages\esp32\hardware\esp32\1.0.6
Using core 'esp32' from platform in folder: C:\Users\chord\AppData\Local\Arduino15\packages\esp32\hardware\esp32\1.0.6
Using library ESP32-A2DP at version 1.7.1 in folder: C:\Users\chord\Documents\Arduino\libraries\ESP32-A2DP-main
Using library I2SClocklessLedDriver at version 1.0.0 in folder: C:\Users\chord\Documents\Arduino\libraries\I2SClocklessLedDriver-main
*/
#include "BluetoothA2DPSink.h"
extern "C"
{
#include "fft.h"
}
struct CRGB {
union {
struct {
union {
uint8_t r;
uint8_t red;
};
union {
uint8_t g;
uint8_t green;
};
union {
uint8_t b;
uint8_t blue;
};
};
uint8_t raw[3];
};
};
struct FloatOffset
{
float x;
float y;
};
#include "constants.h"
// #define STRESS_RAM
enum MapMode
{
RAINBOW,
TEXTURES
};
MapMode mapMode = RAINBOW;
//MapMode mapMode = TEXTURES;
#define TILE_WIDTH 32
#define TILE_HEIGHT 32
#define ENABLE_LEDMAP
#define PANEL_WIDTH 16
#define PANEL_HEIGHT 16
#define NUM_PANELS_PER_ROW 7
#define NUM_PANELS_PER_COLUMN 2
#define SCREEN_WIDTH PANEL_WIDTH * NUM_PANELS_PER_ROW
#define SCREEN_HEIGHT PANEL_HEIGHT * NUM_PANELS_PER_COLUMN
#define ATX_POWER_ON 13
#define DEFAULT_SAMPLE_RATE 44100
#define HIGHEST_FREQUENCY 20000
#define START_SPECTRUM_AT_THIS_BIN 3
#define ADD_TO_DELTA 0.5
int isrCounter=0;
// by mark
const uint8_t InterruptPin = 35;
bool Request;
void IRAM_ATTR isr() {
Request = true;
}
int BRIGHTNESSMARK = 0;
#define BRIGHTNESSPOT 34
#define BRIGHTNESSMAX 100 // read brightness potmeter
// TaskHandle_t task1, task2, task3;
// has to be between 512 - 2048
// more than 2048 and we run out of ram. less than 512 and we run out of time to draw it on the led panel
// 512 => 86 fps, 1024 => 43 fps, 2048 => 21 fps
#define SAMPLES 4096 //4096
// #define WAIT_UNTIL_DRAWING_DONE
#define SECONDS_BETWEEN_DEBUG 60
#define BANDS SCREEN_WIDTH
const float dynamicRange = 5.0; // in bels, not decibels. bel is ten decibels. it's metric. bel is the base unit. long live the metric.
// #define PRINT_PLOT
#define DEBUG false
// #define DEBUG true
// #define PRINT_BANDS
// #define PRINT_CEILING
#define USE_SERIAL
// #define PRINT_OUTPUT
// #define PRINT_PEAKS
//#define PRINT_FFT_TIME
//#define PRINT_ALL_TIME
//#define PRINT_FASTLED_TIME
//#define PRINT_MAPLEDS_TIME
//#define PRINT_RAM // This uses some resources that block the isr and take a long time
#ifdef STRESS_RAM
//#define PRINT_RAM
#endif
// #define PRINT_INDEXES
// #define TEST_FULL_BUFFER
//#define PRINT_SAMPLE_RATE
//#define PRINT_LESSER_SAMPLES
//#define PRINT_BUFFER_FULL
// Kaiser windowing has the best reduction of side lobes and somewhat narrow main lobe. The other windows don't even hold a candle.
int maxCurrent = 15000;
// int maxBrightness = 32;
#define BUFFER_LENGTH 3072 // 2048 is also just fine. maybe 4096 has too much extra space 3078
IRAM_ATTR int32_t bufferRing[BUFFER_LENGTH] = {};
volatile int writeIndex = 0; // writeIndex will stay 4 behind readIndex. it can't go past
volatile int readIndex = 0; // readIndex can be equal to writeIndex but cannot advance
volatile int bufferFull = 0;
volatile int lesserSamples = 0;
IRAM_ATTR int32_t realRing[SAMPLES] = {};
int realRingIndex = 0;
const int numLeds = NUM_PANELS_PER_ROW * NUM_PANELS_PER_COLUMN * PANEL_WIDTH * PANEL_HEIGHT;
// uint8_t *leds = NULL;
CRGB *leds;
uint32_t loopMicros = 0;
uint32_t loopCycles = 0;
float deltaRatio = 0;
static uint16_t ledMappingFunction(uint16_t hardwareLed);
#define __SOFTWARE_MAP
#include "I2SClocklessLedDriver.h"
I2SClocklessLedDriver driver;
char BTname[] = "Lightnsound";
BluetoothA2DPSink a2dp_sink;
OffsetDisplay offd;
FloatOffset groundOffset;
FloatOffset skyOffset;
enum {bluetooth, microphone, artnet} programMode;
__attribute__((always_inline)) IRAM_ATTR static uint16_t ledMappingFunction(uint16_t hardwareLed)
{
int x, y, moduloRow;
x = (hardwareLed / PANEL_HEIGHT) % (PANEL_WIDTH * NUM_PANELS_PER_ROW);
moduloRow = x % 2;
#ifdef SIGNAL_STARTS_FROM_THE_BOTTOM
y = (moduloRow * hardwareLed + (1 - moduloRow) * (PANEL_HEIGHT * 12345 - 1 - hardwareLed)) % PANEL_HEIGHT + (hardwareLed / (PANEL_WIDTH * PANEL_HEIGHT * NUM_PANELS_PER_ROW)) * PANEL_HEIGHT;
#else
y = ((1 - moduloRow) * hardwareLed + moduloRow * (PANEL_HEIGHT * 12345 - 1 - hardwareLed)) % PANEL_HEIGHT + (hardwareLed / (PANEL_WIDTH * PANEL_HEIGHT * NUM_PANELS_PER_ROW)) * PANEL_HEIGHT;
#endif
x = (x + driver._offsetDisplay.offsetx) % driver._offsetDisplay.panel_width;
return x + y * driver._offsetDisplay.panel_width;
}
float sqrtApprox(float number)
{
union { float f; uint32_t u; } y = {number};
y.u = 0x5F1FFFF9ul - (y.u >> 1);
return number * 0.703952253f * y.f * (2.38924456f - number * y.f * y.f);
}
CRGB redToBlue(float hue)
{
CRGB color;
color.r = std::max((float)255 * (1 - 2 * hue), (float)0) * 0.094 * 2.5;
color.g = std::max(min(hue * 2 * 255, (1 - hue) * 2 * 255), (float)0) * 0.113 * 2.5;
color.b = std::max((float)255 * (hue * 2 - 1), (float)0) * 0.080 * 2.5;
return color;
}
/*
void mapLeds()
{
for (int i = 0; i < BANDS; i++)
{
for (int j = 0; j < 16; j++)
{
if ((bands[i] * 16 - j) >= 0) leds[ledMap[i * 16 + j]] = templateLeds[i * 16 + j];
else if ((bands[i] * 16 - j) > -1)
{
leds[ledMap[i * 16 + j]].r = ((float)templateLeds[i * 16 + j].r + 1.0) * (bands[i] * 16.0 - j + 1.0); // I add one to the color so that if it's small it doesn't disappear first. now if the color is one, it will disappear in the middle.
leds[ledMap[i * 16 + j]].g = ((float)templateLeds[i * 16 + j].g + 1.0) * (bands[i] * 16.0 - j + 1.0);
leds[ledMap[i * 16 + j]].b = ((float)templateLeds[i * 16 + j].b + 1.0) * (bands[i] * 16.0 - j + 1.0);
}
else leds[ledMap[i * 16 + j]] = {0, 0, 0};
}
}
}
*/
/*
void mapLeds()
{
for (int x = 0; x < SCREEN_WIDTH; x++)
{
for (int y = 0; y < SCREEN_HEIGHT; y++)
{
leds[x + y * SCREEN_WIDTH].r = 4;
}
}
}
*/
void mapLeds_rainbow(float* bands)
{
for (int x = 0; x < BANDS; x++)
{
CRGB color = redToBlue(((float)x / (BANDS - 1)) * sqrtApprox((float)x / (BANDS - 1)));
for (int y = 0; y < SCREEN_HEIGHT; y++)
{
if ((bands[x] * SCREEN_HEIGHT - (SCREEN_HEIGHT - 1 - y)) >= 0) leds[x + SCREEN_WIDTH * y] = color;
else if ((bands[x] * SCREEN_HEIGHT - (SCREEN_HEIGHT - 1 - y)) > -1)
{
leds[x + SCREEN_WIDTH * y].r = ((float)color.r + 0.999) * (bands[x] * SCREEN_HEIGHT - (SCREEN_HEIGHT - 1 - y) + 0.999);
leds[x + SCREEN_WIDTH * y].g = ((float)color.g + 0.999) * (bands[x] * SCREEN_HEIGHT - (SCREEN_HEIGHT - 1 - y) + 0.999);
leds[x + SCREEN_WIDTH * y].b = ((float)color.b + 0.999) * (bands[x] * SCREEN_HEIGHT - (SCREEN_HEIGHT - 1 - y) + 0.999);
}
else leds[x + SCREEN_WIDTH * y] = {0, 0, 0};
}
}
}
__attribute__((always_inline)) void mapLeds_textures(int x, FloatOffset groundOffset, FloatOffset skyOffset, float* bands)
{
for (int y = 0; y < SCREEN_HEIGHT; y++)
{
CRGB groundColor = ((CRGB*)yellow_sand)[((y + (int)groundOffset.y) % TILE_HEIGHT) * TILE_WIDTH + (x + (int)groundOffset.x) % TILE_WIDTH];
groundColor.r = groundColor.r / 4;
groundColor.g = groundColor.g / 64;
groundColor.b = groundColor.b / 64;
CRGB skyColor = ((CRGB*)dark_blue_water)[((y + (int)skyOffset.y) % TILE_HEIGHT) * TILE_WIDTH + (x + (int)skyOffset.x) % TILE_WIDTH];
skyColor.r = skyColor.r / 64;
skyColor.g = skyColor.g / 64;
skyColor.b = skyColor.b / 64;
if ((bands[x] * SCREEN_HEIGHT - (SCREEN_HEIGHT - 1 - y)) >= 0)
{
leds[x + SCREEN_WIDTH * y] = groundColor;
}
else if ((bands[x] * SCREEN_HEIGHT - (SCREEN_HEIGHT - 1 - y)) > -1)
{
float skyPortion = SCREEN_HEIGHT - 1 - y - bands[x] * SCREEN_HEIGHT;
float groundPortion = 1 - skyPortion;
leds[x + SCREEN_WIDTH * y].r = (float)groundColor.r * groundPortion + (float)skyColor.r * skyPortion;
leds[x + SCREEN_WIDTH * y].g = (float)groundColor.g * groundPortion + (float)skyColor.g * skyPortion;
leds[x + SCREEN_WIDTH * y].b = (float)groundColor.b * groundPortion + (float)skyColor.b * skyPortion;
}
else
{
leds[x + SCREEN_WIDTH * y] = skyColor;
}
}
}
void drawCharacter(const CRGB* character, float startingColumn, float offSet, float columnsPerFrame, int numberOfFrames, int frameWidth, int frameHeight)
{
int frame = (int)((startingColumn + offSet) / columnsPerFrame) % numberOfFrames;
for (int x = (int)(startingColumn + 100) - 100; x < (int)startingColumn + frameWidth; x++)
{
if (x >= 0 && x < SCREEN_WIDTH)
{
for (int y = max(SCREEN_HEIGHT - frameHeight, 0); y < SCREEN_HEIGHT; y++)
{
int characterPixel = x - (int)(startingColumn + 100) + 100 + frame * frameWidth + (y - SCREEN_HEIGHT + frameHeight) * (numberOfFrames * frameWidth);
// if (character[characterPixel].r != 0xFE && character[characterPixel].g != 0xFD && character[characterPixel].b != 0xFC)
if ((*(uint32_t*)&(character[characterPixel]) & 0x00FFFFFF) != 0x00FCFDFE) // I don't know why it's not 0xFEFDFC. It's because esp32 is little endian.
{
leds[x + y * SCREEN_WIDTH].r = character[characterPixel].r / 16;
leds[x + y * SCREEN_WIDTH].g = character[characterPixel].g / 16;
leds[x + y * SCREEN_WIDTH].b = character[characterPixel].b / 16;
}
}
}
}
}
/*
void mapLeds() // upside down
{
for (int x = 0; x < BANDS; x++)
{
CRGB color = redToBlue(((float)x / (BANDS - 1)) * sqrtApprox((float)x / (BANDS - 1)));
for (int y = 0; y < SCREEN_HEIGHT; y++)
{
if ((bands[x] * SCREEN_HEIGHT - y) >= 0) leds[x + SCREEN_WIDTH * y] = color;
else if ((bands[x] * 32 - y) > -1)
{
leds[x + SCREEN_WIDTH * y].r = ((float)color.r + 0.999) * (bands[x] * SCREEN_HEIGHT - y + 0.999);
leds[x + SCREEN_WIDTH * y].g = ((float)color.g + 0.999) * (bands[x] * SCREEN_HEIGHT - y + 0.999);
leds[x + SCREEN_WIDTH * y].b = ((float)color.b + 0.999) * (bands[x] * SCREEN_HEIGHT - y + 0.999);
}
else leds[x + SCREEN_WIDTH * y] = {0, 0, 0};
}
}
}
*/
void substractAverage(float* inputReal)
{
float average = 0;
for (int i = 0; i < SAMPLES; i++)
{
average += inputReal[i];
}
average /= SAMPLES;
for (int i = 0; i < SAMPLES; i++)
{
inputReal[i] = inputReal[i] - average;
}
}
void doWindowing(float* inputReal)
{
for (int i = 0; i < SAMPLES; i++)
{
inputReal[i] = inputReal[i] * windowingArray[i];
}
}
void audio_data_callback(const uint8_t *data, uint32_t byteLen)
{
int actualLen = byteLen / 4;
if ((readIndex - writeIndex + BUFFER_LENGTH - 1) % BUFFER_LENGTH <= actualLen)
{
bufferFull++;
}
else
{
for (int i = 0; i < actualLen; i++)
{
// bufferRing[(writeIndex + i) % BUFFER_LENGTH] = *(int16_t*)&(data[i * 4]) / 2 + *(int16_t*)&(data[i * 4 + 2]) / 2;
bufferRing[(writeIndex + i) % BUFFER_LENGTH] = ((int)*(int16_t*)&(data[i * 4]) + (int)*(int16_t*)&(data[i * 4 + 2]));
}
}
writeIndex = (writeIndex + actualLen) % BUFFER_LENGTH;
#ifdef PRINT_INDEXES
Serial.print("Got ");
Serial.print(actualLen);
Serial.print(" data, writeIndex = ");
Serial.println(writeIndex);
#endif
}
void startAudio()
{
i2s_config_t i2s_config = {
.mode = (i2s_mode_t) (I2S_MODE_MASTER | I2S_MODE_TX),
.sample_rate = DEFAULT_SAMPLE_RATE, // updated automatically by A2DP
.bits_per_sample = (i2s_bits_per_sample_t)16,
.channel_format = I2S_CHANNEL_FMT_RIGHT_LEFT,
.communication_format = (i2s_comm_format_t) (I2S_COMM_FORMAT_STAND_I2S),
.intr_alloc_flags = 0, // default interrupt priority
.dma_buf_count = 8,
.dma_buf_len = 64,
.use_apll = true,
.tx_desc_auto_clear = true // avoiding noise in case of data unavailability
};
a2dp_sink.set_i2s_config(i2s_config);
a2dp_sink.set_i2s_port(I2S_NUM_1);
a2dp_sink.set_stream_reader(audio_data_callback);
i2s_pin_config_t my_pin_config = {
.bck_io_num = 4,
.ws_io_num = 15,
.data_out_num = 16,
.data_in_num = I2S_PIN_NO_CHANGE };
a2dp_sink.set_pin_config(my_pin_config);
// a2dp_sink.set_auto_reconnect(false); // maybe this helps with my compatibility problem
a2dp_sink.start(BTname);
Serial.println(String("Started Bluetooth audio receiver with the name ") + BTname);
}
bool readBuffer(float* inputReal)
{
int newSamples = min(min(SAMPLES, a2dp_sink.sample_rate() * (int)loopMicros / 990000), BUFFER_LENGTH);
if ((writeIndex - readIndex + BUFFER_LENGTH) % BUFFER_LENGTH < newSamples / 2) // i only ask for half as many samples to be present
{
// delay(1);
return false;
}
if ((writeIndex - readIndex + BUFFER_LENGTH) % BUFFER_LENGTH < newSamples)
{
// delay(1);
newSamples = (writeIndex - readIndex + BUFFER_LENGTH) % BUFFER_LENGTH;
lesserSamples = newSamples;
}
{
for (int i = 0; i < newSamples; i++)
{
realRing[realRingIndex] = (bufferRing[readIndex]);
realRingIndex = (realRingIndex + 1) % SAMPLES;
readIndex = (readIndex + 1) % BUFFER_LENGTH;
}
#ifdef PRINT_INDEXES
Serial.println(String("readIndex = ") + readIndex + ", realRingIndex = " + realRingIndex);
#endif
}
// DC-offset removal goes here. I don't yet know how. I need a few variables of ram.
// But since I do overlapping fft, I need to do the DC removal again but the variables are continous.
// I'm not going to save a history of them. Perhaps I need to calculate them again
// by first calculating them to the point where I delete the circular buffer and save them for use the next loop.
// only after that I'll read the buffer. I'll need to do the calculations like 7 times more than I should if I had an extra 16 kB.
// I know the most probable amount of new samples I will use.
// Only when I reach the head of the ring buffer I need to get variable amount of samples.
// This only saves 15 % of calculating the DC-offset. Perhaps it's not worth it.
// I could separate the channels at this point too. I can get them for free now since they are in IRAM.
for (int i = 0; i < SAMPLES; i++)
{
inputReal[i] = (float)realRing[(realRingIndex + i) % SAMPLES];
}
return true;
}
void powerOfTwo(float* output)
{
for (int index = 0; index < SAMPLES / 2; index++)
{
output[index] = output[index * 2] * output[index * 2] + output[index * 2 + 1] * output[index * 2 + 1];
}
}
void zeroSmallBins(float* output)
{
float biggest = 0;
for (int i = 0; i < SAMPLES / 2; i++)
{
if (biggest < output[i]) biggest = output[i];
}
for (int i = 0; i < SAMPLES / 2; i++)
{
// we get rid of the unwanted frequency side lobes this way. kaiser 2 is quite eficient and we shouldn't see more than -60 dB on the side lobes
// at the same time we make sure that we don't take logarithm out of zero. that would be -infinite
output[i] = std::max(output[i] - biggest * 0.0000003, 0.0000000001);
}
}
/*
void powTwoBands(float* output, float* bands)
{
for (int i = 0; i < BANDS; i++)
{
bands[i] = 0;
#if SAMPLES == 4096
#if BANDS == 112
for (int j = bins_4096_112[i]; j < bins_4096_112[i + 1]; j++)
#endif
#if BANDS == 64
for (int j = bins_4096_64[i]; j < bins_4096_64[i + 1]; j++)
#endif
#if BANDS == 7
for (int j = bins_4096_7[i]; j < bins_4096_7[i + 1]; j++)
#endif
#endif
#if SAMPLES == 2048
for (int j = bins_2048_64[i]; j < bins_2048_64[i + 1]; j++)
#endif
{
bands[i] += output[j];
}
}
}
*/
void logBands(float* bands, float* peakBands)
{
for (int i = 0; i < BANDS; i++)
{
bands[i] = log10f(bands[i]);
#ifdef PRINT_PEAKS
if (peakBands[i] < bands[i]) peakBands[i] = bands[i];
#endif
#if BANDS == 7
bands[i] = bands[i] - substract_7[i] + 6;
#endif
#if BANDS == 16
bands[i] = bands[i] - substract_16[i] + 6;
#endif
#if BANDS == 32
bands[i] = bands[i] - substract_32[i] + 6;
#endif
#if BANDS == 48
bands[i] = bands[i] - substract_48[i] + 6;
#endif
#if BANDS == 64
bands[i] = bands[i] - substract_64[i] + 6;
#endif
#if BANDS == 112
bands[i] = bands[i] - substract_112[i] + 6;
#endif
}
}
void normalizeBands(float* bands)
{
static float bandCeiling = 0.1;
#ifdef PRINT_CEILING
Serial.println(String("bandCeiling = ") + bandCeiling);
#endif
bandCeiling -= 0.00005; // now it takes 200 seconds to come 10 dB down
for (int i = 0; i < BANDS; i++)
{
if (bands[i] > bandCeiling) bandCeiling = bands[i];
}
for (int i = 0; i < BANDS; i++)
{
bands[i] = (bands[i] - bandCeiling + dynamicRange) / dynamicRange;
}
}
/* These will be combined to one function
powTwoBands(output, bands);
logBands(bands, peakBands);
normalizeBands(bands);
*/
void powerBinsToBands(float* output, float* bands)
{
int32_t startingPoint = START_SPECTRUM_AT_THIS_BIN;
for (int32_t i = 0; i < BANDS; i++)
{
bands[i] = 0;
int32_t delta = (startingPoint * deltaRatio) + ADD_TO_DELTA;
if (delta <= 0) delta = 1;
for (int32_t j = 0; j < delta; j++)
{
bands[i] += output[startingPoint + j];
}
startingPoint += delta;
bands[i] = log10f(bands[i]);
#ifdef PRINT_PEAKS
if (peakBands[i] < bands[i]) peakBands[i] = bands[i];
#endif
// if (delta < 1) delta = 1;
if (delta > 6) delta = 6;
bands[i] -= substract_universal[delta - 1];
}
static float bandCeiling = -1000000;
#ifdef PRINT_CEILING
Serial.println(String("bandCeiling = ") + bandCeiling);
#endif
bandCeiling -= 0.00002; // now it takes 300 seconds to come 10 dB down
for (int i = 0; i < BANDS; i++)
{
if (bands[i] > bandCeiling) bandCeiling = bands[i];
}
for (int i = 0; i < BANDS; i++)
{
bands[i] = (bands[i] - bandCeiling + dynamicRange) / dynamicRange;
}
}
float __attribute__ ((noinline)) checkDeltaRatio(float ratio, float startingPoint, int32_t rounds)
{
for (int32_t i = 0; i < rounds; i++)
{
float delta = floorf((startingPoint * ratio) + ADD_TO_DELTA);
if (delta <= 0) delta = 1;
startingPoint += delta;
}
return startingPoint;
}
float __attribute__ ((noinline)) findDeltaRatio(int32_t maxDepth, float low, float high, float lowestValid, float startingPoint, int32_t endGoal, int32_t rounds)
{
float middle = (low + high) * 0.5;
float result = checkDeltaRatio(middle, startingPoint, rounds);
// Serial.printf("%.17f : %f\n", middle, result);
if (maxDepth <= 0) return lowestValid;
if (result > endGoal)
{
return findDeltaRatio(maxDepth - 1, low, middle, lowestValid, startingPoint, endGoal, rounds);
}
else
{
return findDeltaRatio(maxDepth - 1, middle, high, middle, startingPoint, endGoal, rounds);
}
}
void setup()
{
#ifdef USE_SERIAL
Serial.begin(115200);
#endif
programMode = bluetooth;
Serial.printf("programMode = %d\n\r", programMode);
Serial.println("Just booted up");
Serial.print("ESP.getFreeHeap() = ");
Serial.println(ESP.getFreeHeap());
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_8BIT) = ");
Serial.println(heap_caps_get_largest_free_block(MALLOC_CAP_8BIT));
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_32BIT) = ");
Serial.println(heap_caps_get_largest_free_block(MALLOC_CAP_32BIT));
delay(100);
int32_t lastBin = min(SAMPLES / 2 - 1, HIGHEST_FREQUENCY * SAMPLES / DEFAULT_SAMPLE_RATE);
deltaRatio = findDeltaRatio(25, 0, 0.2, 0, START_SPECTRUM_AT_THIS_BIN, lastBin, BANDS);
Serial.printf("deltaRatio = %f\n", deltaRatio);
Serial.printf("numLeds = %d\n", numLeds);
Serial.printf("SCREEN_WIDTH = %d\n", SCREEN_WIDTH);
Serial.printf("SCREEN_HEIGHT = %d\n", SCREEN_HEIGHT);
int pins[] = {32, 33, 25, 26, 27, 14, 12, 23, 22, 21, 19, 18, 5, 17}; // esp32 dev kit v1
#ifndef WAIT_UNTIL_DRAWING_DONE
driver.__displayMode = NO_WAIT;
#endif
#ifdef STRESS_RAM
leds = (CRGB*)calloc(numLeds * 2, sizeof(CRGB)); // testing if I have enough ram for a 112 x 64 screen
driver.initled((uint8_t*)leds, pins, NUM_PANELS_PER_ROW * NUM_PANELS_PER_COLUMN, PANEL_WIDTH * PANEL_HEIGHT * 2, ORDER_GRB); // simulating screen twice as big and half as fast
#else
leds = (CRGB*)calloc(numLeds, sizeof(CRGB));
driver.initled((uint8_t*)leds, pins, NUM_PANELS_PER_ROW * NUM_PANELS_PER_COLUMN, PANEL_WIDTH * PANEL_HEIGHT, ORDER_GRB);
#endif
// These two lines have to be after driver.initled()
driver._offsetDisplay.panel_width=SCREEN_WIDTH;
driver._offsetDisplay.panel_height=SCREEN_HEIGHT;
offd = driver.getDefaultOffset();
offd.panel_width=SCREEN_WIDTH;
offd.panel_height=SCREEN_HEIGHT;
Serial.printf("driver._offsetDisplay.panel_width = %d\n", driver._offsetDisplay.panel_width);
Serial.printf("driver._offsetDisplay.panel_height = %d\n", driver._offsetDisplay.panel_height);
groundOffset.x = 0;
groundOffset.y = 0;
skyOffset.x = 0;
skyOffset.y = 0;
// driver.setMapLed(mapLedsOnPanel);
startAudio();
Serial.print("ESP.getFreeHeap() = ");
Serial.println(ESP.getFreeHeap());
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_8BIT) = ");
Serial.println(heap_caps_get_largest_free_block(MALLOC_CAP_8BIT));
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_32BIT) = ");
Serial.println(heap_caps_get_largest_free_block(MALLOC_CAP_32BIT));
delay(100);
pinMode(ATX_POWER_ON, OUTPUT);
digitalWrite(ATX_POWER_ON, LOW);
// gpio_set_direction((gpio_num_t)13, GPIO_MODE_OUTPUT);
// gpio_set_level((gpio_num_t)13, 0);
Serial.printf("ledMappingFunction(0) = %d\n\r", ledMappingFunction(0));
Serial.printf("ledMappingFunction(1790) = %d\n\r", ledMappingFunction(1790));
BRIGHTNESSMARK = map(analogRead(BRIGHTNESSPOT), 0, 4093, 1,BRIGHTNESSMAX); // read brightness potmeter
driver.setBrightness(BRIGHTNESSMARK);
pinMode(InterruptPin, INPUT);
attachInterrupt(InterruptPin, isr, RISING);
}
void loopBluetooth()
{
static float* inputReal = (float*)calloc(SAMPLES, sizeof(float));
static float* output = (float*)calloc(SAMPLES, sizeof(float));
static fft_config_t* fftReal = fft_init(SAMPLES, FFT_REAL, FFT_FORWARD, inputReal, output);
static float* bands = (float*)calloc(BANDS, sizeof(float));
#ifdef PRINT_PEAKS
static float* peakBands = (float*)calloc(BANDS, sizeof(float));
#else
static float* peakBands;
#endif
bool charactersOn = true;
static unsigned int beebBoob = 178;
static uint32_t previousMicros = 0;
static uint32_t previousCycles = 0;
uint32_t newMicros = micros();
uint32_t newCycles = xthal_get_ccount();
static uint32_t previousDebugMillis = 0;
loopMicros = newMicros - previousMicros;
loopCycles = newCycles - previousCycles;
previousMicros = newMicros;
previousCycles = newCycles;
if (previousDebugMillis == 0)
{
previousDebugMillis = 1;
Serial.print("ESP.getFreeHeap() = ");
Serial.println(ESP.getFreeHeap());
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_8BIT) = ");
Serial.println(heap_caps_get_largest_free_block(MALLOC_CAP_8BIT));
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_32BIT) = ");
Serial.println(heap_caps_get_largest_free_block(MALLOC_CAP_32BIT));
}
while (true)
{
if (readBuffer(inputReal)) break;
else
{
vTaskDelay(1);
previousMicros = micros();
previousCycles = xthal_get_ccount();
}
}
#ifdef PRINT_FFT_TIME
uint32_t fftMicros = micros();
uint32_t fftCycles = xthal_get_ccount();
#endif
// substractAverage(inputReal);
doWindowing(inputReal);
fft_execute(fftReal);
powerOfTwo(output); // if we end up doing log() of the output anyways there is no need to do costly sqrt() because it's the same as dividing log() by 2
// sqrtBins(); // we don't actually need this since we are dealing with the power of the signal and not the amplitude
zeroSmallBins(output); // we do this because there are plenty of of reflections in the surrounding bins
/* These will be combined to one function
powTwoBands(output, bands);
logBands(bands, peakBands);
normalizeBands(bands);
*/
powerBinsToBands(output, bands);
groundOffset.x += 0.03;
groundOffset.y += 0.5;
skyOffset.x += 0.23;
skyOffset.y += 0.05;
if (groundOffset.x < 0) groundOffset.x += TILE_WIDTH;
if (groundOffset.y < 0) groundOffset.y += TILE_HEIGHT;
if (skyOffset.x < 0) skyOffset.x += TILE_WIDTH;
if (skyOffset.y < 0) skyOffset.y += TILE_HEIGHT;
#ifdef PRINT_FFT_TIME
fftMicros = micros() - fftMicros;
fftCycles = xthal_get_ccount() - fftCycles;
#endif
#ifndef WAIT_UNTIL_DRAWING_DONE
while (driver.isDisplaying == true) vTaskDelay(1);
#endif
#ifdef PRINT_RAM
// I had to move these commands here because they bothered I2SCloclessLedDriver
// They do something that blocks the interruots or something
// I was getting pretty garbled results just because of this
// I had to wait until I2SCloclessLedDriver was done drawing the leds
static int heap_caps_get_largest_free_block_8bit_min = 1000000000;
static int heap_caps_get_largest_free_block_32bit_min = 1000000000;
int newValue = heap_caps_get_largest_free_block(MALLOC_CAP_8BIT);
if (newValue < heap_caps_get_largest_free_block_8bit_min) heap_caps_get_largest_free_block_8bit_min = newValue;
newValue = heap_caps_get_largest_free_block(MALLOC_CAP_32BIT);
if (newValue < heap_caps_get_largest_free_block_32bit_min) heap_caps_get_largest_free_block_32bit_min = newValue;
#endif
uint32_t mapLedsMicros = micros();
uint32_t mapLedsCycles = xthal_get_ccount();
BRIGHTNESSMARK = map(analogRead(BRIGHTNESSPOT), 0, 4093, 1,BRIGHTNESSMAX); // read brightness potmeter
driver.setBrightness(BRIGHTNESSMARK);
// mapLeds();
// mapLeds_mario();
// driver.ledToDisplay will be needed next
if (Request){
isrCounter++;
if(isrCounter>20){
if (mapMode==RAINBOW)mapMode=TEXTURES;
else mapMode=RAINBOW;
Request = false;
Serial.println(mapMode);
isrCounter=0;
}
}
switch (mapMode)
{
case TEXTURES:
for (int x = 0; x < BANDS; x++)
{
mapLeds_textures(x, groundOffset, skyOffset, bands);
}
break;
case RAINBOW:
mapLeds_rainbow(bands);
break;
}
if (charactersOn == true)
{
// drawCharacter(CRGB* character, float startingColumn, float offset, int columnsPerFrame, int numberOfFrames, int frameWidth, int frameHeight)
static uint32_t characterNumber = 0;
static int frameWidth = 32;
static int frameHeight = 32;
static int numberOfFrames = 8;
static const CRGB* currentCharacter = (const CRGB*)tuxes_walking;
static float columnsPerFrame = 1.5;
static float offset = 100.4 + ((double)esp_random() / (double)4194304);
static float startingColumn = 0 - frameWidth;
// [frameHeight * 2 * (characterNumber % 11) * 3 * frameWidth * numberOfFrames]
drawCharacter(currentCharacter, startingColumn, offset, columnsPerFrame, numberOfFrames, frameHeight, frameWidth);
startingColumn += 0.2;
if (startingColumn > SCREEN_WIDTH + frameWidth + 4)
{
characterNumber = (characterNumber + 1) % 24;
{
currentCharacter = (const CRGB*)tuxes_walking + characterNumber * frameHeight * frameWidth * numberOfFrames;
frameWidth = 32;
frameHeight = 32;
numberOfFrames = 8;
}
// offset = 100.4 + (float)esp_random() / 1000000.4;
offset = 100.4 + ((double)esp_random() / (double)4194304);
if ((characterNumber % 2) == 0)
{
columnsPerFrame = 1.5;
}
else
{
columnsPerFrame = 2;
}
if (characterNumber == 22)
{
currentCharacter = (const CRGB*)guido_walking;
frameWidth = 32;
frameHeight = 32;
numberOfFrames = 8;
columnsPerFrame = 2;
}
if (characterNumber == 23)
{
currentCharacter = (const CRGB*)squirrel_walking;
frameWidth = 20;
frameHeight = 20;
numberOfFrames = 6;
columnsPerFrame = 2;
}
startingColumn = 0 - frameWidth - 4;
// Serial.printf("Color of the first pixel is %u\n\r", (*(uint32_t*)&(currentCharacter[0])));
// it should be 16711164;
// it's actually 4277992958 because the cpu is little endian
// that means that the last byte of the number is stored in the beginning
// all the bytes in a number are in reverse order
// back in the day when the bit width of the memory lane was less than the bit width of the cpu
// it allowed the cpu to start the calculations one clock cycle before it got the whole number
}
}
mapLedsMicros = micros() - mapLedsMicros;
mapLedsCycles = xthal_get_ccount() - mapLedsCycles;
uint32_t showPixelsMicros = micros();
uint32_t showPixelsCycles = xthal_get_ccount();
// driver.showPixels((uint8_t *)leds);
// driver.showPixels(offd);
// leds[8 * SCREEN_WIDTH + 51].r = 255;
// leds[8 * SCREEN_WIDTH + 51].g = 255;
// leds[8 * SCREEN_WIDTH + 51].b = 255;
driver.showPixels(NO_WAIT);
showPixelsMicros = micros() - showPixelsMicros;
showPixelsCycles = xthal_get_ccount() - showPixelsCycles;
#ifdef PRINT_PLOT
plot();
#endif
#ifdef PRINT_BANDS
printBands();
#endif
if (millis() - previousDebugMillis > SECONDS_BETWEEN_DEBUG * 1000)
{
previousDebugMillis = millis();
Serial.printf("driver._offsetDisplay.panel_width = %d\n", driver._offsetDisplay.panel_width);
Serial.printf("driver._offsetDisplay.panel_height = %d\n", driver._offsetDisplay.panel_height);
#ifdef PRINT_FFT_TIME
//Serial.print("FFT took ");
//Serial.print(fftMicros);
//Serial.print(" ");
//Serial.print((fftCycles) / 240);
//Serial.println(" μs");
#endif
#ifdef PRINT_RAM
Serial.print("ESP.getFreeHeap() = ");
Serial.println(ESP.getFreeHeap());
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_8BIT) = ");
Serial.println(heap_caps_get_largest_free_block_8bit_min);
Serial.print("heap_caps_get_largest_free_block(MALLOC_CAP_32BIT) = ");
Serial.println(heap_caps_get_largest_free_block_32bit_min);
heap_caps_get_largest_free_block_8bit_min = 1000000000;
heap_caps_get_largest_free_block_32bit_min = 1000000000;
#endif
#ifdef PRINT_FASTLED_TIME
//Serial.print("driver.showPixels() took ");
//Serial.print(showPixelsMicros);
//Serial.print(" ");
//Serial.print((showPixelsCycles) / 240);
//Serial.println(" μs ");
#endif
#ifdef PRINT_MAPLEDS_TIME
//Serial.print("MapLeds took ");
//Serial.print(mapLedsMicros);
//Serial.print(" ");
//Serial.print((mapLedsCycles) / 240);
//Serial.println(" μs ");
#endif
#ifdef PRINT_SAMPLE_RATE
//Serial.print("a2dp_sink.sample_rate() = ");
//Serial.println(a2dp_sink.sample_rate());
#endif
#ifdef PRINT_ALL_TIME
//Serial.print("everything took ");
//Serial.print(loopMicros);
//Serial.print(" ");
//Serial.print((loopCycles) / 240);
//Serial.println(" μs");
#endif
#ifdef PRINT_PEAKS
//Serial.print("Peak bands: ");
// for (int i = 0; i < BANDS; i++)
// {
// Serial.printf("%f, ", peakBands[i] - 6.0);
// }
// Serial.println();
#endif
#ifdef PRINT_LESSER_SAMPLES
// if (lesserSamples > 0)
// {
// Serial.print("lesserSamples = ");
// Serial.println(lesserSamples);
// lesserSamples = 0;
// }
#endif
#ifdef PRINT_BUFFER_FULL
// if (bufferFull > 0)
// {
// Serial.print("BUFFER FULL. DISCARDING DATA. BUFFER FULL. DISCARDING DATA. BUFFER FULL. bufferFull = ");
// Serial.println(bufferFull);
// bufferFull = 0;
// }
#endif
}
#ifdef TEST_FULL_BUFFER
//delay(150);
#endif
}
void loopMicrophone()
{
}
void loopArtnet()
{
}
void loop()
{
switch(programMode)
{
case bluetooth:
while(true) loopBluetooth();
break;
case microphone:
while(true) loopMicrophone();
break;
case artnet:
while(true) loopArtnet();
break;
}
}[/code]
