Espruino是一款小于半张名片大小的开发板，搭载了STM32F103RCT6 32位72MHz ARM Cortex M3 CPU。它具备256KB Flash内存和48KB RAM，并支持多种通信接口，如微型USB、电池连接器、SD卡插槽等。Espruino提供了44个GPIO引脚，支持PWM、ADC、USART、SPI、I2C和DAC等功能。这款开发板适用于嵌入式JavaScript编程，适合初学者和经验丰富的开发者。通过下载并安装STM32 ST-LINK Utility，可以选择espruino_1v63_stm32vldiscovery.bin文件进行编程。

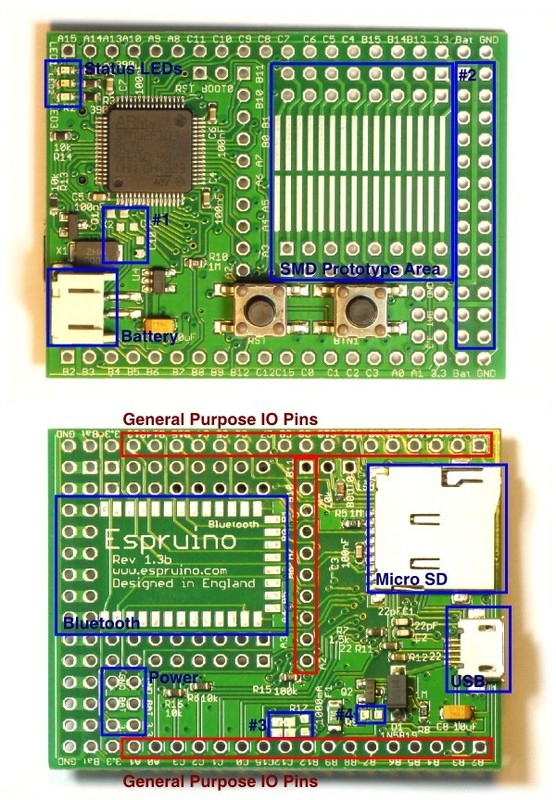

Features⇠- Less than half the size of a business card ( 54mm x 41mm )
- STM32F103RCT6 32-bit 72MHz ARM Cortex M3 CPU
- 256KB of Flash memory, 48KB of RAM
- Micro USB connector
- Input Voltage Range of 3.6v to 15v
- Battery connector (JST PHR-2 2 Pin)
- Built-in SD card connector
- Red, Green and Blue LEDs
- Pads to allow HC-05 Bluetooth modules to be added
- 0.1" Pin spacing
- 44 GPIO Pins, capable of: 26 PWM Pins, 16 ADC Pins, 3 USARTs, 2 SPI, 2 I2C and 2 DACs
- Prototype area which can be used in many different configurations, for example: Servo Headers, Up to 14x 500mA outputs, 2x .NET Gadgeteer connectors, or NRF24L01+ wireless transceiver modules
- Rev 1v4: CE and RoHS certification
Pinout⇠Hover the mouse over a pin function for more information. Clicking in a function will tell you how to use it in Espruino. - Purple boxes show pins that are used for other functionality on the board. You should avoid using these unless you know that the marked device is not used.
- ! boxes contain extra information about the pin. Hover your mouse over them to see it.
- 3.3v boxes mark pins that are not 5v tolerant (they only take inputs from 0 - 3.3v, not 0 - 5v).
- 3.3 is a 3.3v output from the on-board Voltage regulator.
- GND is ground (0v).
- VBAT is the battery voltage output (see the Espruino Board Reference).
- ADC is an Analog to Digital Converter (for reading analog voltages)
- DAC is a Digital to Analog Converter (for creating analog voltages). This is not available on all boards.
- PWM is for Pulse Width Modulation. This creates analog voltages from a digital output by sending a series of pulses.
- SPI is the 3 wire Serial Peripheral Interface.
- USART is a 2 wire peripheral for Serial Data.
- I2C is the 2 wire Inter-Integrated Circuit bus.
- CAN is for the Controller Area Network. It is not supported by Espruino.
Espruino Board 是http://www.espruino.com 出的这样一种小板子：
可以用js编程，引脚定义：
Pins not on connectors
A11 CAN USB PWM
A12 CAN USB
C13 3.3v USB
C14 3.3v OSC RTC
D0 CAN OSC
D1 CAN OSC
D2 SD CARD UART5 RX
详细的看这里：http://www.espruino.com/ReferenceESPRUINOBOARD
而且如果你下载了这个：
 espruino_1v63.zip
那么——
STM32 (VL/F3/F4) DISCOVERYOn WindowsExtract the archive containing Espruino Run the 'STM32 ST-LINK Utility' Click 'File'->'Open File' and choose espruino_1v63_stm32vldiscovery.bin When asked if you want to program, click 'Yes' Click 'Program' on the next window
|
