X-Board继电器板，https://www.dfrobot.com.cn/goods-686.html 运行样例程序时串口监视器上没有任何输出，不知何故？ 为了测试，写了一段简单的程序，读模拟口的值然后在串口打印，不启用网络功能，一起正常，如果启用网络功能，立刻死机。 是不是Ethernet和串口冲突？但是把串口的输出全部取消，用mac地址加固定ip地址的方式启用Ethernet，在浏览器访问给X-Board设定的ip地址，提示无法访问。 请用过X-borad（继电器板）的大侠给点指导。 |
Serial.println("Serial is ok!");
delay(1000);
其实不加也是一样的，我加了只是想测试串口是否设置正常。
/*
DFRobot X-board V2 Sample Code
A simple web server with DHPC capbabilty.
1)Get IP address from router automatically
2)Show the value of the analog input pins
created 28 Sep 2012
by Ricky
*/
#include
#include
//EthernetServer server(80);
// Enter a MAC address and IP address for your controller below.
// The IP address will be dependent on your local network:
byte mac[] = {
0xDE, 0xCD, 0xAE, 0x0F, 0xFE, 0xED };
// Initialize the Ethernet server library
// with the IP address and port you want to use
// (port 80 is default for HTTP):
//IPAddress
//byte ip[] = {192, 168, 0, 169 };
IPAddress ip(192,168,1, 210);
//byte ip[] = {192, 168, 0, 167 };
void setup() {
delay(3000); // for debugging, a little delay makes things easier, for use, delete delay.
// Open serial communications and wait for port to open:
Serial.begin(9600);
while (!Serial) {
; // wait for serial port to connect. Needed for Leonardo only
}
Serial.println("Serial is ok!");
delay(1000);
// start the Ethernet connection:
/* if (Ethernet.begin(mac) == 0) {
Serial.println("Failed to configure Ethernet using DHCP");
// no point in carrying on, so do nothing forevermore:
for(;;)
;
}
*/
Ethernet.begin(mac,ip);
// print your local IP address:
Serial.print("My IP address: ");
for (byte thisByte = 0; thisByte < 4; thisByte++) {
// print the value of each byte of the IP address:
Serial.print(Ethernet.localIP()[thisByte], DEC);
Serial.print(".");
}
Serial.println();
// start the Ethernet connection and the server:
//server.begin();
Serial.print("server is at ");
Serial.println(Ethernet.localIP());
}
void loop() {
}

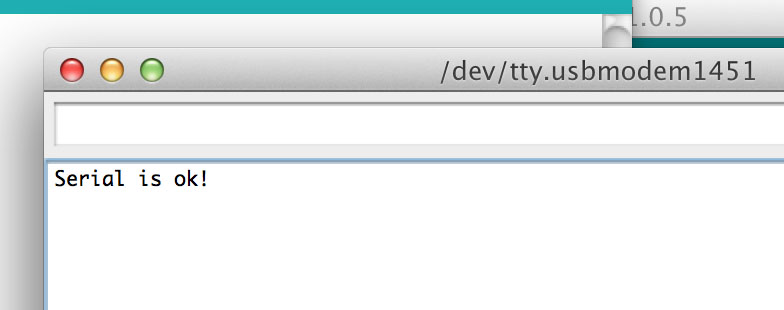

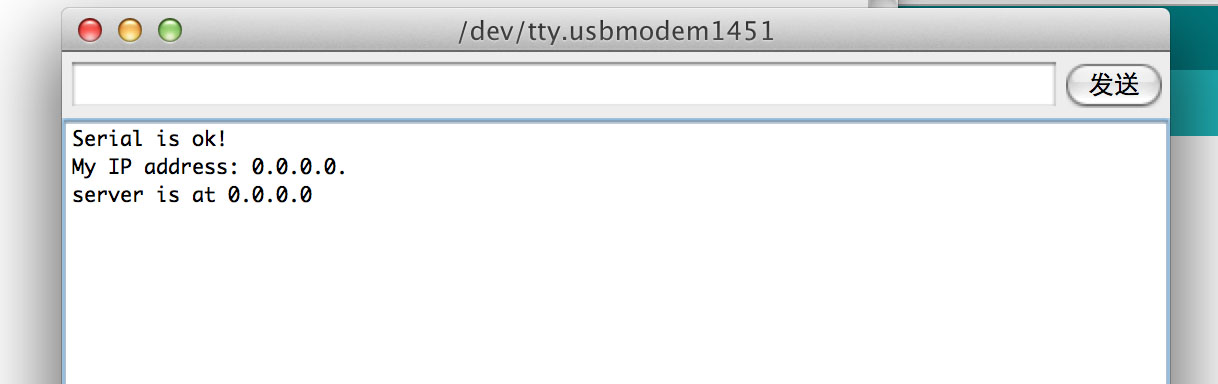

测试了你提供的代码，我在串口初始化成功后打印了一句“Serial is ok!”，然后继续初始化网口，结果显示：
My IP address: 0.0.0.0.
server is at 0.0.0.0
如果采用DHCP，输出了“Serial is ok!”后，就没有任何输出了。
我觉得即便是网络问题，设置固定IP也是应该可以设置的，有IP冲突等网络问题也应该只是影响通讯，但是现在是设置固定IP的时候会设置成0.0.0.0，而DHCP又没有任何响应。
有点要崩溃的感觉。用这块板子是要搭建一个很重要的应用原型测试，请尽快提供帮助，让我能继续下去。
测试过程中我发现，如果用我们网站上的样例代码，updown代码以后，需要拔掉断电或者Rset一下，等待一端时间，Arduino的串口才会出现IP Address。
一、采用Ethernet.begin(mac)，也就是试图DHCP取得ip地址，如果连接DHCP服务器，系统将死机，串口没有输出
二、采用Ethernet.begin(mac)，仍然用DHCP取得ip地址，如果没有DHCP服务器，串口输出提示“Failed to configure Ethernet using DHCP”，这个应该是正常的。

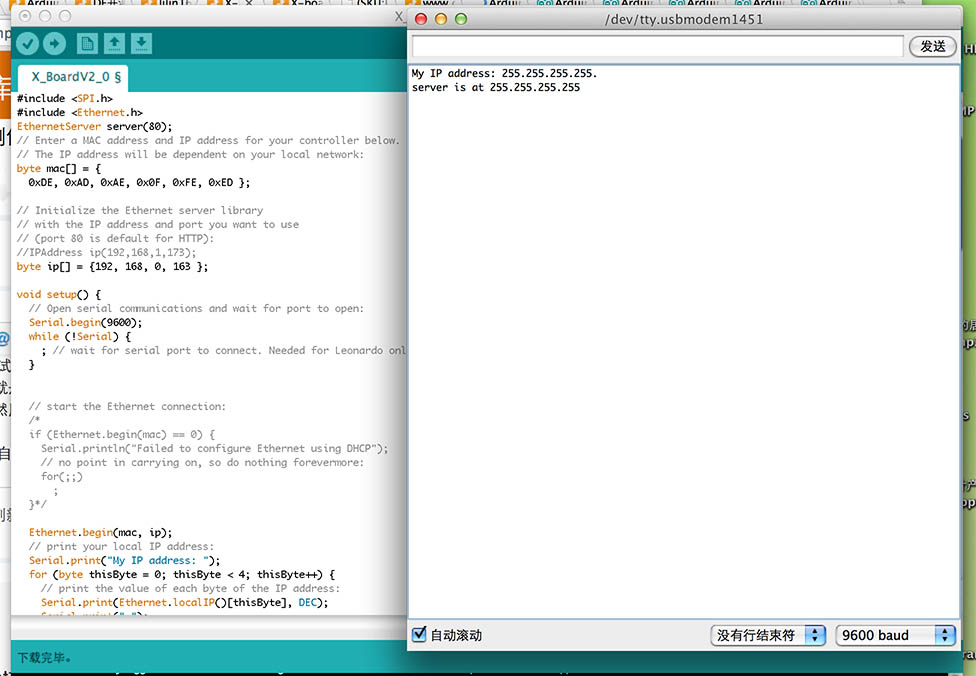

三、采用Ethernet.begin(mac, ip)，自设置ip地址的话，然后立刻打印ip地址，结果如下：
这就是最奇怪的地方了，IP地址被设置成了255.255.255.255。
代码如下：
/*
DFRobot X-board V2 Sample Code
A simple web server with DHPC capbabilty.
1)Get IP address from router automatically
2)Show the value of the analog input pins
created 28 Sep 2012
by Ricky
*/
#include
#include
EthernetServer server(80);
// Enter a MAC address and IP address for your controller below.
// The IP address will be dependent on your local network:
byte mac[] = {
0xDE, 0xAD, 0xAE, 0x0F, 0xFE, 0xED };
// Initialize the Ethernet server library
// with the IP address and port you want to use
// (port 80 is default for HTTP):
//IPAddress ip(192,168,1,173);
byte ip[] = {192, 168, 0, 163 };
void setup() {
// Open serial communications and wait for port to open:
Serial.begin(9600);
while (!Serial) {
; // wait for serial port to connect. Needed for Leonardo only
}
// start the Ethernet connection:
/*
if (Ethernet.begin(mac) == 0) {
Serial.println("Failed to configure Ethernet using DHCP");
// no point in carrying on, so do nothing forevermore:
for(;;)
;
}*/
Ethernet.begin(mac, ip);
// print your local IP address:
Serial.print("My IP address: ");
for (byte thisByte = 0; thisByte < 4; thisByte++) {
// print the value of each byte of the IP address:
Serial.print(Ethernet.localIP()[thisByte], DEC);
Serial.print(".");
}
Serial.println();
// start the Ethernet connection and the server:
server.begin();
Serial.print("server is at ");
Serial.println(Ethernet.localIP());
}
void loop() {
// listen for incoming clients
EthernetClient client = server.available();
if (client) {
Serial.println("new client");
// an http request ends with a blank line
boolean currentLineIsBlank = true;
while (client.connected()) {
if (client.available()) {
char c = client.read();
Serial.write(c);
// if you've gotten to the end of the line (received a newline
// character) and the line is blank, the http request has ended,
// so you can send a reply
if (c == '\n' && currentLineIsBlank) {
// send a standard http response header
client.println("HTTP/1.1 200 OK");
client.println("Content-Type: text/html");
client.println("Connnection: close");
client.println();
client.println("");
client.println("");
// add a meta refresh tag, so the browser pulls again every 5 seconds:
client.println("");
client.println("");
client.println("
client.println("
");
client.println("
// output the value of each analog input pin
for (int analogChannel = 0; analogChannel < 6; analogChannel++) {
int sensorReading = analogRead(analogChannel);
client.print("analog input ");
client.print(analogChannel);
client.print(" is ");
client.print(sensorReading);
client.println("
");
}
// output the value of each digital input pin
for (int digitalChannel = 2; digitalChannel < 10; digitalChannel++) {
int sensorReading = digitalRead(digitalChannel);
if(digitalChannel!=7&&digitalChannel!=8)
{
client.print("Digital input ");
client.print(digitalChannel);
client.print(" is ");
client.print(sensorReading);
client.println("
");
}
else
{
client.print("Relay ");
client.print(digitalChannel);
client.print(" is ");
client.print(sensorReading);
client.println("
");
}
}
client.println("
client.println("");
break;
}
if (c == '\n') {
// you're starting a new line
currentLineIsBlank = true;
}
else if (c != '\r') {
// you've gotten a character on the current line
currentLineIsBlank = false;
}
}
}
// give the web browser time to receive the data
delay(1);
// close the connection:
client.stop();
Serial.println("client disonnected");
}
}
测试无果后，到Arduino.cc上去看Ethernet.h的说明，在Ethernet.begin()说明中看到这么一句：
“mac: the MAC (Media access control) address for the device (array of 6 bytes). this is the Ethernet hardware address of your shield. Newer Arduino Ethernet Shields include a sticker with the device's MAC address. For older shields, choose your own.”
于是猜测，是不是我的板子是新的，MAC地址要用真实地址，不能自己设置？但是我已经找不到“sticker”了，不知道地址是什么？

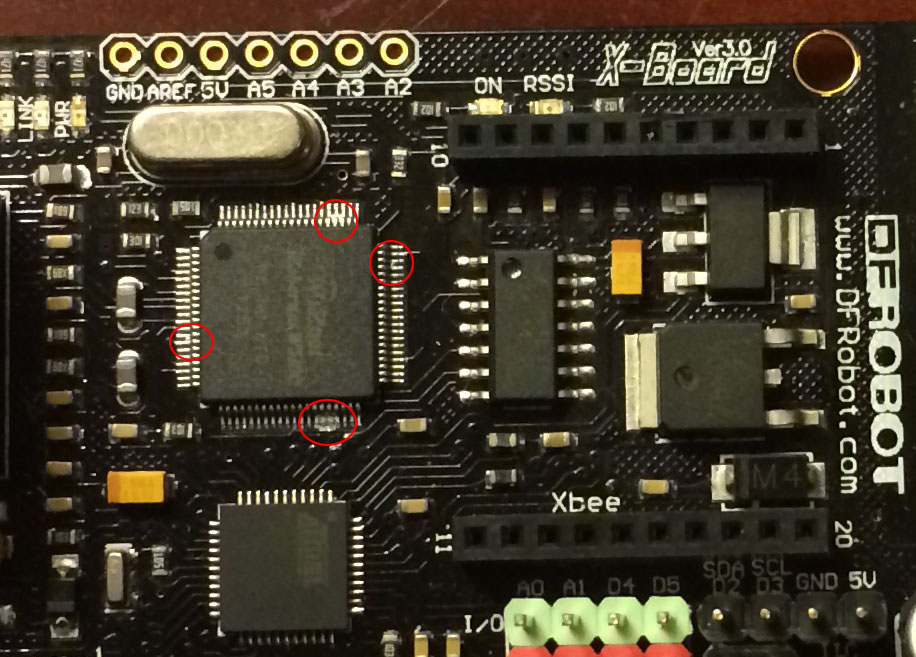

然后，不明白的事情出现了，我仔细观察板子，发现5100芯片的引脚上有几处焊接粘连点，附照片如下,请DFRobot的人帮忙判断一下，图片中红色圈内的焊接粘连是正常的还是不正常的，5100下面的Atmel焊接就没有这种粘连。
然后串口会得到一个IP地址
在网页上输入IP地址以后会出现IO口的数据
[/font][font=微软雅黑]
[/font]
[font=微软雅黑]样例代码没有问题，请检测你的硬件连接[/font]
while (!Serial) {
; // wait for serial port to connect. Needed for Leonardo only
}
注释掉后结果是一样的。
这段代码在自己写的测试程序中用或不用，似乎对串口通信的影响不大，目前看还是网络功能问题。
DFROBOT的人能用X-Board板试试吗？
