3D打印号角式音箱
2015-01-288031
AI 快速预览详细
这款3D打印号角式音箱由Akemake团队设计，灵感来源于深水鱿鱼的内部壳体形状。使用木丝材料（Timberfill）进行打印，无需支撑结构，确保了高质量的表面效果。整个音箱的制作成本约为120美元，包括4英寸驱动器、脚钉和RCA连接器等组件。该模型可在Akemake网站上免费下载，并将在多个设计展会上展出。

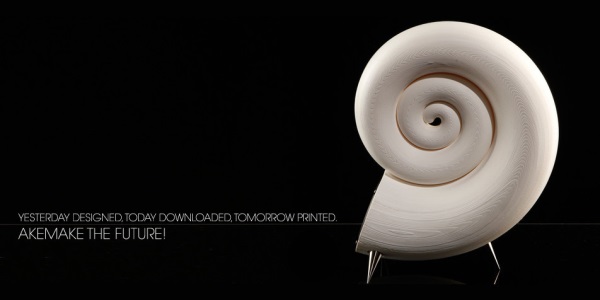

转自3ders.org 原文链接：http://www.3ders.org/articles/20 ... -free-download.htmlFirst 3D printed wooden Spirula speakers, model available for free download A team of design and technology enthusiasts at Akemake has created a beautiful speaker using 3D printing and wood filament. If you have your own 3D printer to make some of the components, this beautiful speaker can be built for just $120 in parts and materials. Inspired by the shape of the internal shell of spirula, a species of deep water squid-like cephalopod mollusk known as ram's horn squid, designer Ondra Chotovinsky of Akemake designed and printed the Spirula parts in just 18 hours, more specifically 2 x 9hrs.  "We print these speaker without support because we want to achieve the highest possible quality of the exposed surface and maintain the clarity of the printing pattern which makes it so unique." said Machal Kandler of Akemake. Afterwards both printed halves were bonded together using 2-component adhesive. "Assembly time is about two hours. This includes: bonding, bit of soldering and assembling components together (4" driver, 3 feet, audio connectors & cables)." Kandler explained.  The wood filament used for the Spirula 4.0 is Timberfill made by Fillamentum, "a material made from 100% natural materials and biodegradable in nature," according to the site. It sounds similiar as the Laywood-D3, a wood-based 3D printing filament invented by Kai Parthy, which contains 40% recycled wood and harmless binding polymers. After printing it looks and smells like wood and can also be handled like wood. "The weight of one speaker (without components) is roughly 650g, so it can printed out from one Timberfill roll." Kandler told us. "The printing cost is approximately $52 (again, purely the material per one speaker)."  As to the total cost, Kandler said Akemake has selected and used only the components which are available worldwide. For example:
So the total cost can be approximately $120 USD / per one speaker (no labor & printing time considered). This 3D printed model is the first speaker in the world printed from wood filament, says Kandler. The model is now available on Akemake website for free download, and will only be printed in really low volume depending on online demand. You can visit Akemake and see Spirula speakers exhibited on Design Terminal in Budapest (5-7 June www.designterminal.com), 3D Printshow in London (4-6 Sept, 3dprintshow.com) and TCT show in Birmingham (30 Sept – 2 Oct www.tctshow.com). |
