wido例程连接yeelink的问题
2015-04-201.7万
AI 快速预览详细
本文讨论了使用DFRobot Wido向Yeelink发送传感器数据时遇到的数据卡死问题。通过详细的故障排查步骤，用户可以解决这个问题，确保数据能够持续上传。具体步骤包括移除接收服务器回复的代码。
|

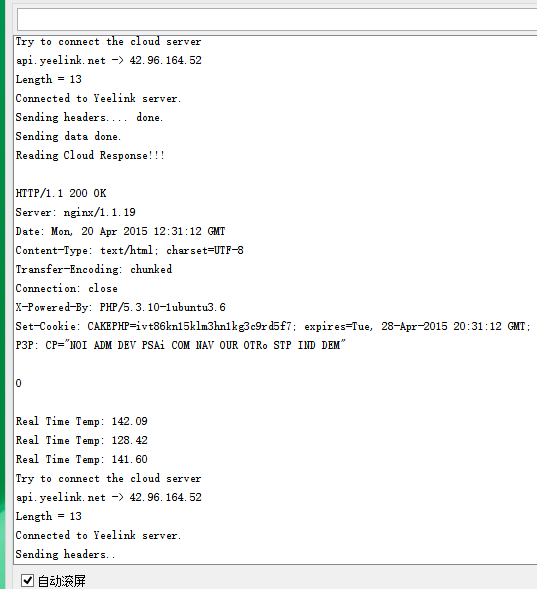

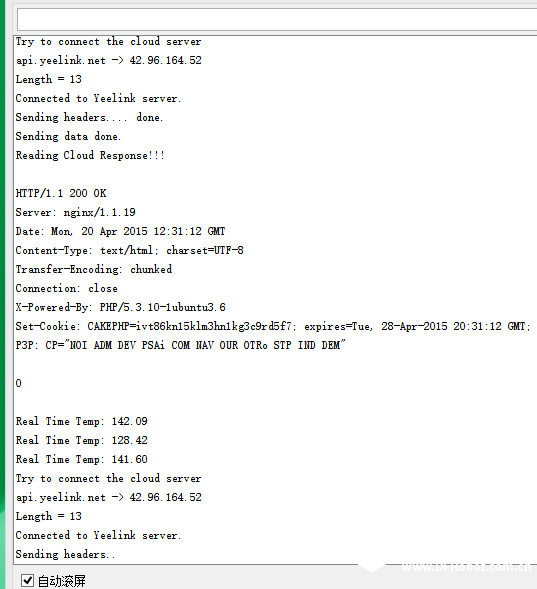

在使用wido的例程向yeelink发送传感器数据时，发送第一个数据，收到回复后，再发生地二个数据就死在哪里了。 如果把程序中接收服务器回复的程序去除，就可以不断上传数据。请求帮助！！ 附上例程 /*************************************************** * This is an example for the DFRobot Wido - Wifi Integrated IoT lite sensor and control node * Product Page & More info: https://www.dfrobot.com.cn/goods-997.html * Designed specifically to work with the DFRobot Wido products: * * The library is forked from Adafruit * * Written by Lauren * BSD license, all text above must be included in any redistribution * ****************************************************/ /* This example code is used to connect the Yeelink cloud service (Official homepage: www.yeelink.net). The device required is just: 1. LM35 low cost temperature sensor or any device you used to upload data 2. And Wido Note: Please don't forget to change the setting below before using! 1. WLAN_SSID & WlAN_PASS 2. API_key 3. device ID & sensor ID */ #include <Adafruit_CC3000.h> #include <ccspi.h> #include <SPI.h> #define Wido_IRQ 7 #define Wido_VBAT 5 #define Wido_CS 10 Adafruit_CC3000 Wido = Adafruit_CC3000(Wido_CS, Wido_IRQ, Wido_VBAT, SPI_CLOCK_DIVIDER); // you can change this clock speed // Security can be WLAN_SEC_UNSEC, WLAN_SEC_WEP, WLAN_SEC_WPA or WLAN_SEC_WPA2 #define WLAN_SECURITY WLAN_SEC_WPA2 #define WLAN_SSID "xxx" // cannot be longer than 32 characters! #define WLAN_PASS "xxxxxxxx" // For connecting router or AP, don't forget to set the SSID and password here!! #define TCP_TIMEOUT 3000 //#define CC3000_TINY_DRIVER #define WEBSITE "api.yeelink.net" #define API_key "xxxxxxx47dfb3c572bb770axxxxxxxx" // Update Your API Key. To get your API Key, please check the link below // http://www.yeelink.net/user/user_profile void setup(){ Serial.begin(115200); Serial.println(F("Hello, CC3000!\n")); /* Initialise the module */ Serial.println(F("\nInitialising the CC3000 ...")); if (!Wido.begin()) { Serial.println(F("Unable to initialise the CC3000! Check your wiring?")); while(1); } /* Attempt to connect to an access point */ char *ssid = WLAN_SSID; /* Max 32 chars */ Serial.print(F("\nAttempting to connect to ")); Serial.println(ssid); /* NOTE: Secure connections are not available in 'Tiny' mode! By default connectToAP will retry indefinitely, however you can pass an optional maximum number of retries (greater than zero) as the fourth parameter. */ if (!Wido.connectToAP(WLAN_SSID, WLAN_PASS, WLAN_SECURITY)) { Serial.println(F("Failed!")); while(1); } Serial.println(F("Connected!")); /* Wait for DHCP to complete */ Serial.println(F("Request DHCP")); while (!Wido.checkDHCP()) { delay(100); // ToDo: Insert a DHCP timeout! } } uint32_t ip = 0; float temp = 123; void loop(){ static Adafruit_CC3000_Client WidoClient; static unsigned long RetryMillis = 0; static unsigned long uploadtStamp = 0; static unsigned long sensortStamp = 0; if(!WidoClient.connected() && millis() - RetryMillis > TCP_TIMEOUT){ // Update the time stamp RetryMillis = millis(); Serial.println(F("Try to connect the cloud server")); WidoClient.close(); // Get Yeelink IP address Serial.print(F("api.yeelink.net -> ")); while (ip == 0) { if (!Wido.getHostByName(WEBSITE, &ip)) { // Get the server IP address based on the domain name Serial.println(F("Couldn't resolve!")); } delay(500); } Wido.printIPdotsRev(ip); Serial.println(F("")); // Connect to the Yeelink Server WidoClient = Wido.connectTCP(ip, 80); // Try to connect cloud server } if(WidoClient.connected() && millis() - uploadtStamp > 2000){ uploadtStamp = millis(); // If the device is connected to the cloud server, upload the data every 2000ms. // Prepare Http Package for Yeelink & get length int length = 0; char lengthstr[3]; // Create Http data package char httpPackage[60] = ""; strcat(httpPackage,"{\"value\":"); itoa(temp,httpPackage+strlen(httpPackage),10); // push the data(temp) to the http data package strcat(httpPackage,"}"); length = strlen(httpPackage); // get the length of data package itoa(length,lengthstr,10); // convert int to char array for posting Serial.print(F("Length = ")); Serial.println(length); Serial.println(F("Connected to Yeelink server.")); // Send headers Serial.print(F("Sending headers")); WidoClient.fastrprint(F("POST /v1.0/device/")); WidoClient.fastrprint(F("10000/sensor/10000/datapoints")); //Please change your device ID and sensor ID here, after creating //Please check the link: http://www.yeelink.net/user/devices //The example URL: http://api.yeelink.net/v1.0/device/100/sensor/20/datapoints WidoClient.fastrprintln(F(" HTTP/1.1")); Serial.print(F(".")); WidoClient.fastrprintln(F("Host: api.yeelink.net")); Serial.print(F(".")); WidoClient.fastrprint(F("U-ApiKey: ")); WidoClient.fastrprintln(API_key); Serial.print(F(".")); WidoClient.fastrprint("Content-Length: "); WidoClient.fastrprintln(lengthstr); WidoClient.fastrprintln(""); Serial.print(F(".")); Serial.println(F(" done.")); // Send data Serial.print(F("Sending data")); WidoClient.fastrprintln(httpPackage); Serial.println(F(" done.")); /********** Get the http page feedback ***********/ unsigned long rTimer = millis(); Serial.println(F("Reading Cloud Response!!!\r\n")); while (millis() - rTimer < 2000) { while (WidoClient.connected() && WidoClient.available()) { char c = WidoClient.read(); Serial.print(c); } } delay(1000); // Wait for 1s to finish posting the data stream WidoClient.close(); // Close the service connection RetryMillis = millis(); // Reset the timer stamp for applying the connection with the service } if(millis() - sensortStamp > 1000){ sensortStamp = millis(); // read the LM35 sensor value and convert to the degrees every 100ms. int reading = analogRead(0); temp = reading *0.0048828125*100; Serial.print(F("Real Time Temp: ")); Serial.println(temp); } } |
-
