安心摸鱼？用微波运动传感器提前预警！🚀

鱼儿很美，摸鱼儿快乐

朝九晚五的长时间工作容易让效率变低，我们需要适当“微休息”，上班时间摸鱼就是一种 “微休息行为”，是一种针对心理资源的管理策略。劳逸结合，调节心态，通过短暂的微休息行为来恢复我们整个工作中消耗的心理资源，并获得更多的积极情绪，所以，我认为一定能促进工作效率呢。

但是，大多数领导们对于这种上班行为当然是看不惯，因为很可能不能按时完成工作任务啊。

所以“摸鱼”时，我们的内心一定不可能安定！

为此，这里推荐用“微波运动传感器”来检测我的周围环境动态，做到提前预警，随时切换到工作状态！

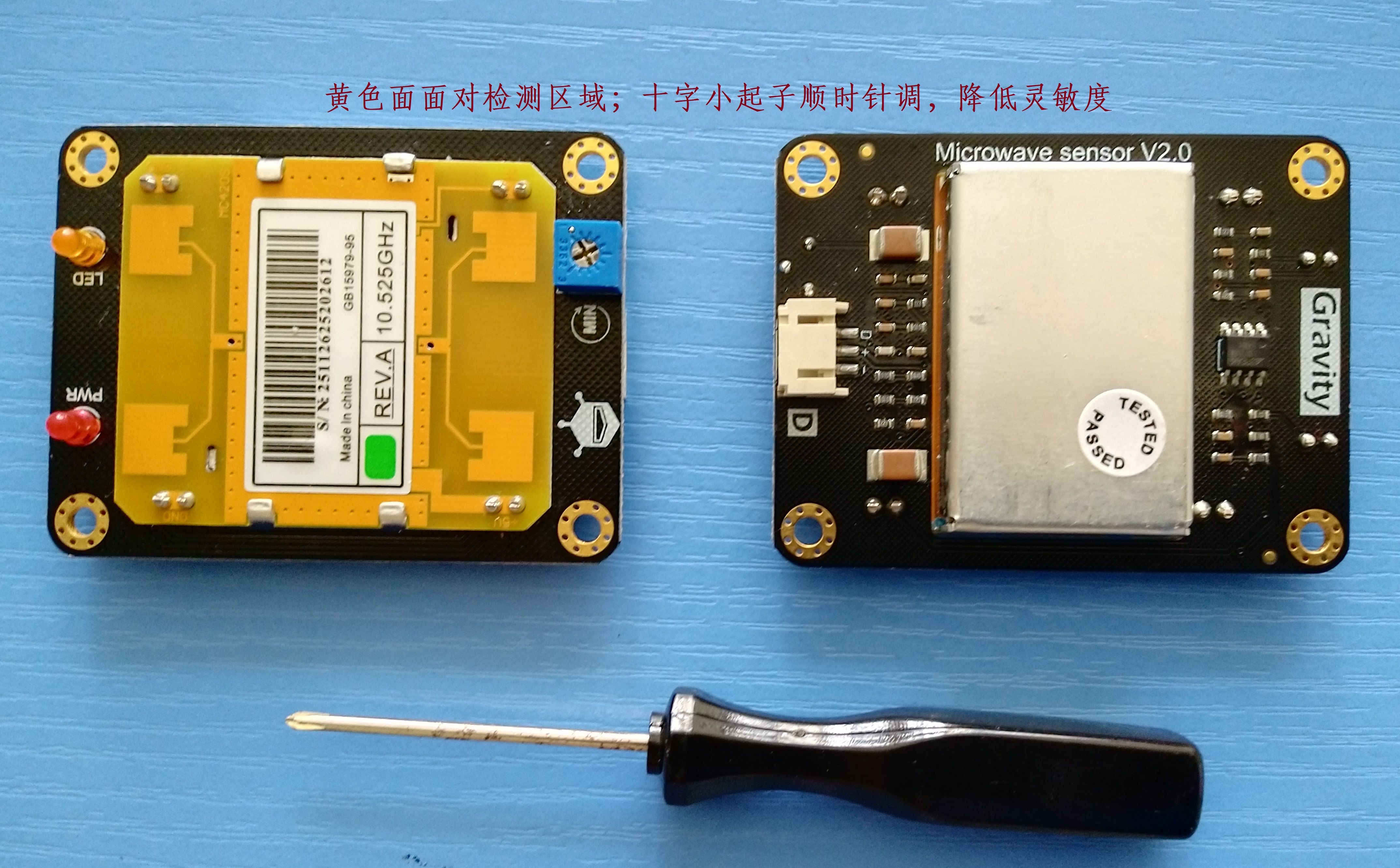

查阅到微波运动传感器的优点如下 ~

微波探测方式与其它探测方式相比：
非接触探测；
不受温度、湿度、噪声、气流、尘埃、光线等影响，适合恶劣环境；
抗射频干扰能力强；
输出功率小，对人体构不成危害；
探测距离远（本模块2-16米）；
支持对非生命类物体的检测；
微波的方向性很好，能够穿透任何非金属物体（很容易隐藏它），速度等于光速；
寿命长，大于100000小时，高可靠性、稳定性。

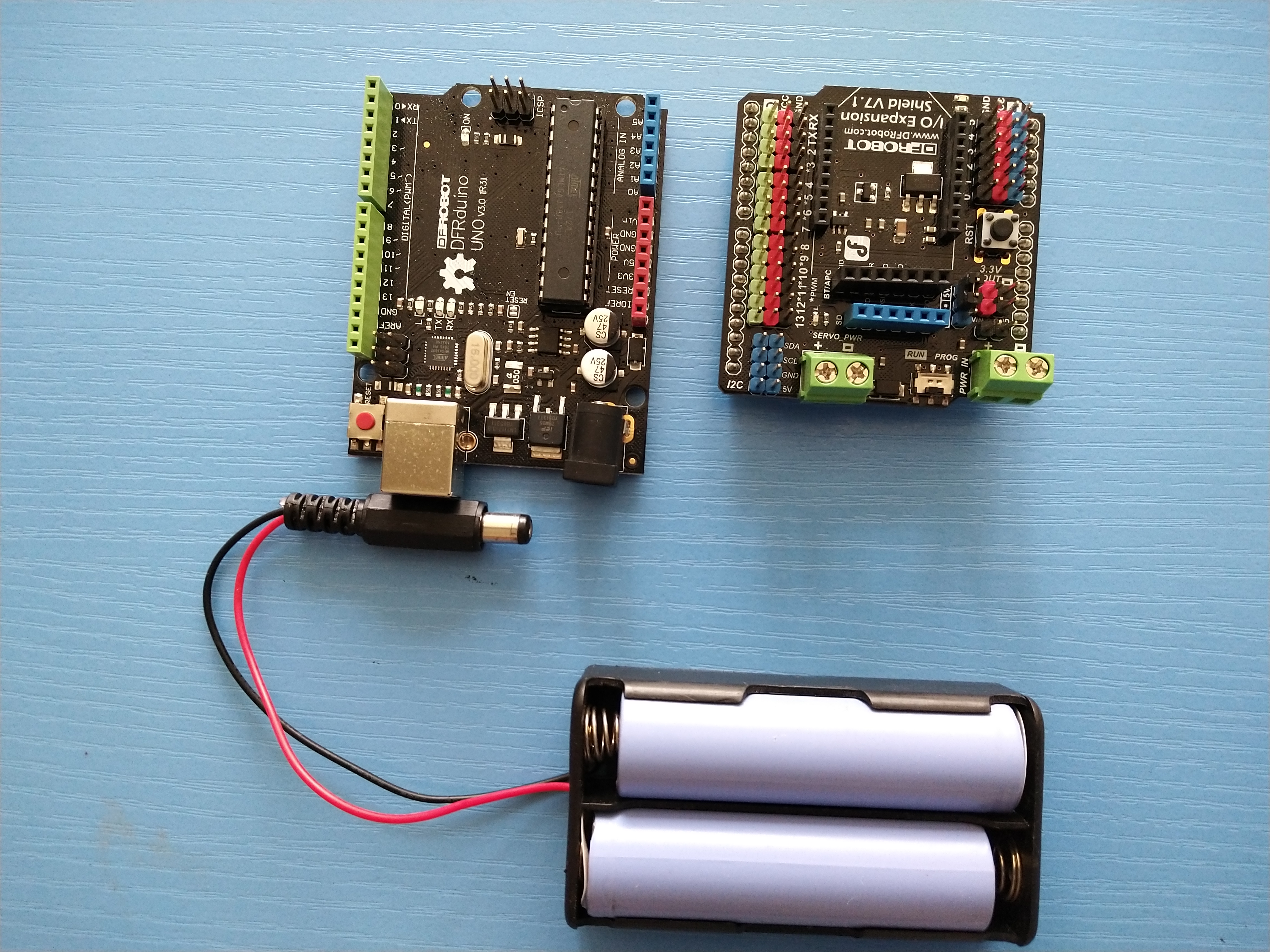

Arduino控制板

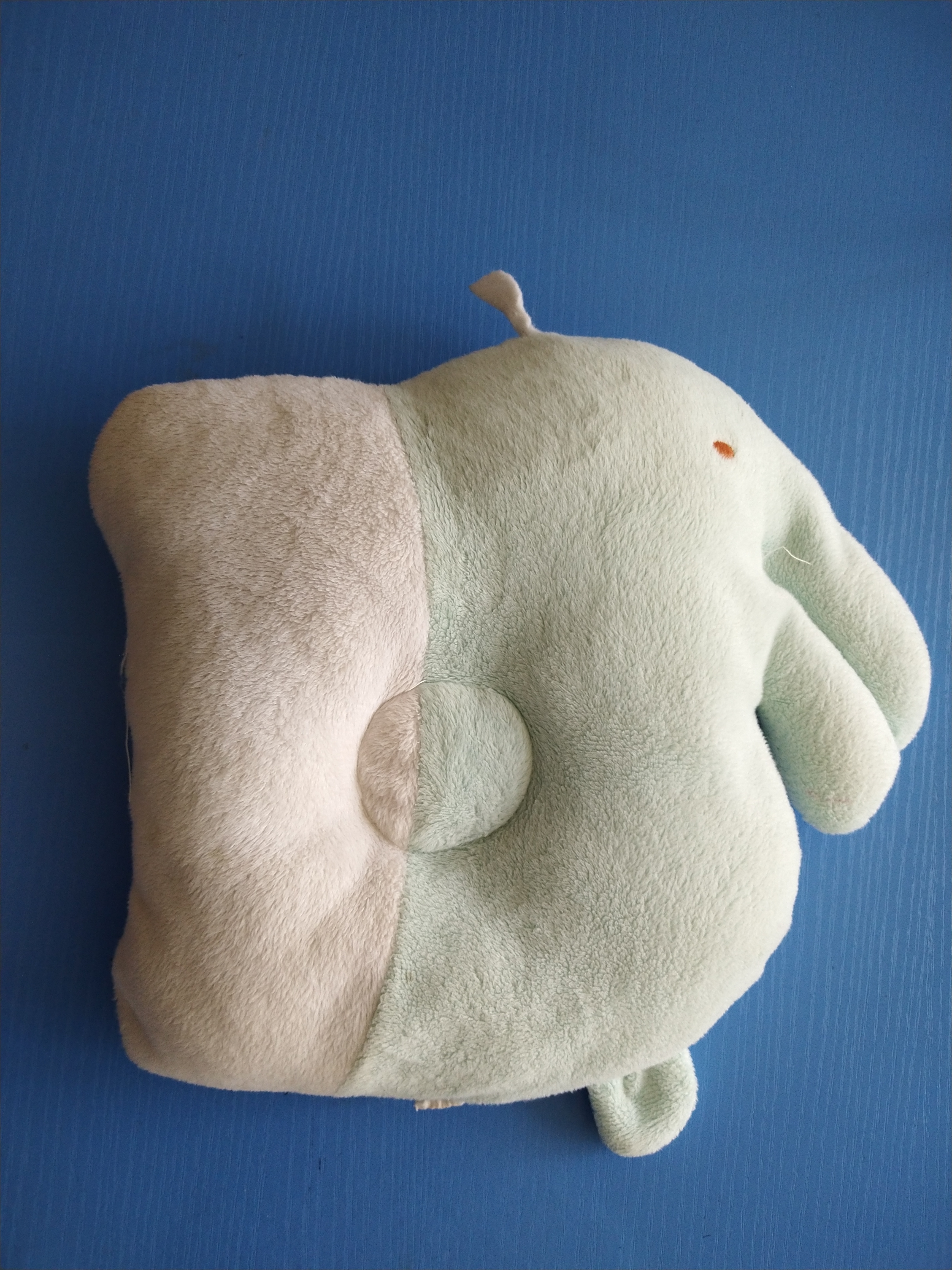

遮蔽物用于隐藏

检测预警灯（红、黄）

接线图（与下面程序相关）

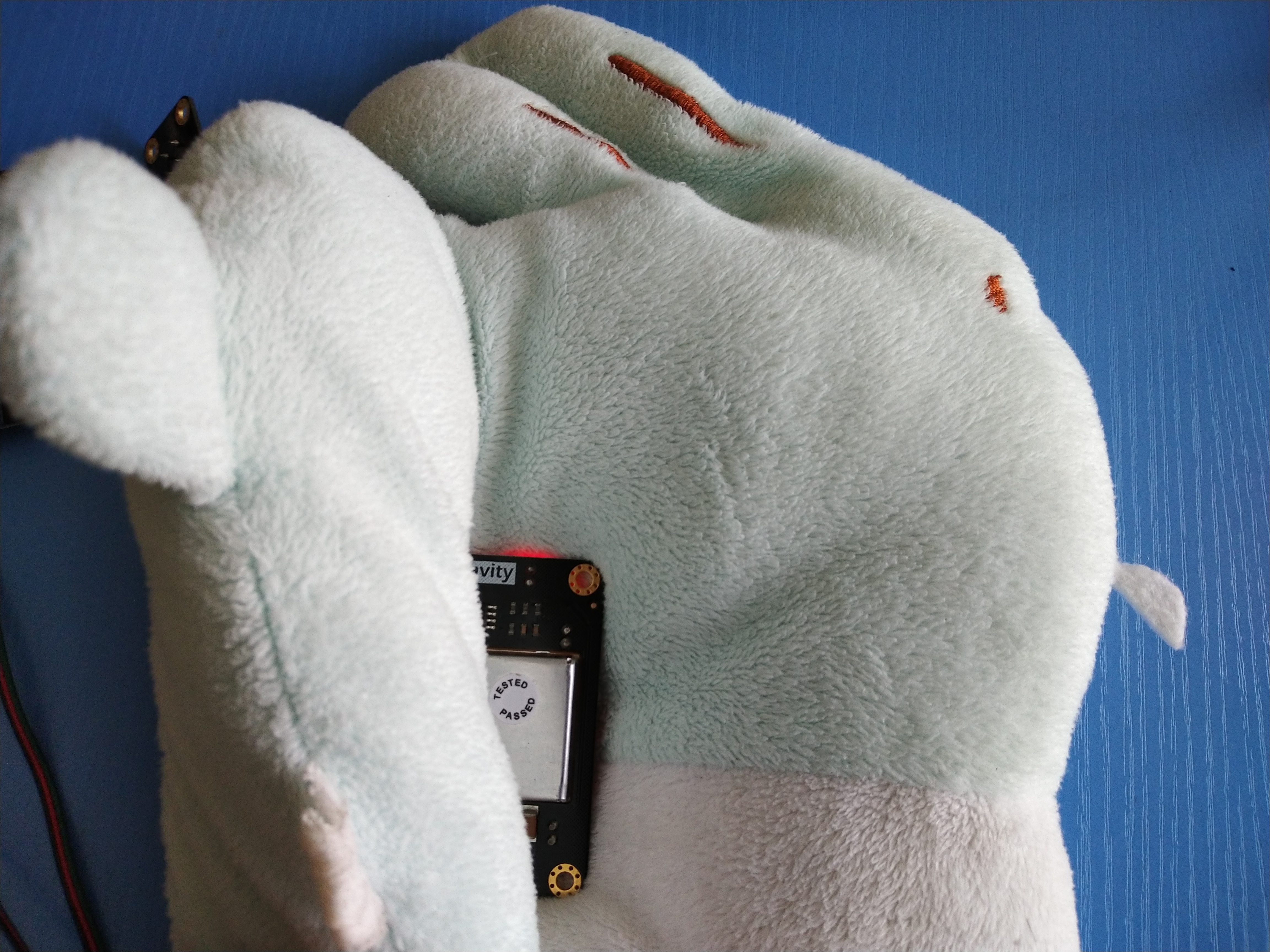

隐藏模块

两个模块配合检测角度更广

/***********Notice and Trouble shooting***************
  1.Connection and Diagram can be found here
  <https://wiki.dfrobot.com.cn/index.php?title=%28SKU:SEN0192%29_Microwave_sensor%E5%BE%AE%E6%B3%A2%E4%BC%A0%E6%84%9F%E5%99%A8%E6%A8%A1%E5%9D%97>
  2.This code is tested on Arduino Uno, Leonardo, Mega boards.
  3.arduino Timer library is created by jonoxer.
  See <https://www.dfrobot.com.cn/images/upload/File/SEN0192/20160112134309yy5nus.zip arduino Timer library> for details.
 ****************************************************/
#include <MsTimer2.h>           //Timer interrupt function
int pbfIn = 0;  // Define the interrupt PIN is 0, that is, digital pins 2
int pbbIn = 1;
int ledfOut = 10;
int ledbOut = 11;
int countf = 0;
int countb = 0;
volatile int statef = LOW;       //Define ledOut, default is off
volatile int stateb = LOW;

void setup()
{
  Serial.begin(9600);
  pinMode(ledfOut, OUTPUT);
  pinMode(ledbOut, OUTPUT);
  attachInterrupt(pbfIn, statefChange, FALLING); // Sets the interrupt function, falling edge triggered interrupts.
  attachInterrupt(pbbIn, statebChange, FALLING);
  MsTimer2::set(100, process); // Set the timer interrupt time 1000ms
  MsTimer2::start();//Timer interrupt start

}

void loop()
{
//  Serial.println(count); // Printing times of 1000ms suspension
  delay(1);
  if (statef == HIGH ||stateb == HIGH) //When moving objects are detected later, 2s shut down automatically after the ledout light is convenient.
  {
    delay(100); //2000
    if(statef == HIGH){
      statef = LOW;
      digitalWrite(ledfOut, statef);    //Turn off led
    }
    if(stateb == HIGH){
      stateb = LOW;
      digitalWrite(ledbOut, stateb);    //Turn off led
    }
  }

}


void statefChange()  //Interrupt function
{
  countf++;

}
void statebChange()  //Interrupt function
{
  countb++;

}

void process()   //Timer handler
{
  if (countf > 10) //1000ms interrupt number greater than 1 is considered detected a moving object (this value can be adjusted according to the actual situation, equivalent to adjust the detection threshold of the speed of a moving object)
  {
    statef = HIGH;
    digitalWrite(ledfOut, statef);    //Lighting led
    countf = 0; //Count zero
  }
  if (countb > 10) //1000ms interrupt number greater than 1 is considered detected a moving object (this value can be adjusted according to the actual situation, equivalent to adjust the detection threshold of the speed of a moving object)
  {
    stateb = HIGH;
    digitalWrite(ledbOut, stateb);    //Lighting led
    countb = 0; //Count zero

  }
//  else
//    count = 0; //In 1000ms, interrupts does not reach set threshold value is considered not detect moving objects, interrupt the count number is cleared to zero.
}
