用ASRPRO-Plus实现语音控制灯光 🎨✨

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色

2023-11-024469

驴友花雕

UID: 1737

2964文章

158粉丝

1.1万获取喜欢

精华项目

AI 快速预览详细

本项目介绍了如何使用ASRPRO-Plus开发板通过语音控制WS2812B LED模块的点亮和变色。硬件清单包括ASRPRO-Plus开发板和WS2812B LED模块。最终效果是通过语音命令词如“打开红灯”、“关闭蓝灯”等，直接控制LED模块的颜色变化。难度等级适中，适合STEM教育和零基础新手。

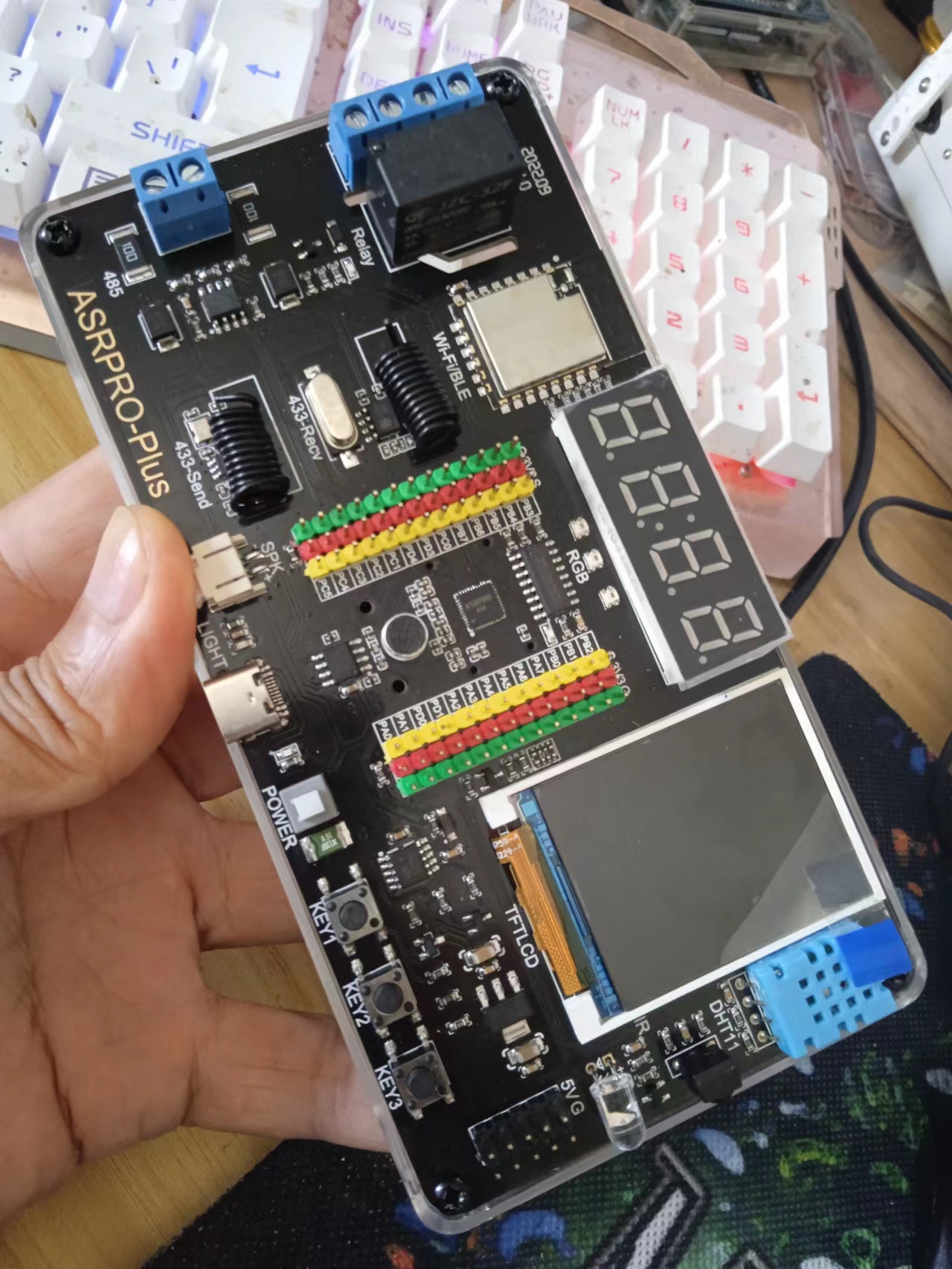

ASRPRO-Plus开发板

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色图1

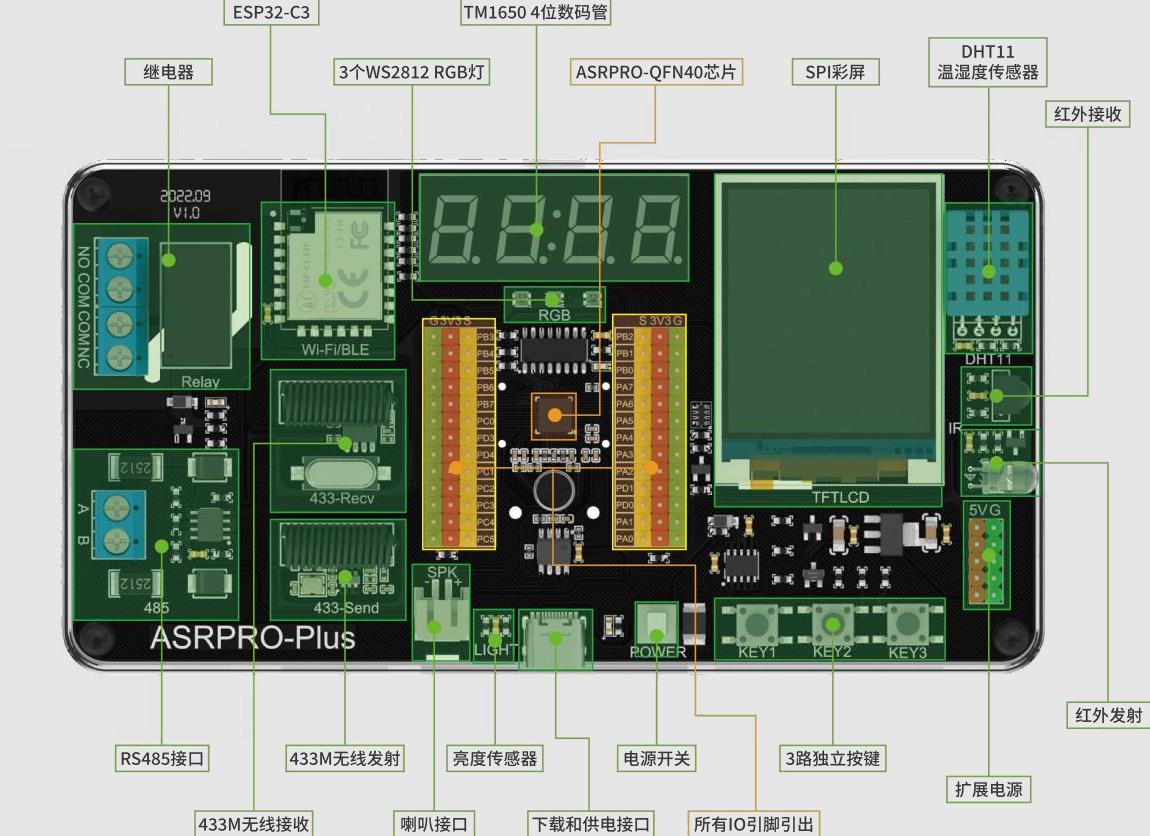

板子基本介绍

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色图2

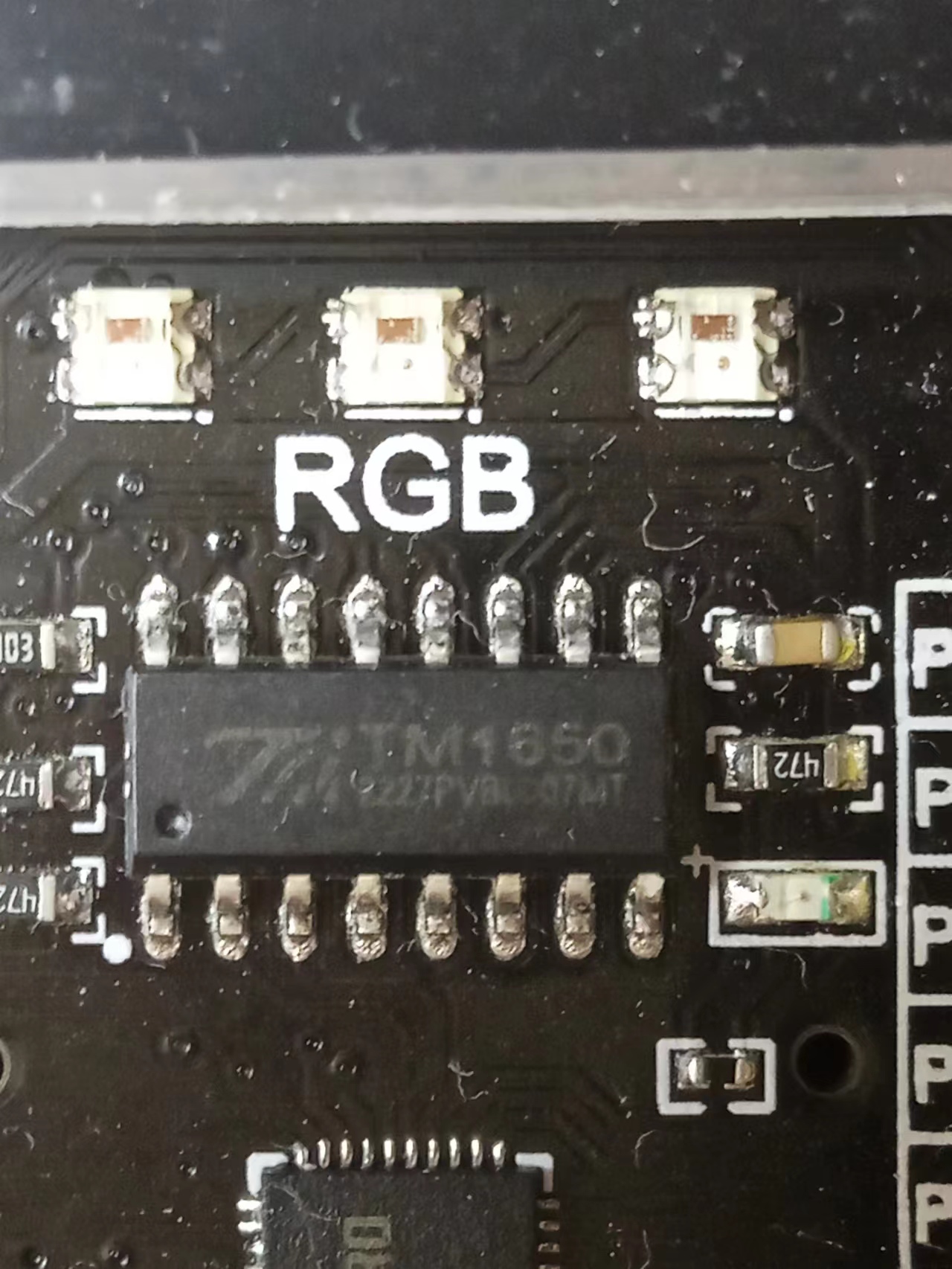

本例实验的RGB LED模块：

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色图3

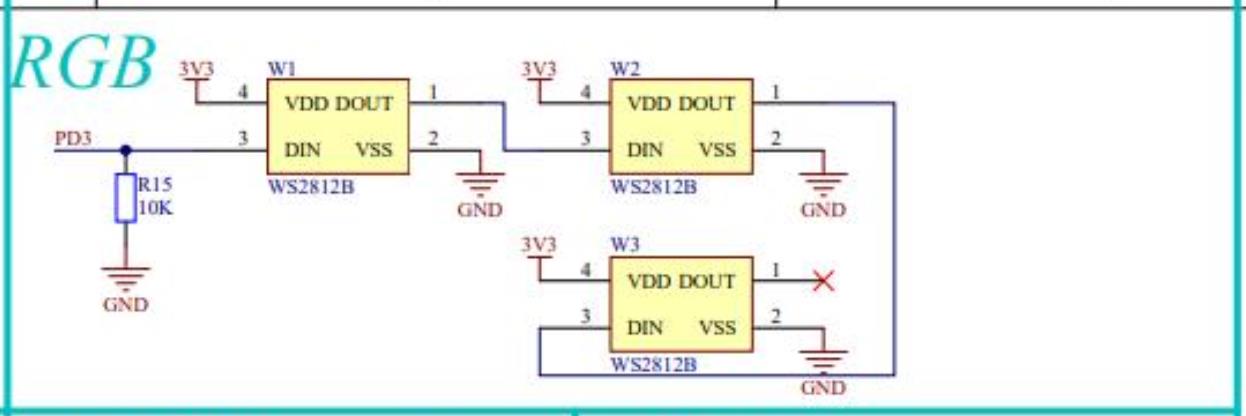

本例实验的RGB LED模块的电原理图

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色图4

实验之四：通过语音控制，WS2812B的点亮和变色
实验开源代码

#include "asr.h"
extern "C"{ void * __dso_handle = 0 ;}
#include "setup.h"
#include "myLib/asr_event.h"
#include "myLib/asr_ws2812.h"

uint32_t snid;
void hardware_init();

//{ID:250,keyword:"命令词",ASR:"最大音量",ASRTO:"音量调整到最大"}
//{ID:251,keyword:"命令词",ASR:"中等音量",ASRTO:"音量调整到中等"}
//{ID:252,keyword:"命令词",ASR:"最小音量",ASRTO:"音量调整到最小"}
WS2812 ASR_WS2812_27(27);
void ASR_CODE()
{
  //{ID:500,keyword:"命令词",ASR:"打开灯光",ASRTO:"灯光已打开"}
  if(snid == 500){
    ASR_WS2812_27.pixel_set_all_color(240,240,240);
    ASR_WS2812_27.pixel_show();
  }
  //{ID:501,keyword:"命令词",ASR:"关闭灯光",ASRTO:"灯光已关闭"}
  if(snid == 501){
    ASR_WS2812_27.pixel_set_all_color(0,0,0);
    ASR_WS2812_27.pixel_show();
    digital_write(4,1);
  }
  //{ID:502,keyword:"唤醒词",ASR:"智能管家",ASRTO:"我在呢"}
  if(snid == 502){
    digital_write(4,0);
  }
  //{ID:503,keyword:"命令词",ASR:"打开红灯",ASRTO:"红灯已打开"}
  if(snid == 503){
    ASR_WS2812_27.setBrightness(150);
    ASR_WS2812_27.pixel_set_all_color(255,0,0);
    ASR_WS2812_27.pixel_show();
  }
  //{ID:504,keyword:"命令词",ASR:"打开蓝灯",ASRTO:"蓝灯已打开"}
  if(snid == 504){
    ASR_WS2812_27.setBrightness(250);
    ASR_WS2812_27.pixel_set_all_color(0,0,255);
    ASR_WS2812_27.pixel_show();
  }
  //{ID:505,keyword:"命令词",ASR:"关闭红灯",ASRTO:"红灯已关闭"}
  if(snid == 505){
    ASR_WS2812_27.pixel_set_all_color(0,0,0);
    ASR_WS2812_27.pixel_show();
  }
  //{ID:506,keyword:"命令词",ASR:"关闭蓝灯",ASRTO:"蓝灯已关闭"}
  if(snid == 506){
    ASR_WS2812_27.pixel_set_all_color(0,0,0);
    ASR_WS2812_27.pixel_show();
  }
  //{ID:507,keyword:"命令词",ASR:"打开绿灯",ASRTO:"绿灯已打开"}
  if(snid == 507){
    ASR_WS2812_27.setBrightness(200);
    ASR_WS2812_27.pixel_set_all_color(0,255,0);
    ASR_WS2812_27.pixel_show();
  }
  //{ID:508,keyword:"命令词",ASR:"关闭绿灯",ASRTO:"绿灯已关闭"}
  if(snid == 508){
    ASR_WS2812_27.pixel_set_all_color(0,0,0);
    ASR_WS2812_27.pixel_show();
  }
}

void hardware_init(){
  ASR_WS2812_27.pixel_init(3);
  vTaskDelete(NULL);
}

void setup()
{
  //{speak:橙子-甜美客服,vol:20,speed:10,platform:haohaodada}
  //{playid:10001,voice:欢迎使用AI智能语音助手，用智能管家唤醒我}
  //{playid:10002,voice:我要退下了，用智能管家唤醒我}
  digital_write((4),1);
  xTaskCreate(hardware_init,"hardware_init",256,NULL,100,NULL);
}
复制代码

天问Block（标准模式）训练模型与烧录

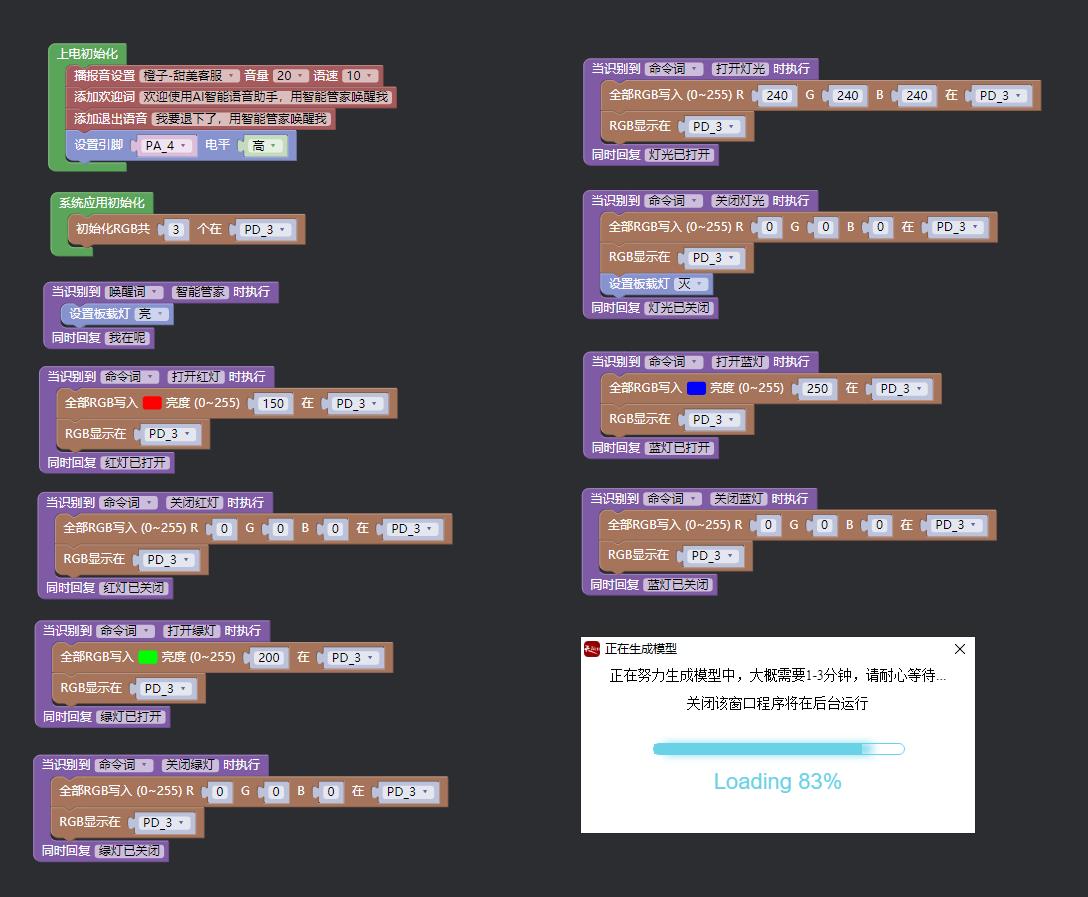

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色图5

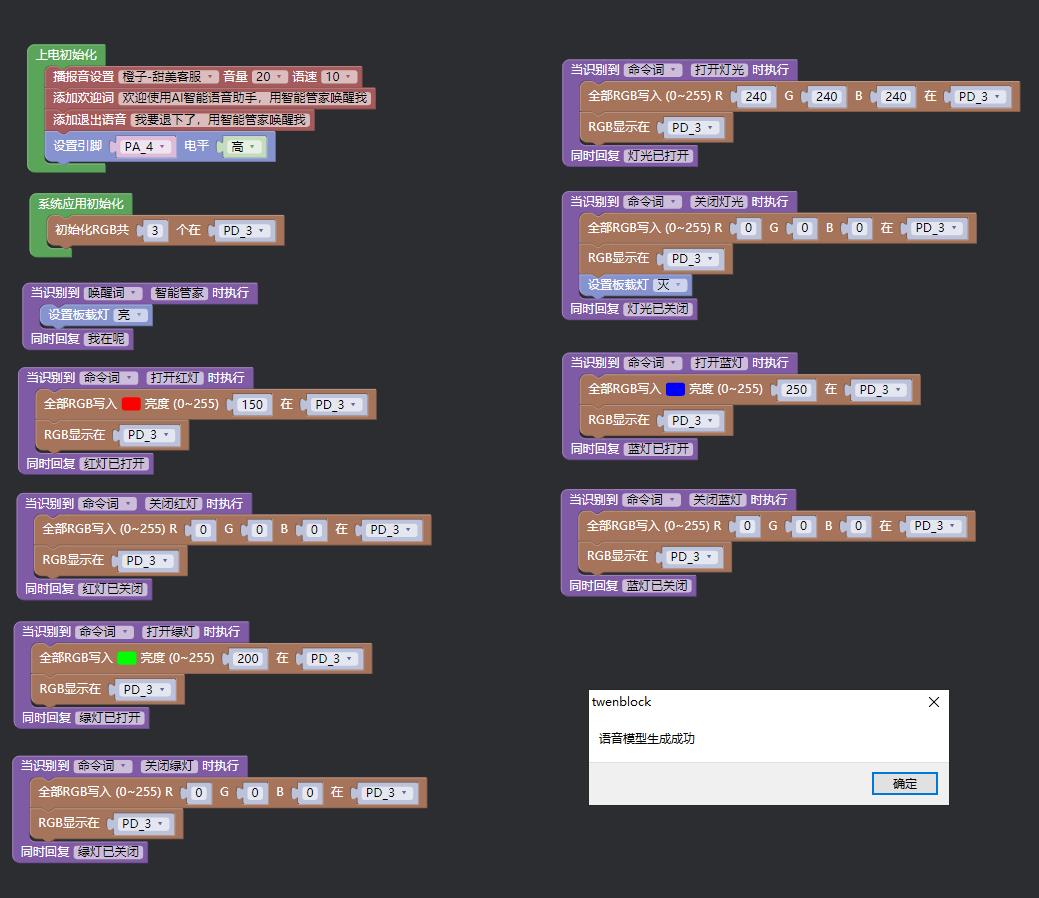

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色图6

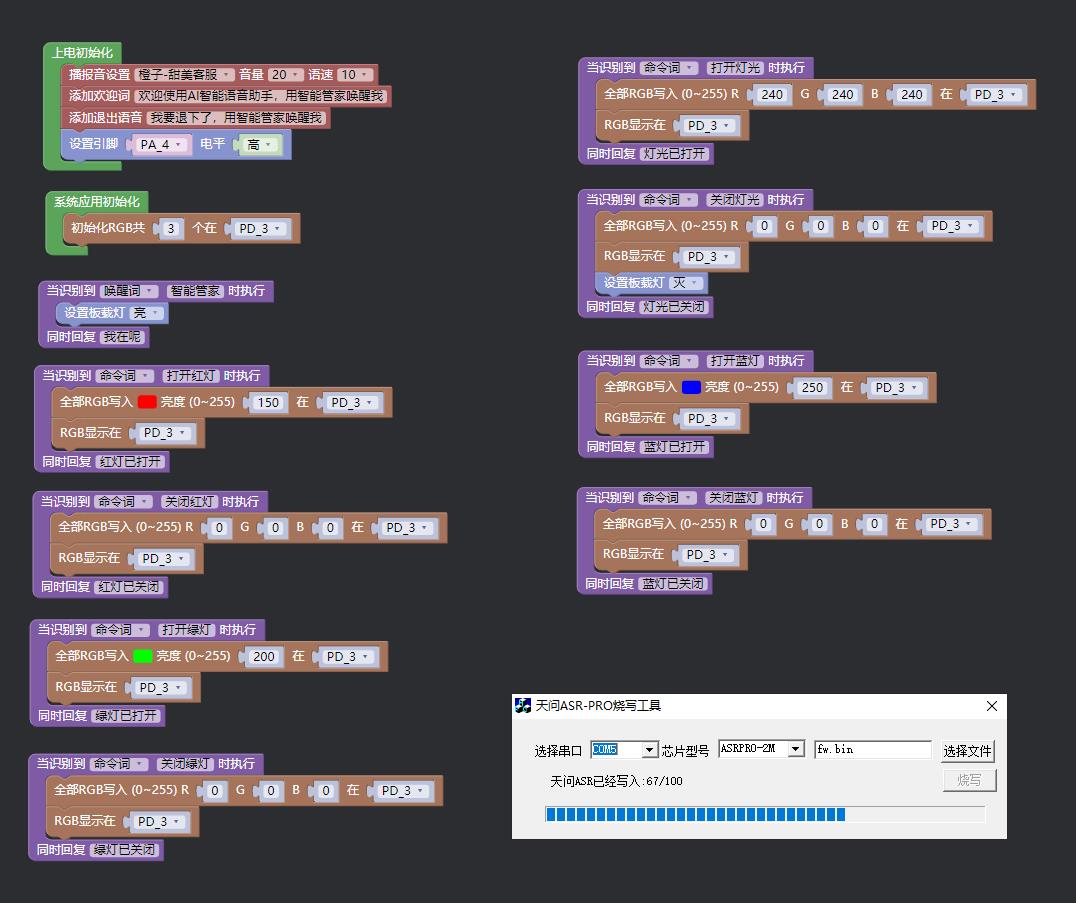

【花雕动手做】ASRPRO-Plus语音识别（05）---WS2812B的点亮和变色图7

实验视频：

https://www.bilibili.com/video/BV1XN4y16765/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987

评论(2)

作者

实验之六：语音控制WS2812B，实现单个灯珠的颜色变化
实验开源代码
[code]#include "asr.h"
extern "C"{ void * __dso_handle = 0 ;}
#include "setup.h"
#include "myLib/asr_event.h"
#include "myLib/asr_ws2812.h"
uint32_t snid;
void hardware_init();
//{ID:250,keyword:"命令词",ASR:"最大音量",ASRTO:"音量调整到最大"}
//{ID:251,keyword:"命令词",ASR:"中等音量",ASRTO:"音量调整到中等"}
//{ID:252,keyword:"命令词",ASR:"最小音量",ASRTO:"音量调整到最小"}
WS2812 ASR_WS2812_27(27);
void ASR_CODE()
{
//{ID:500,keyword:"命令词",ASR:"打开灯光",ASRTO:"灯光已打开"}
if(snid == 500){
ASR_WS2812_27.pixel_set_all_color(200,200,200);
ASR_WS2812_27.pixel_show();
}
//{ID:501,keyword:"命令词",ASR:"关闭灯光",ASRTO:"灯光已关闭"}
if(snid == 501){
ASR_WS2812_27.pixel_set_all_color(0,0,0);
ASR_WS2812_27.pixel_show();
digital_write(4,1);
}
//{ID:502,keyword:"唤醒词",ASR:"智能管家",ASRTO:"我在呢"}
if(snid == 502){
digital_write(4,0);
}
//{ID:503,keyword:"命令词",ASR:"不错呀",ASRTO:"谢谢夸奖"}
if(snid == 503){
}
//{ID:504,keyword:"命令词",ASR:"彩虹呼吸",ASRTO:"已执行"}
if(snid == 504){
ASR_WS2812_27.rainbowCycle(5);
ASR_WS2812_27.pixel_show();
}
//{ID:505,keyword:"命令词",ASR:"还有什么变化",ASRTO:"三个灯不同颜色"}
if(snid == 505){
}
//{ID:506,keyword:"命令词",ASR:"那我试试",ASRTO:"请开始你的表演"}
if(snid == 506){
}
//{ID:507,keyword:"命令词",ASR:"红蓝绿",ASRTO:"红蓝绿灯已打开"}
if(snid == 507){
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(0,255,0,0);
ASR_WS2812_27.setBrightness(250);
ASR_WS2812_27.pixel_set_color(1,0,0,255);
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(2,0,255,0);
ASR_WS2812_27.pixel_show();
}
//{ID:508,keyword:"命令词",ASR:"红灯",ASRTO:"一个灯"}
if(snid == 508){
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(0,255,0,0);
ASR_WS2812_27.setBrightness(0);
ASR_WS2812_27.pixel_set_color(1,0,136,255);
ASR_WS2812_27.setBrightness(0);
ASR_WS2812_27.pixel_set_color(2,136,0,255);
ASR_WS2812_27.pixel_show();
}
//{ID:509,keyword:"命令词",ASR:"蓝红绿",ASRTO:"蓝红绿灯已打开"}
if(snid == 509){
ASR_WS2812_27.setBrightness(250);
ASR_WS2812_27.pixel_set_color(0,0,0,255);
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(1,255,0,0);
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(2,0,255,0);
ASR_WS2812_27.pixel_show();
}
//{ID:510,keyword:"命令词",ASR:"蓝灯",ASRTO:"二个灯"}
if(snid == 510){
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(0,0,0,255);
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(1,0,0,255);
ASR_WS2812_27.setBrightness(0);
ASR_WS2812_27.pixel_set_color(2,255,255,0);
ASR_WS2812_27.pixel_show();
}
//{ID:511,keyword:"命令词",ASR:"绿蓝红",ASRTO:"绿蓝红灯已打开"}
if(snid == 511){
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(0,0,255,0);
ASR_WS2812_27.setBrightness(250);
ASR_WS2812_27.pixel_set_color(1,0,0,255);
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(2,255,0,0);
ASR_WS2812_27.pixel_show();
}
//{ID:512,keyword:"命令词",ASR:"绿灯",ASRTO:"三个灯"}
if(snid == 512){
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(0,0,255,0);
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(1,0,255,0);
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_color(2,0,255,0);
ASR_WS2812_27.pixel_show();
}
}
void hardware_init(){
ASR_WS2812_27.pixel_init(3);
vTaskDelete(NULL);
}
void setup()
{
//{speak:橙子-甜美客服,vol:20,speed:10,platform:haohaodada}
//{playid:10001,voice:欢迎使用人工智能AI语音助手，用智能管家唤醒我}
//{playid:10002,voice:我要退下了，用智能管家唤醒我}
digital_write((4),1);
xTaskCreate(hardware_init,"hardware_init",256,NULL,100,NULL);
}[/code]

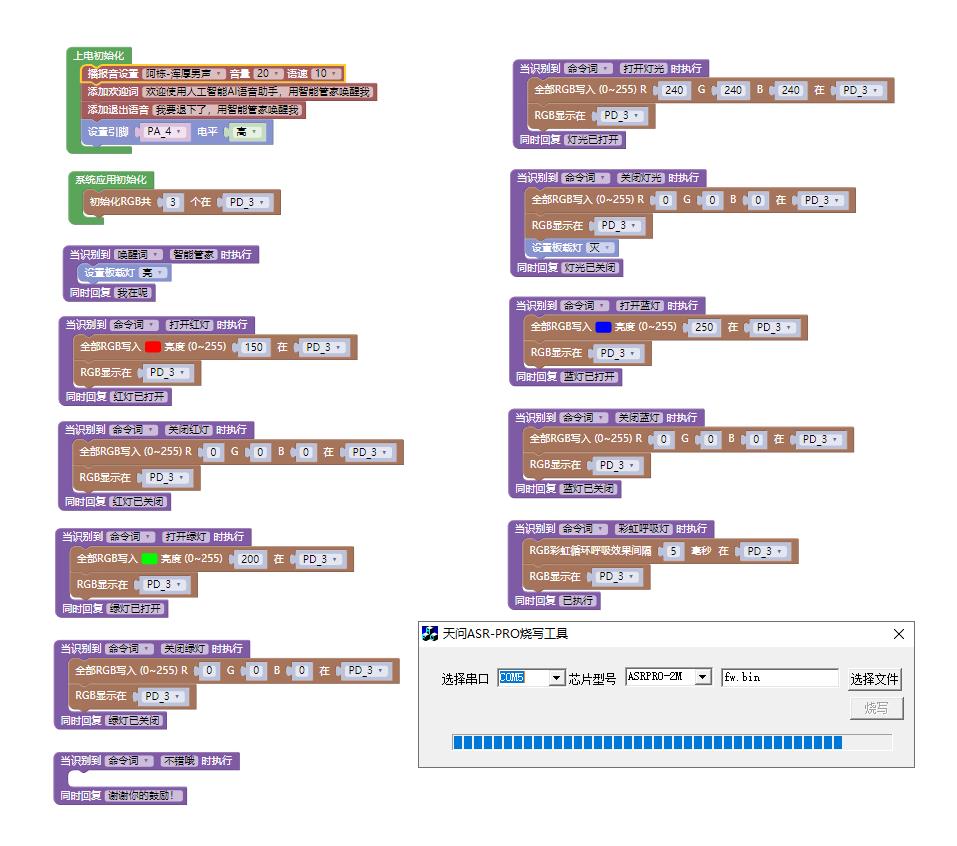

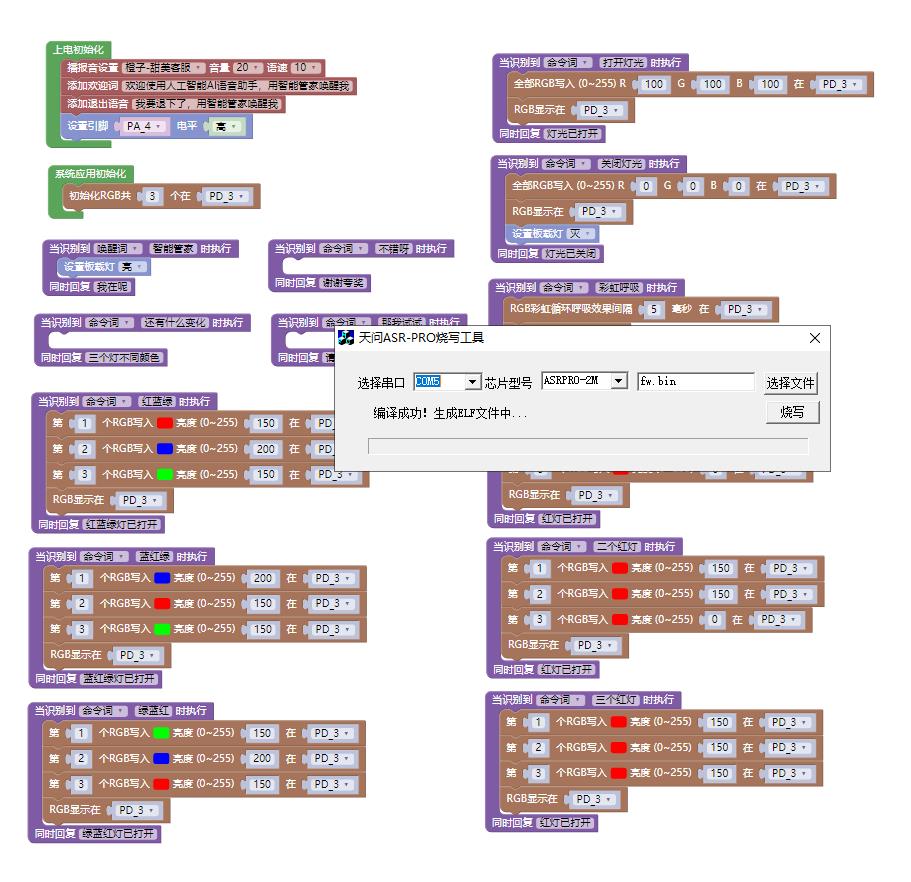

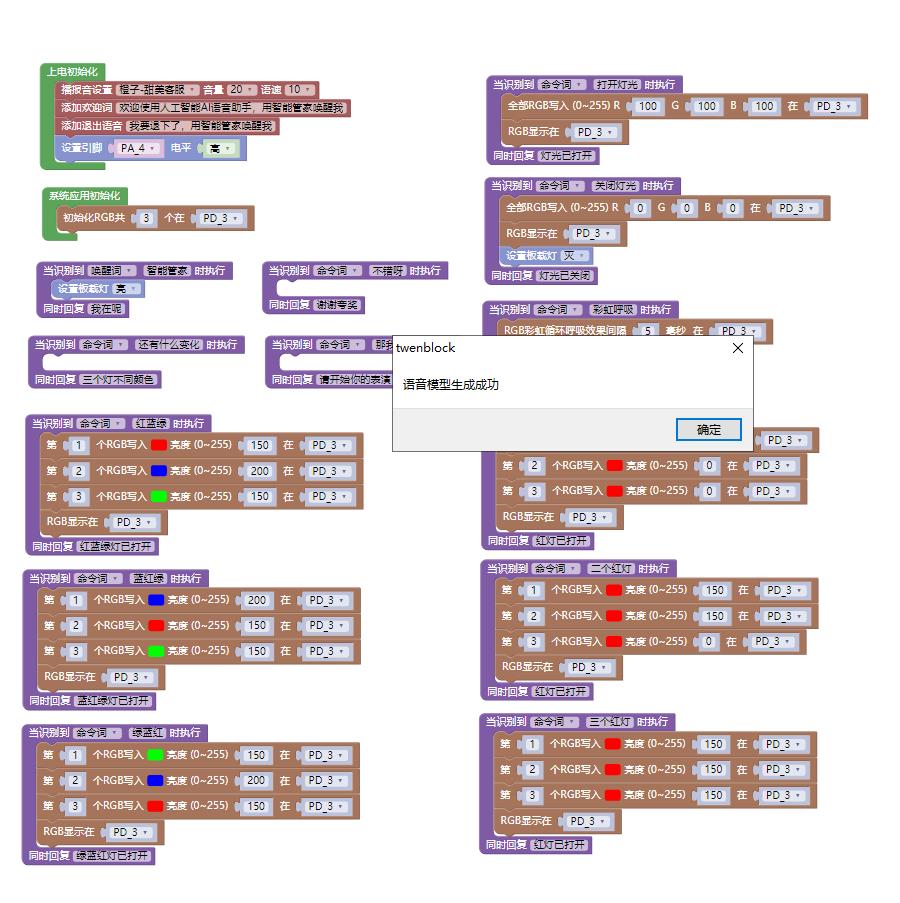

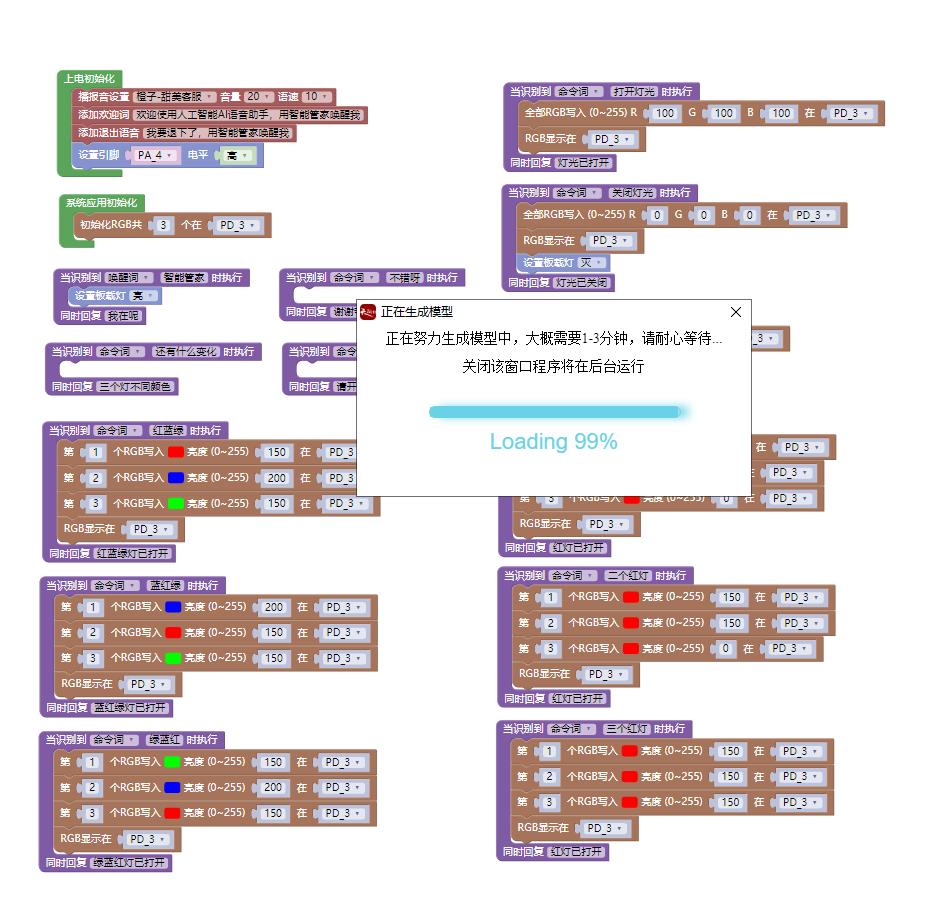

天问Block（标准模式）训练模型与编译烧录

实验记录视频
https://www.bilibili.com/video/BV1Dj411a74d/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987
[media=x,500,375]https://www.bilibili.com/video/BV1Dj411a74d/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987[/media]

实验之五：语音控制WS2812B，实现彩虹呼吸灯与流光溢彩的效果
实验开源代码
[code]#include "asr.h"
extern "C"{ void * __dso_handle = 0 ;}
#include "setup.h"
#include "myLib/asr_event.h"
#include "myLib/asr_ws2812.h"
uint32_t snid;
void hardware_init();
//{ID:250,keyword:"命令词",ASR:"最大音量",ASRTO:"音量调整到最大"}
//{ID:251,keyword:"命令词",ASR:"中等音量",ASRTO:"音量调整到中等"}
//{ID:252,keyword:"命令词",ASR:"最小音量",ASRTO:"音量调整到最小"}
WS2812 ASR_WS2812_27(27);
void ASR_CODE()
{
//{ID:500,keyword:"命令词",ASR:"打开灯光",ASRTO:"灯光已打开"}
if(snid == 500){
ASR_WS2812_27.pixel_set_all_color(240,240,240);
ASR_WS2812_27.pixel_show();
}
//{ID:501,keyword:"命令词",ASR:"关闭灯光",ASRTO:"灯光已关闭"}
if(snid == 501){
ASR_WS2812_27.pixel_set_all_color(0,0,0);
ASR_WS2812_27.pixel_show();
digital_write(4,1);
}
//{ID:502,keyword:"唤醒词",ASR:"智能管家",ASRTO:"我在呢"}
if(snid == 502){
digital_write(4,0);
}
//{ID:503,keyword:"命令词",ASR:"打开红灯",ASRTO:"红灯已打开"}
if(snid == 503){
ASR_WS2812_27.setBrightness(150);
ASR_WS2812_27.pixel_set_all_color(255,0,0);
ASR_WS2812_27.pixel_show();
}
//{ID:504,keyword:"命令词",ASR:"打开蓝灯",ASRTO:"蓝灯已打开"}
if(snid == 504){
ASR_WS2812_27.setBrightness(250);
ASR_WS2812_27.pixel_set_all_color(0,0,255);
ASR_WS2812_27.pixel_show();
}
//{ID:505,keyword:"命令词",ASR:"关闭红灯",ASRTO:"红灯已关闭"}
if(snid == 505){
ASR_WS2812_27.pixel_set_all_color(0,0,0);
ASR_WS2812_27.pixel_show();
}
//{ID:506,keyword:"命令词",ASR:"关闭蓝灯",ASRTO:"蓝灯已关闭"}
if(snid == 506){
ASR_WS2812_27.pixel_set_all_color(0,0,0);
ASR_WS2812_27.pixel_show();
}
//{ID:507,keyword:"命令词",ASR:"打开绿灯",ASRTO:"绿灯已打开"}
if(snid == 507){
ASR_WS2812_27.setBrightness(200);
ASR_WS2812_27.pixel_set_all_color(0,255,0);
ASR_WS2812_27.pixel_show();
}
//{ID:508,keyword:"命令词",ASR:"彩虹呼吸灯",ASRTO:"已执行"}
if(snid == 508){
ASR_WS2812_27.rainbowCycle(5);
ASR_WS2812_27.pixel_show();
}
//{ID:509,keyword:"命令词",ASR:"关闭绿灯",ASRTO:"绿灯已关闭"}
if(snid == 509){
ASR_WS2812_27.pixel_set_all_color(0,0,0);
ASR_WS2812_27.pixel_show();
}
//{ID:510,keyword:"命令词",ASR:"流光溢彩灯",ASRTO:"已执行"}
if(snid == 510){
ASR_WS2812_27.rainbow(25);
ASR_WS2812_27.pixel_show();
}
//{ID:511,keyword:"命令词",ASR:"不错哦",ASRTO:"谢谢你的鼓励！"}
if(snid == 511){
}
}
void hardware_init(){
ASR_WS2812_27.pixel_init(3);
vTaskDelete(NULL);
}
void setup()
{
//{speak:阿栋-浑厚男声,vol:20,speed:10,platform:haohaodada}
//{playid:10001,voice:欢迎使用人工智能AI语音助手，用智能管家唤醒我}
//{playid:10002,voice:我要退下了，用智能管家唤醒我}
digital_write((4),1);
xTaskCreate(hardware_init,"hardware_init",256,NULL,100,NULL);
}[/code]

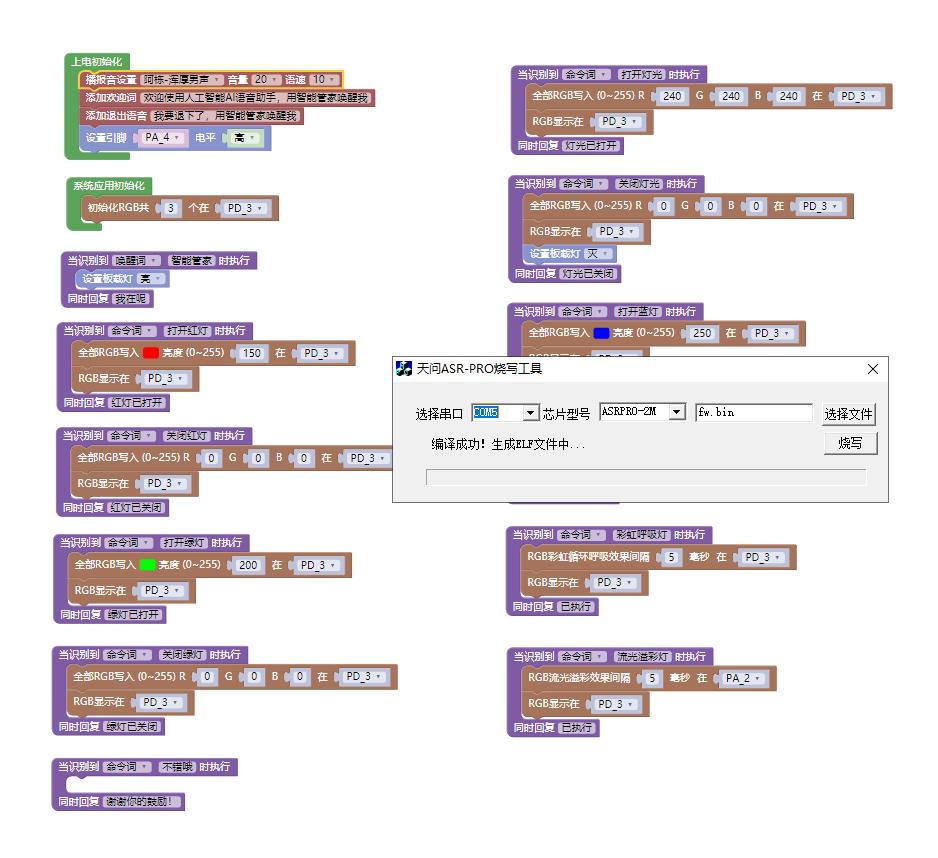

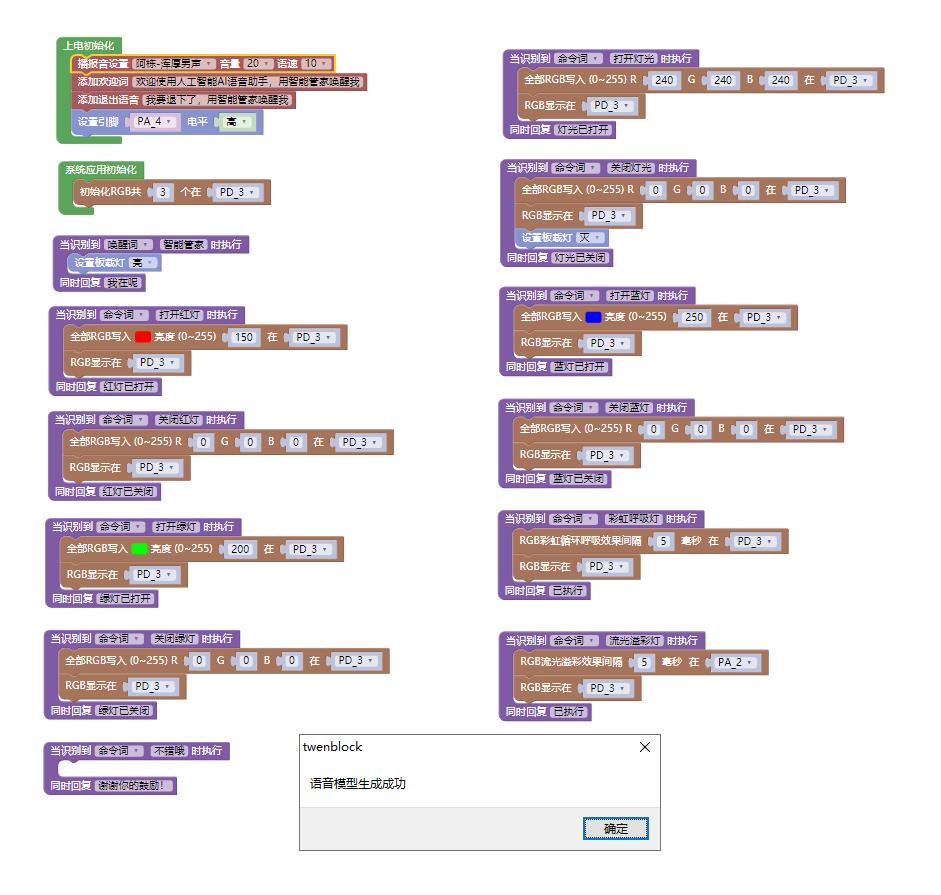

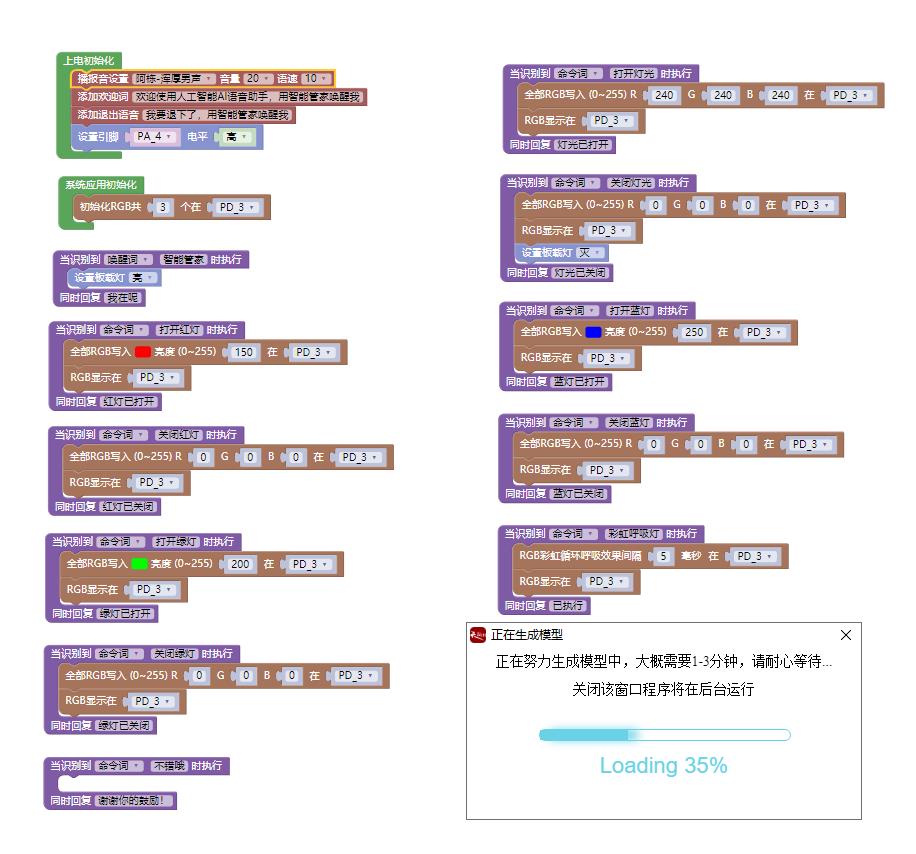

天问Block（标准模式）训练模型与烧录

[backcolor=rgb(255, 255, 255)][font=Tahoma, Helvetica, SimSun, sans-serif]实验视频[/font][/backcolor]
[backcolor=rgb(255, 255, 255)][font=Tahoma, Helvetica, SimSun, sans-serif]
[/font][/backcolor]
https://www.bilibili.com/video/BV1gj411Y7rk/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987
[backcolor=rgb(255, 255, 255)][font=Tahoma, Helvetica, SimSun, sans-serif]
[/font][/backcolor]
[media=x,500,375]https://www.bilibili.com/video/BV1gj411Y7rk/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987[/media]
[backcolor=rgb(255, 255, 255)][font=Tahoma, Helvetica, SimSun, sans-serif]
[/font][/backcolor]
