【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管

2023-11-034572

驴友花雕

UID: 1737

2964文章

158粉丝

1.1万获取喜欢

AI 快速预览详细

本教程介绍了如何使用ASRPRO-Plus开发板通过语音识别控制TM1650四位数码管。提供了详细的实验代码和步骤，包括硬件初始化、语音识别命令词设置以及具体的操作方法。适合STEM教育和儿童科学实验场景，帮助用户快速实现语音控制项目。

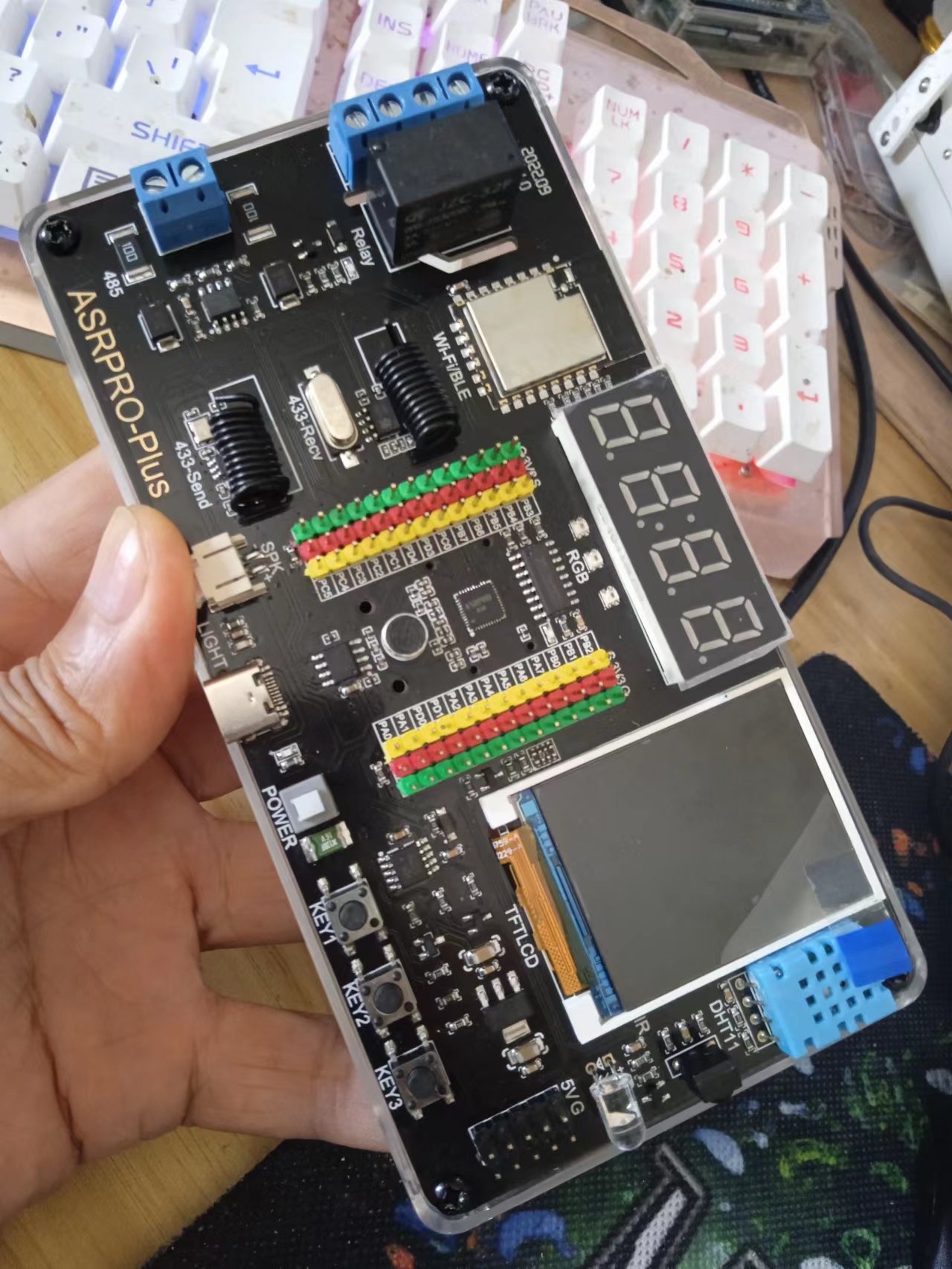

ASRPRO-Plus开发板
【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图1

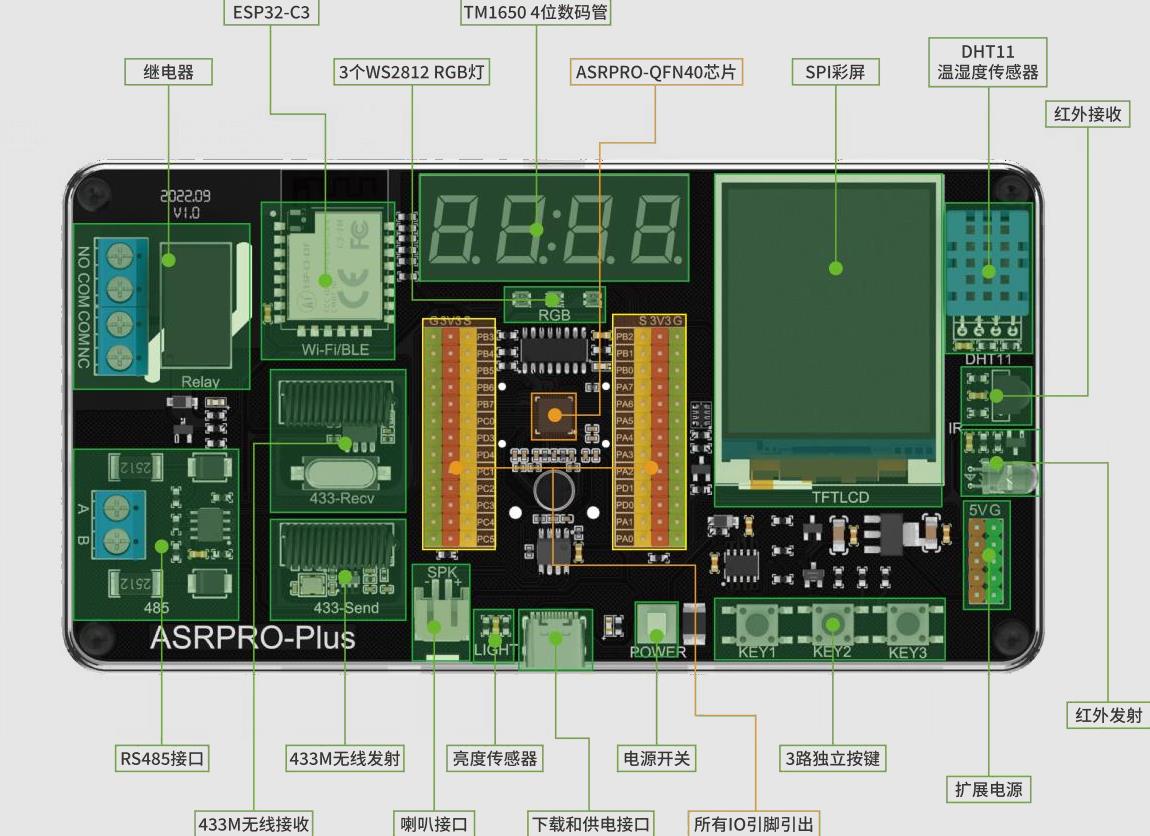

板子基本介绍

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图2

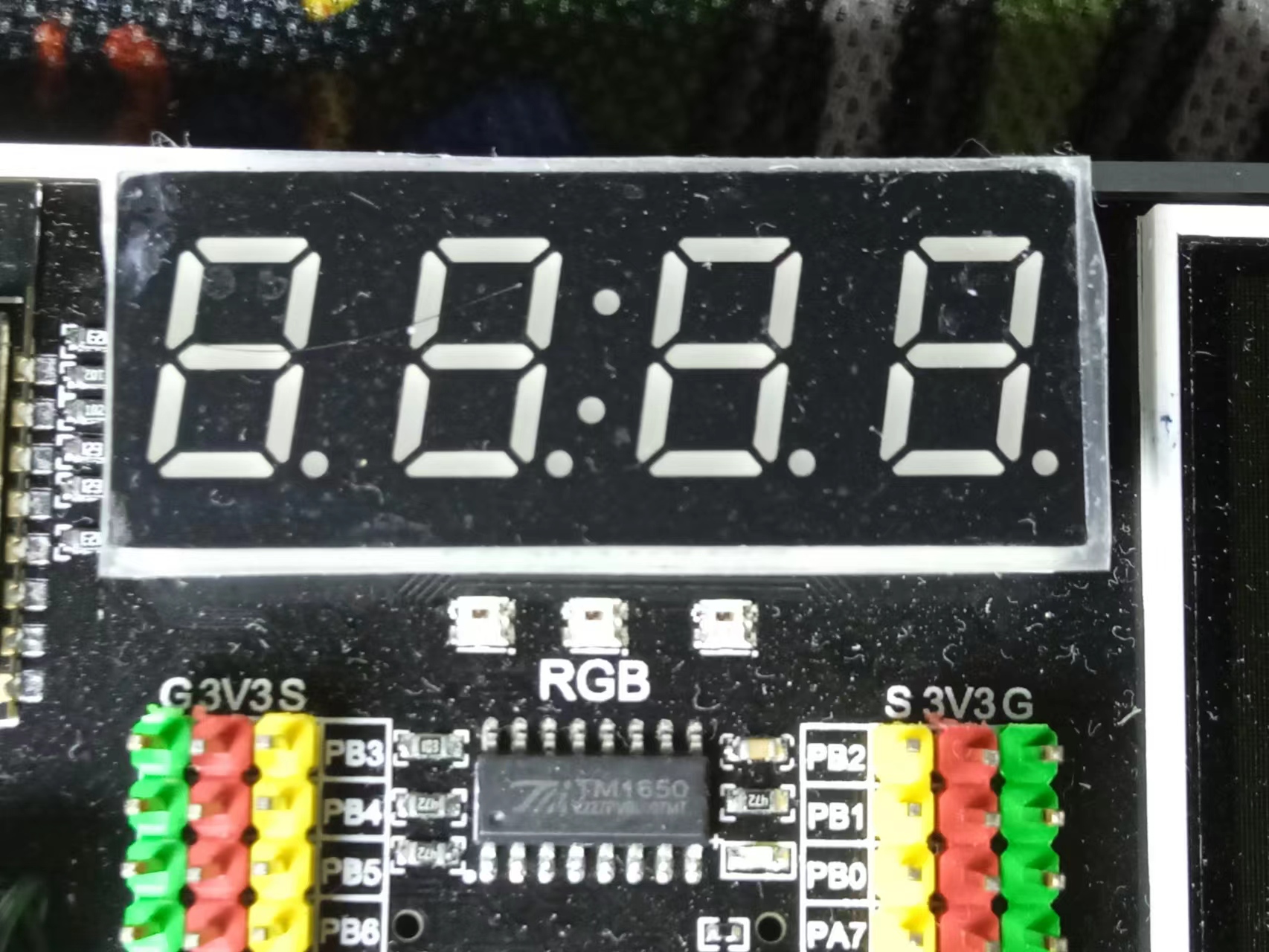

本例实验的TM1650四位数码管模块

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图4

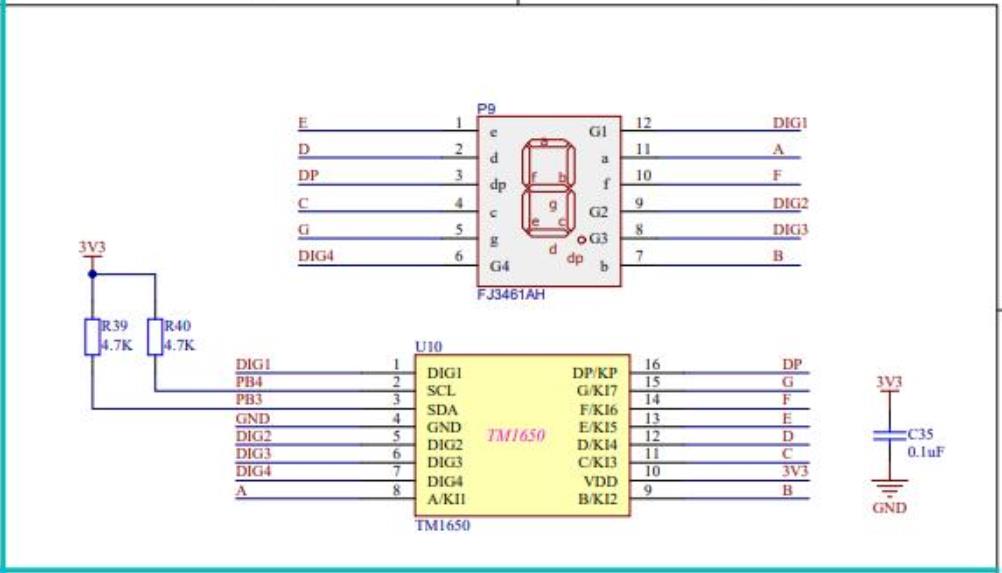

本例实验的TM1650四位数码管模块的电原理图

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图3

实验之七：语音识别控制，点亮TM1650四位数码管
实验开源代码

#include "asr.h"
extern "C"{ void * __dso_handle = 0 ;}
#include "setup.h"
#include "myLib/asr_event.h"
#include "myLib/asr_ws2812.h"
#include "myLib/asr_tm1650.h"

uint32_t snid;
void hardware_init();

//{ID:250,keyword:"命令词",ASR:"最大音量",ASRTO:"音量调整到最大"}
//{ID:251,keyword:"命令词",ASR:"中等音量",ASRTO:"音量调整到中等"}
//{ID:252,keyword:"命令词",ASR:"最小音量",ASRTO:"音量调整到最小"}
WS2812 ASR_WS2812_27(27);
TM1650 tm1650_11_12(11,12);
void ASR_CODE()
{
  //{ID:500,keyword:"唤醒词",ASR:"智能管家",ASRTO:"我在呢"}
  if(snid == 500){
    tm1650_11_12.clear();
    tm1650_11_12.display_num((snid));
  }
  //{ID:501,keyword:"命令词",ASR:"打开灯光",ASRTO:"灯光已打开"}
  if(snid == 501){
    ASR_WS2812_27.pixel_set_all_color(200,200,200);
    tm1650_11_12.clear();
    tm1650_11_12.display_num((snid));
    ASR_WS2812_27.pixel_show();
    digital_write(4,0);
  }
  //{ID:502,keyword:"命令词",ASR:"关闭灯光",ASRTO:"灯光已关闭"}
  if(snid == 502){
    ASR_WS2812_27.pixel_set_all_color(0,0,0);
    tm1650_11_12.clear();
    tm1650_11_12.display_num((snid));
    ASR_WS2812_27.pixel_show();
    digital_write(4,1);
  }
}

void hardware_init(){
  ASR_WS2812_27.pixel_init(3);
  tm1650_11_12.begin();
  tm1650_11_12.display_num(0);
  vTaskDelete(NULL);
}

void setup()
{
  //{speak:阿文-温和男声,vol:20,speed:10,platform:haohaodada}
  //{playid:10001,voice:欢迎使用人工智能AI语音助手，用智能管家唤醒我}
  //{playid:10002,voice:我要退下了，用智能管家唤醒我}
  xTaskCreate(hardware_init,"hardware_init",256,NULL,100,NULL);
}
复制代码

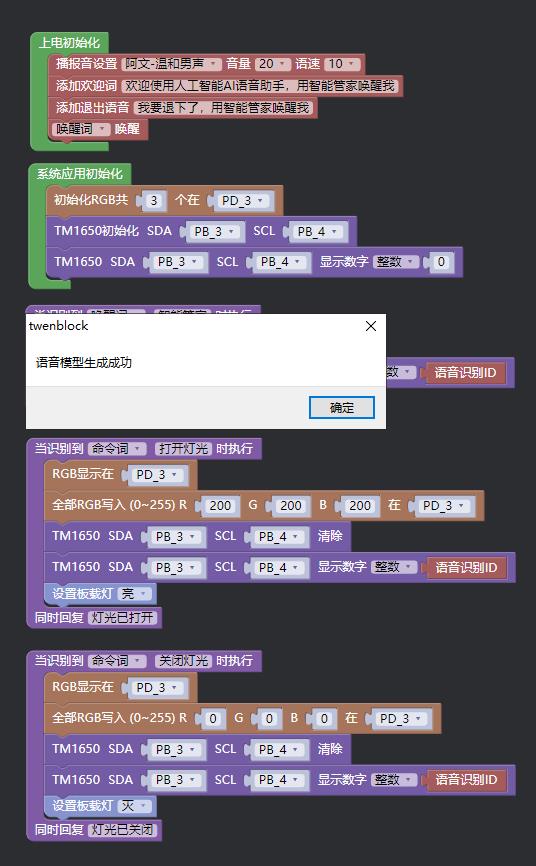

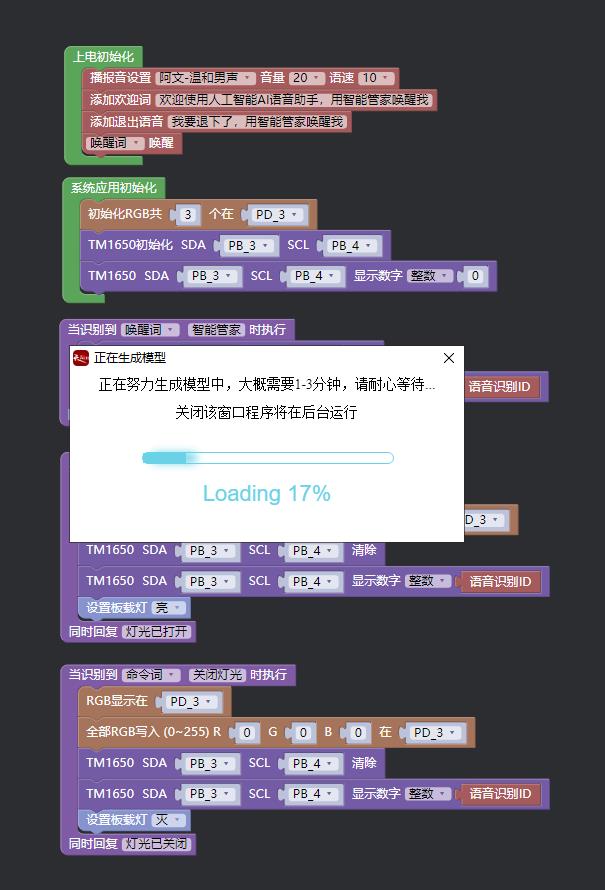

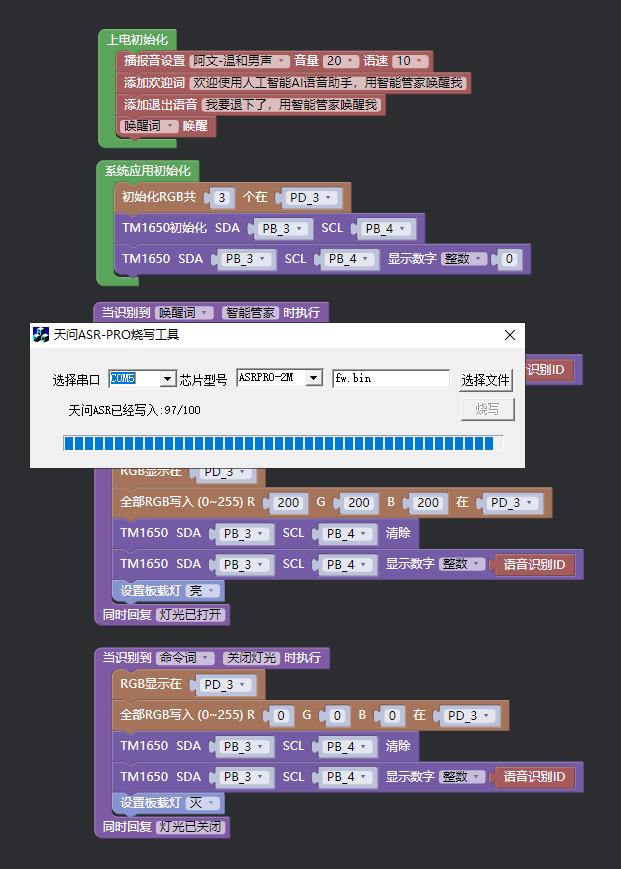

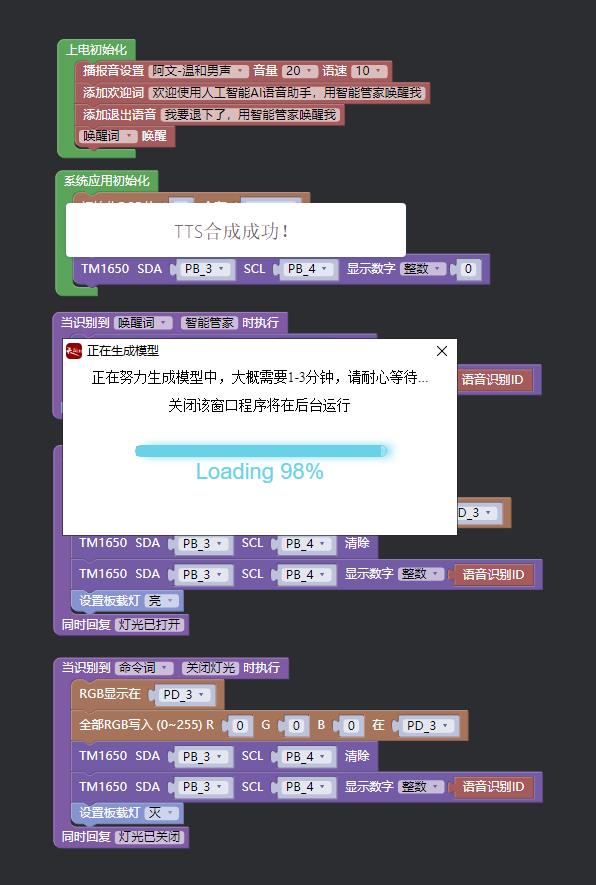

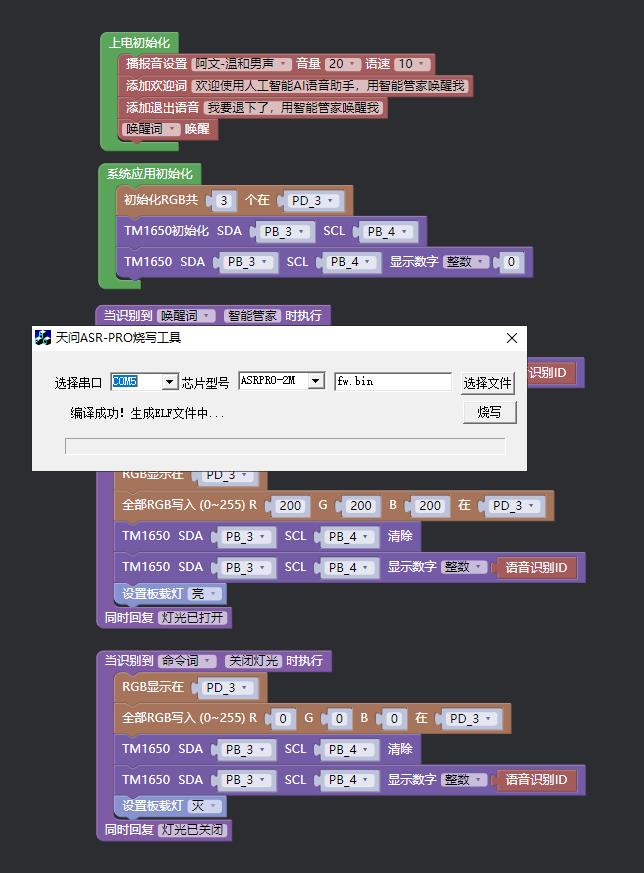

天问Block（标准模式）训练模型与编译烧录

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图5

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图6

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图7

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图8

【花雕动手做】ASRPRO-Plus语音识别（06）---点亮TM1650数码管图9

实验记录视频

https://www.bilibili.com/video/BV1ou4y1j7rk/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987

评论(2)

作者

实验之九：语音控制的变换时钟数码管
实验开源代码
[code]#include "asr.h"
extern "C"{ void * __dso_handle = 0 ;}
#include "setup.h"
#include "myLib/asr_event.h"
#include "myLib/asr_tm1650.h"
uint32_t snid;
void hardware_init();
//{ID:250,keyword:"命令词",ASR:"最大音量",ASRTO:"音量调整到最大"}
//{ID:251,keyword:"命令词",ASR:"中等音量",ASRTO:"音量调整到中等"}
//{ID:252,keyword:"命令词",ASR:"最小音量",ASRTO:"音量调整到最小"}
TM1650 tm1650_11_12(11,12);
void ASR_CODE()
{
//{ID:500,keyword:"命令词",ASR:"点亮一二三四",ASRTO:"已显示"}
if(snid == 500){
tm1650_11_12.clear();
tm1650_11_12.display_num(1234);
}
//{ID:501,keyword:"命令词",ASR:"两个八",ASRTO:"好的"}
if(snid == 501){
tm1650_11_12.clear_bit((1));
}
//{ID:502,keyword:"命令词",ASR:"点亮五六七八",ASRTO:"已显示"}
if(snid == 502){
tm1650_11_12.clear();
tm1650_11_12.display_num(5678);
}
//{ID:503,keyword:"命令词",ASR:"一个八",ASRTO:"好的"}
if(snid == 503){
tm1650_11_12.clear_bit((2));
}
//{ID:504,keyword:"命令词",ASR:"零点一",ASRTO:"好的"}
if(snid == 504){
tm1650_11_12.clear();
tm1650_11_12.display_num(1);
tm1650_11_12.display_bit((0),(2),(1));
}
//{ID:505,keyword:"唤醒词",ASR:"智能管家",ASRTO:"我在呢"}
if(snid == 505){
tm1650_11_12.clear();
digital_write(4,0);
}
//{ID:506,keyword:"命令词",ASR:"都没了",ASRTO:"好的"}
if(snid == 506){
tm1650_11_12.clear_bit((3));
}
//{ID:507,keyword:"命令词",ASR:"点亮数码管",ASRTO:"全部点亮"}
if(snid == 507){
tm1650_11_12.clear();
tm1650_11_12.display_num(8888);
}
//{ID:508,keyword:"命令词",ASR:"零点二",ASRTO:"好的"}
if(snid == 508){
tm1650_11_12.clear();
tm1650_11_12.display_num(2);
tm1650_11_12.display_bit((0),(2),(1));
}
//{ID:509,keyword:"命令词",ASR:"三个八",ASRTO:"好的"}
if(snid == 509){
tm1650_11_12.clear_bit((4));
}
//{ID:510,keyword:"命令词",ASR:"六点二十二分",ASRTO:"过去了"}
if(snid == 510){
tm1650_11_12.clear();
tm1650_11_12.display_time(6,22,(1));
}
//{ID:511,keyword:"命令词",ASR:"关闭数码管",ASRTO:"已关闭"}
if(snid == 511){
tm1650_11_12.clear();
}
//{ID:512,keyword:"命令词",ASR:"七",ASRTO:"好多七"}
if(snid == 512){
tm1650_11_12.clear();
tm1650_11_12.display_num(7777);
}
//{ID:513,keyword:"命令词",ASR:"十点十分",ASRTO:"正当时"}
if(snid == 513){
tm1650_11_12.clear();
tm1650_11_12.display_time(10,10,(1));
}
//{ID:514,keyword:"命令词",ASR:"关闭灯光",ASRTO:"灯光已关闭"}
if(snid == 514){
digital_write(4,1);
}
//{ID:515,keyword:"命令词",ASR:"九",ASRTO:"好多九"}
if(snid == 515){
tm1650_11_12.clear();
tm1650_11_12.display_num(9999);
}
//{ID:516,keyword:"命令词",ASR:"十二点三十四分",ASRTO:"要订闹钟吗"}
if(snid == 516){
tm1650_11_12.clear();
tm1650_11_12.display_time(12,34,(1));
}
//{ID:517,keyword:"命令词",ASR:"还行",ASRTO:"谢谢鼓励"}
if(snid == 517){
}
}
void hardware_init(){
tm1650_11_12.begin();
vTaskDelete(NULL);
}
void setup()
{
//{speak:阿栋-浑厚男声,vol:20,speed:10,platform:haohaodada}
//{playid:10001,voice:欢迎使用人工智能AI语音助手，用智能管家唤醒我}
//{playid:10002,voice:我要退下了，用智能管家唤醒我}
xTaskCreate(hardware_init,"hardware_init",256,NULL,100,NULL);
}[/code]

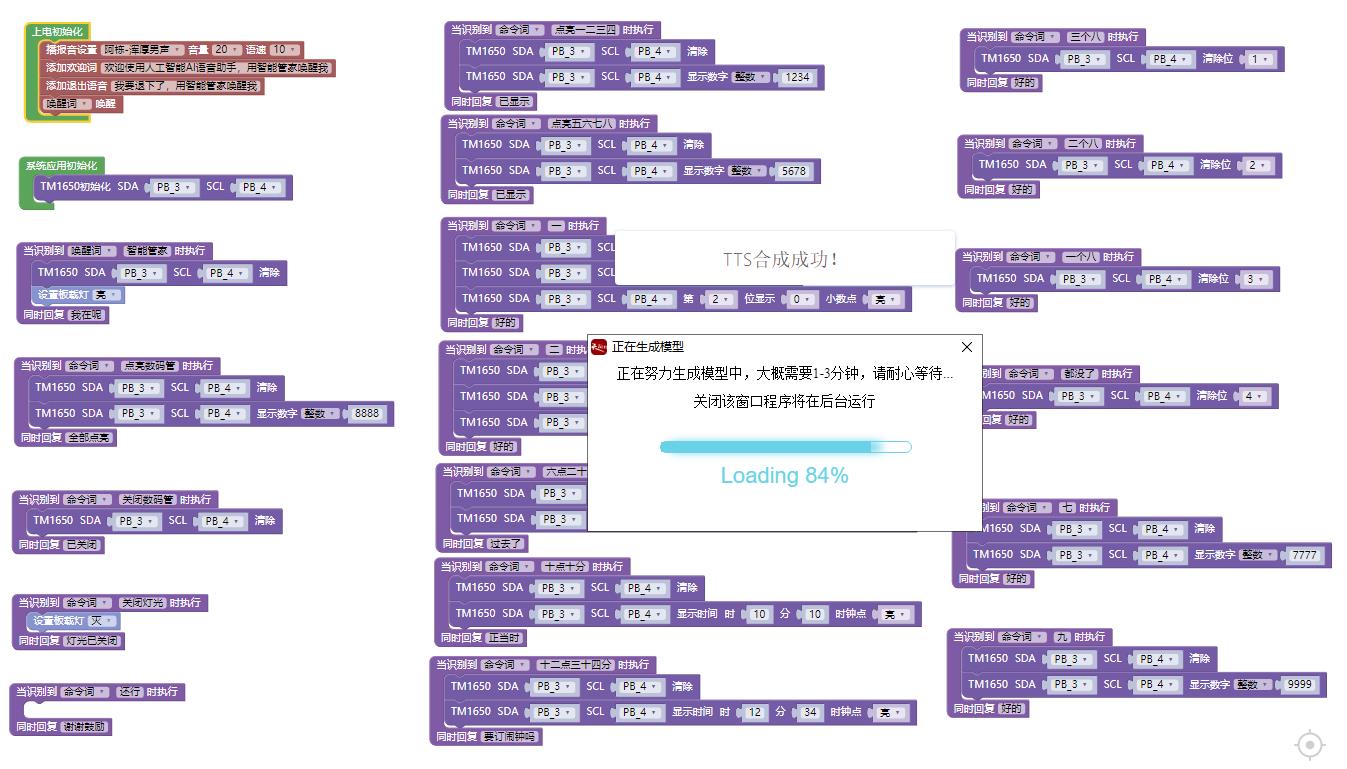

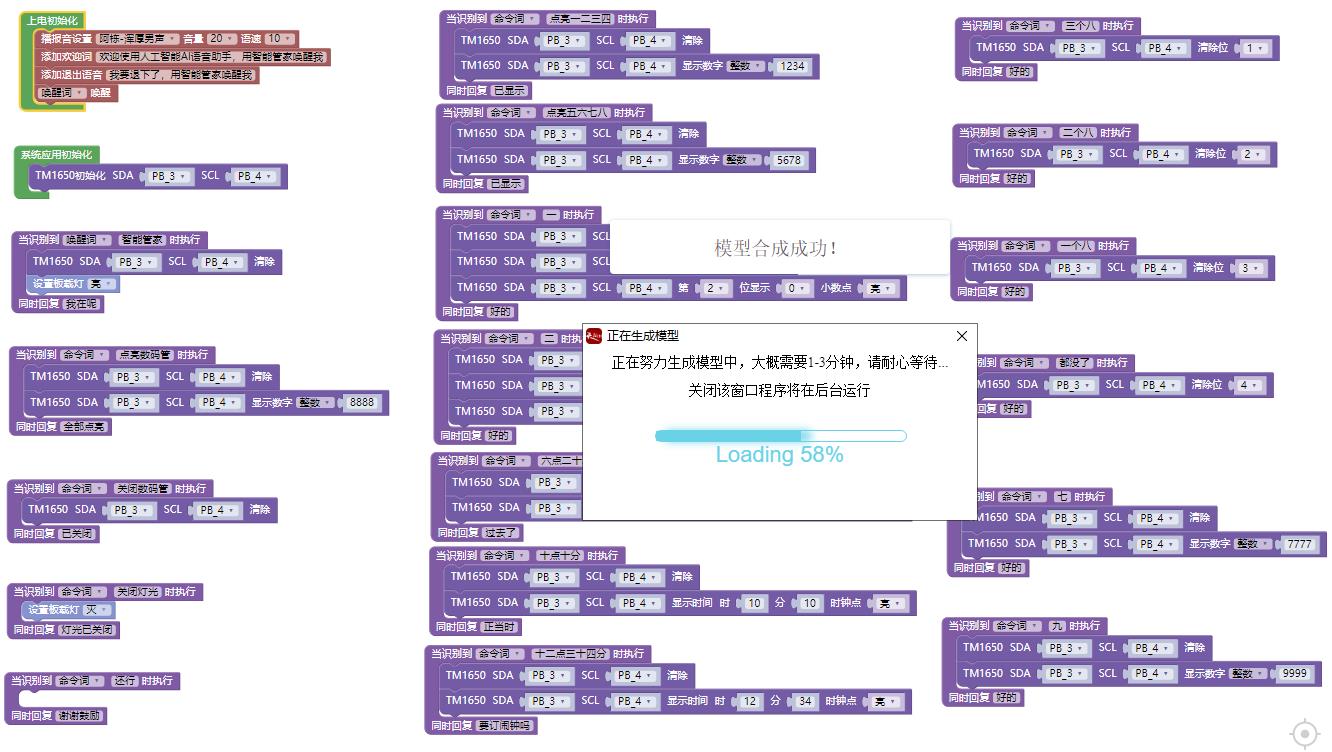

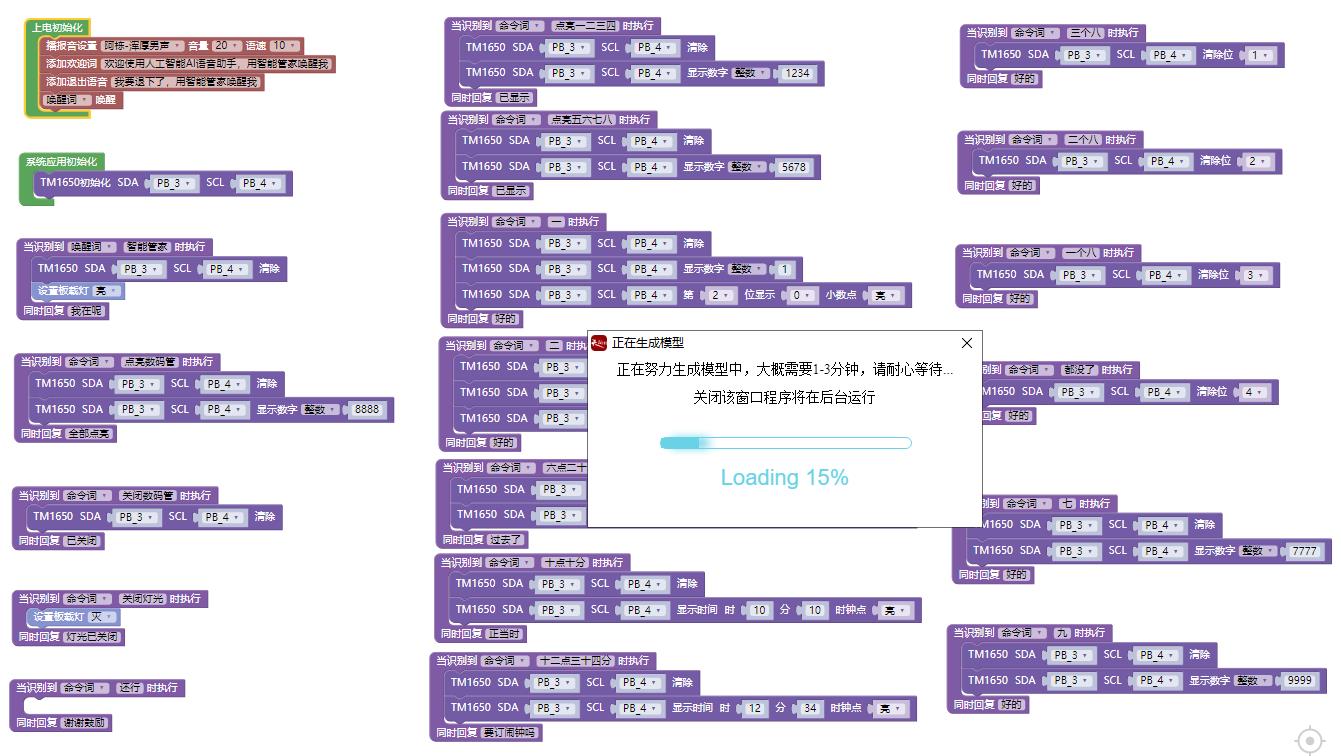

天问Block（标准模式）训练模型与编译烧录

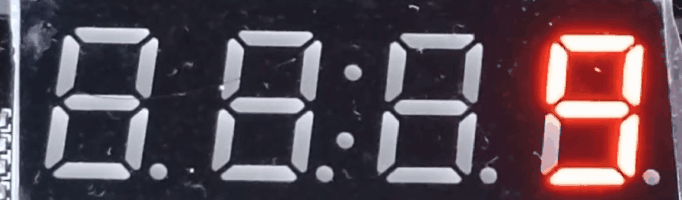

实验动图

实验记录视频
https://www.bilibili.com/video/B ... a9be994cbb4a86cc987]https://www.bilibili.com/video/B ... a9be994cbb4a86cc987[/url]
[media=x,500,375]https://www.bilibili.com/video/BV18N4y1r7wU/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987[/media]

实验之八：会数数的语音控制TM1650数码管
实验开源代码
[code]#include "asr.h"
extern "C"{ void * __dso_handle = 0 ;}
#include "setup.h"
#include "myLib/asr_event.h"
#include "myLib/asr_tm1650.h"
#include "myLib/asr_ws2812.h"
uint32_t snid;
void hardware_init();
//{ID:250,keyword:"命令词",ASR:"最大音量",ASRTO:"音量调整到最大"}
//{ID:251,keyword:"命令词",ASR:"中等音量",ASRTO:"音量调整到中等"}
//{ID:252,keyword:"命令词",ASR:"最小音量",ASRTO:"音量调整到最小"}
WS2812 ASR_WS2812_27(27);
TM1650 tm1650_11_12(11,12);
void ASR_CODE()
{
//{ID:500,keyword:"命令词",ASR:"点亮一二三四",ASRTO:"已显示"}
if(snid == 500){
tm1650_11_12.clear();
tm1650_11_12.display_num(1234);
}
//{ID:501,keyword:"命令词",ASR:"三",ASRTO:"好的"}
if(snid == 501){
tm1650_11_12.clear();
tm1650_11_12.display_num(3);
}
//{ID:502,keyword:"命令词",ASR:"点亮五六七八",ASRTO:"已显示"}
if(snid == 502){
tm1650_11_12.clear();
tm1650_11_12.display_num(5678);
}
//{ID:503,keyword:"命令词",ASR:"四",ASRTO:"好的"}
if(snid == 503){
tm1650_11_12.clear();
tm1650_11_12.display_num(4);
}
//{ID:504,keyword:"唤醒词",ASR:"智能管家",ASRTO:"我在呢"}
if(snid == 504){
tm1650_11_12.clear();
digital_write(4,0);
}
//{ID:505,keyword:"命令词",ASR:"一",ASRTO:"好的"}
if(snid == 505){
tm1650_11_12.clear();
tm1650_11_12.display_num(1);
}
//{ID:506,keyword:"命令词",ASR:"五",ASRTO:"好的"}
if(snid == 506){
tm1650_11_12.clear();
tm1650_11_12.display_num(5);
}
//{ID:507,keyword:"命令词",ASR:"二",ASRTO:"好的"}
if(snid == 507){
tm1650_11_12.clear();
tm1650_11_12.display_num(2);
}
//{ID:508,keyword:"命令词",ASR:"点亮数码管",ASRTO:"全部点亮"}
if(snid == 508){
tm1650_11_12.clear();
tm1650_11_12.display_num(8888);
}
//{ID:509,keyword:"命令词",ASR:"六",ASRTO:"好的"}
if(snid == 509){
tm1650_11_12.clear();
tm1650_11_12.display_num(6);
}
//{ID:510,keyword:"命令词",ASR:"四个一",ASRTO:"都是一"}
if(snid == 510){
tm1650_11_12.clear();
tm1650_11_12.display_num(1111);
}
//{ID:511,keyword:"命令词",ASR:"关闭数码管",ASRTO:"已关闭"}
if(snid == 511){
tm1650_11_12.clear();
}
//{ID:512,keyword:"命令词",ASR:"七",ASRTO:"好的"}
if(snid == 512){
tm1650_11_12.clear();
tm1650_11_12.display_num(7);
}
//{ID:513,keyword:"命令词",ASR:"四个二",ASRTO:"都是二"}
if(snid == 513){
tm1650_11_12.clear();
tm1650_11_12.display_num(2222);
}
//{ID:514,keyword:"命令词",ASR:"关闭灯光",ASRTO:"灯光已关闭"}
if(snid == 514){
digital_write(4,1);
}
//{ID:515,keyword:"命令词",ASR:"八",ASRTO:"好的"}
if(snid == 515){
tm1650_11_12.clear();
tm1650_11_12.display_num(8);
}
//{ID:516,keyword:"命令词",ASR:"好棒哦",ASRTO:"谢谢鼓励"}
if(snid == 516){
}
//{ID:517,keyword:"命令词",ASR:"四个三",ASRTO:"都是三"}
if(snid == 517){
tm1650_11_12.clear();
tm1650_11_12.display_num(3333);
}
//{ID:518,keyword:"命令词",ASR:"九",ASRTO:"好的"}
if(snid == 518){
tm1650_11_12.clear();
tm1650_11_12.display_num(9);
}
}
void hardware_init(){
ASR_WS2812_27.pixel_init(3);
tm1650_11_12.begin();
vTaskDelete(NULL);
}
void setup()
{
//{speak:橙子-甜美客服,vol:20,speed:10,platform:haohaodada}
//{playid:10001,voice:欢迎使用人工智能AI语音助手，用智能管家唤醒我}
//{playid:10002,voice:我要退下了，用智能管家唤醒我}
xTaskCreate(hardware_init,"hardware_init",256,NULL,100,NULL);
}[/code]

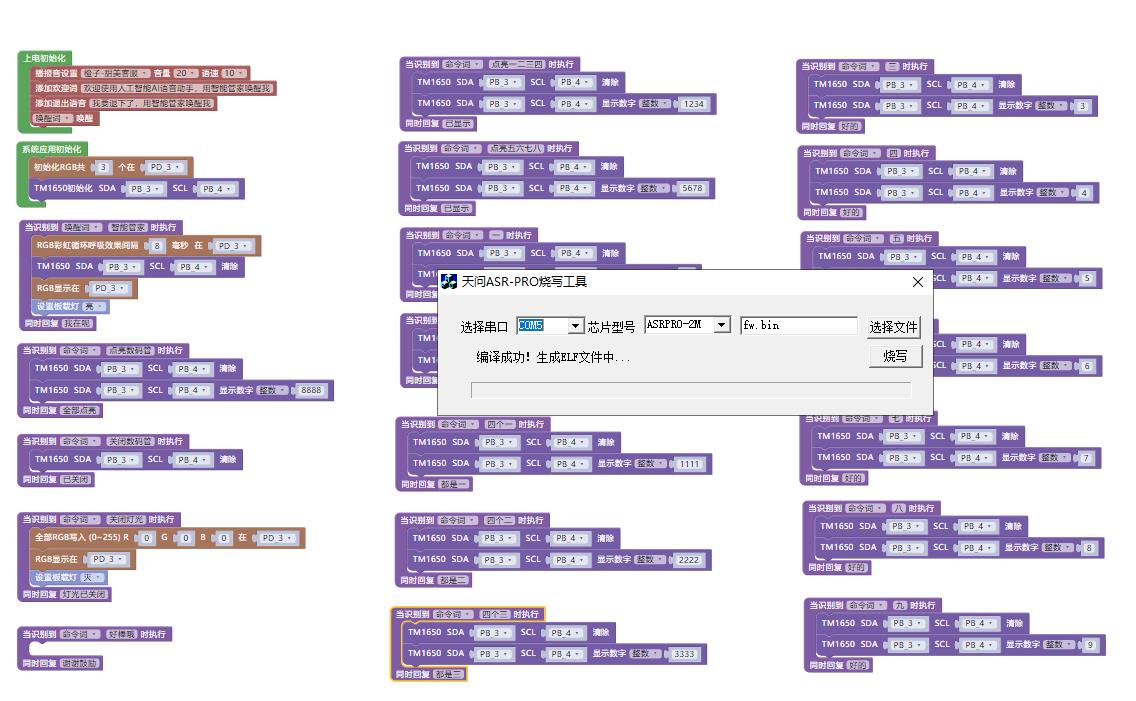

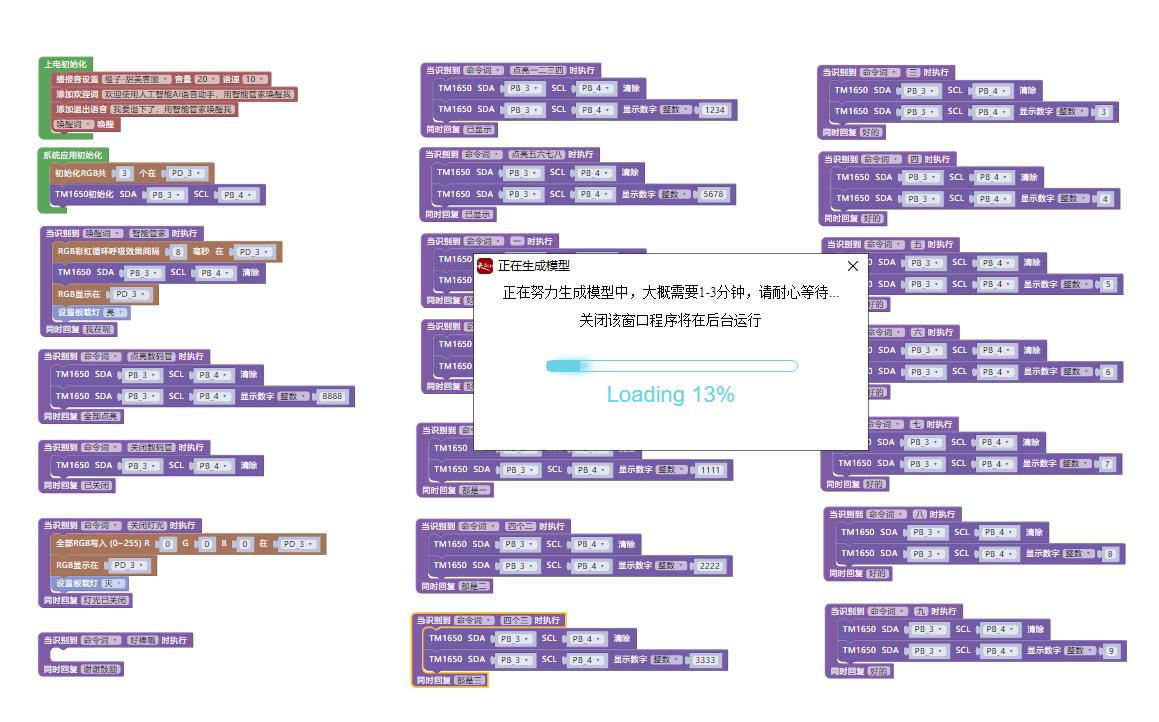

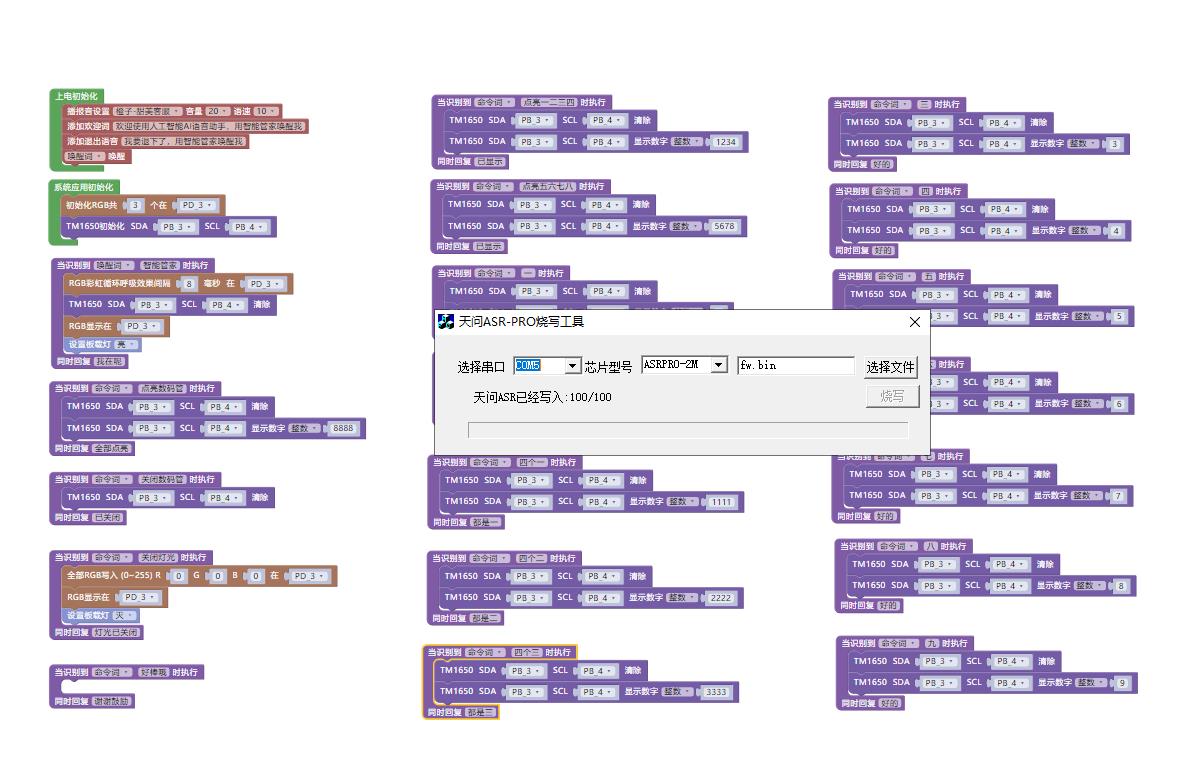

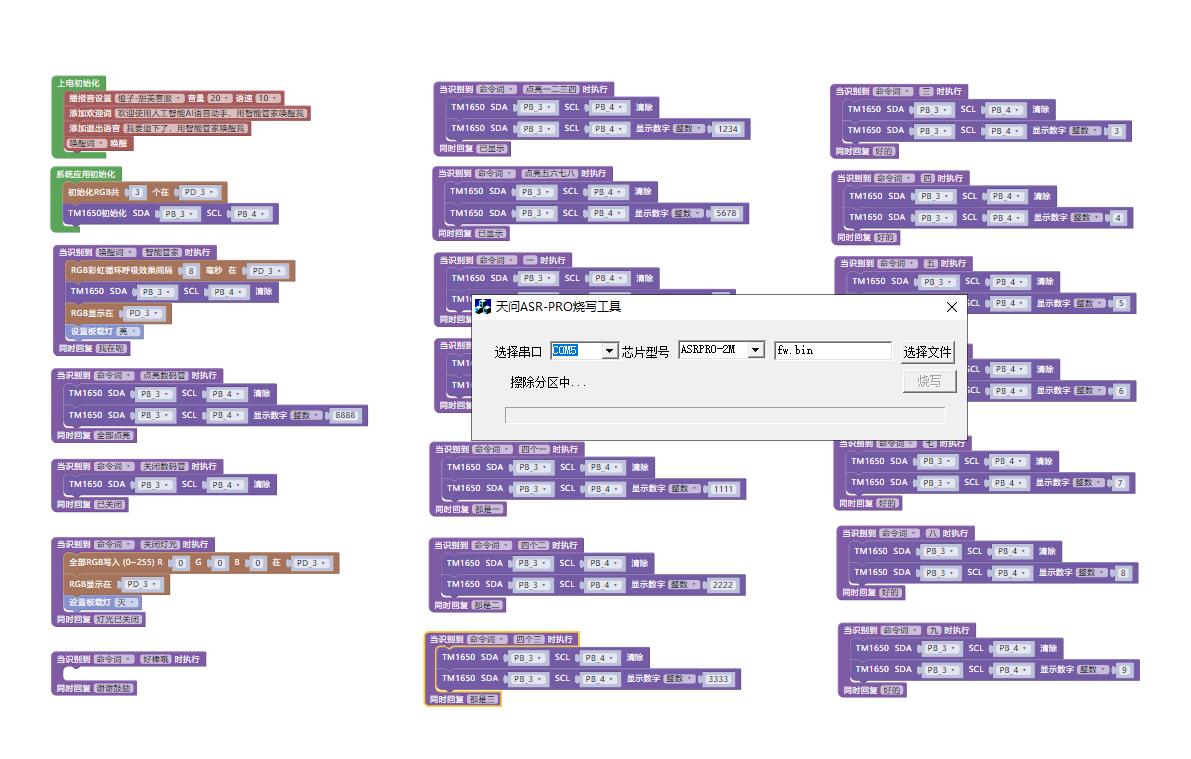

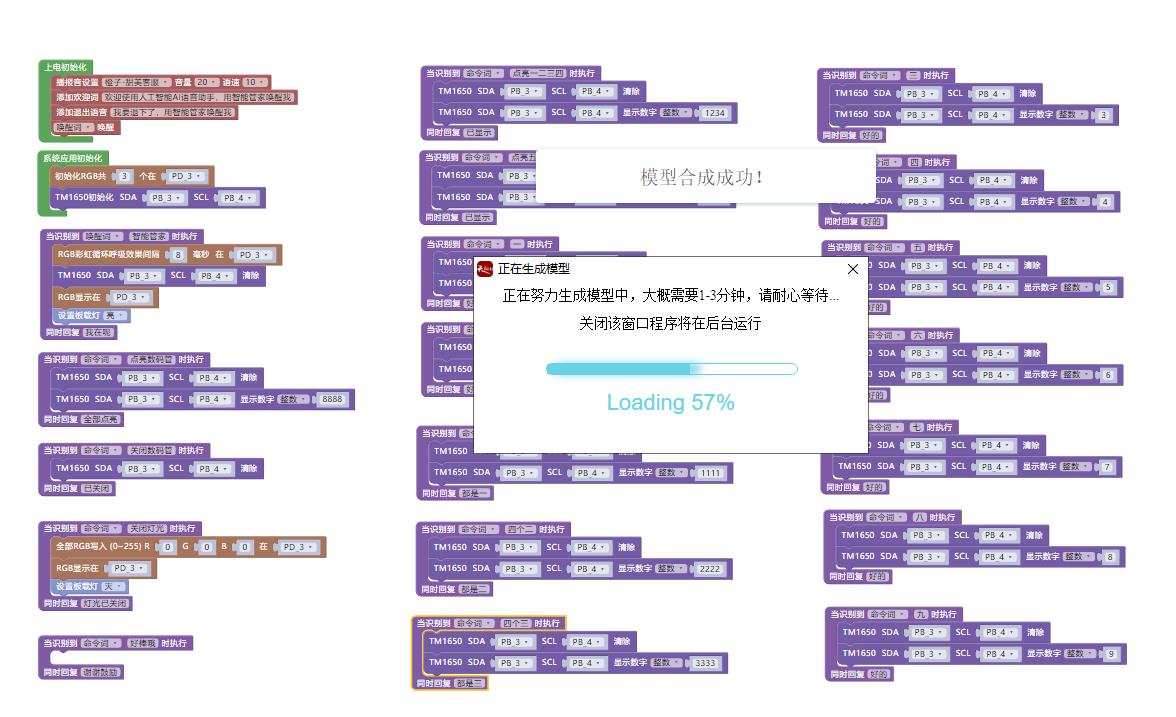

天问Block（标准模式）训练模型与编译烧录

实验记录视频
https://www.bilibili.com/video/BV1hG411X7gP/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987
[media=x,500,375]https://www.bilibili.com/video/BV1hG411X7gP/?share_source=copy_web&vd_source=371a292a55e5ca9be994cbb4a86cc987[/media]
