BPI-M5 Pro RK3576 强大的边缘计算盒子
2024-07-041.2万
AI 快速预览详细 收起
BPI-M5 Pro是一款基于Rockchip RK3576 SoC的高性能边缘计算盒子，支持6 TOPS NPU和16GB大内存。它具备4K视频编解码能力，提供双千兆以太网、WiFi 6 & BT5等多种接口，兼容Android 14、Debian 11等操作系统。适用于ARM PC、边缘计算设备和个人移动互联网设备。这款产品在性能和兼容性方面表现出色，适合需要高性能计算和多媒体处理的应用场景。
OverviewBanana Pi BPI-M5 Pro (Armsom Sige5) adopts the second-generation 8nm high-performance AIOT platform Rockchip RK3576, with a 6 TOPS computing power NPU and support for up to 16GB of large memory. It supports 4K video encoding and decoding, offers rich interfaces including dual gigabit Ethernet ports, WiFi 6 & BT5, and various video outputs. Compatible with multiple operating systems, it is suitable for ARM-based PCs, edge computing devices, personal mobile internet devices, and other digital multimedia applications.
Key ParameterSoC: Rockchip RK3576 CPU: Integrated with four Cortex-A72 cores @ 2.2GHz and four Cortex-A53 cores @ 1.8GHz, along with a separate NEON co-processor. GPU: ARM Mali G52 MC3 GPU NPU: Up to 6 TOPs computing power (INT8), supports INT4/INT8/INT16 mixed operations. VPU/Encoding & Decoding:
Hardware Decoding: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K@30fps or 4K@120fps. Hardware Encoding: Supports H.264 and H.265 up to 4K@60fps, high-quality JPEG encoder/decoder supports up to 4K@60fps.
RAM: 8/16GB 32-bit LPDDR4x, default is 16GB. RK3576 supports a maximum of 16GB. Flash: 32/128GB eMMC, default is 128GB eMMC. Operating Voltage: Wide input voltage range, from 4.5V to 23V (voltage error ±5%). Operating Temperature: 0°C to 80°C Operating Systems:
Official Rockchip Support: Android 14, Debian 11, Buildroot Third-party Support: Armbian

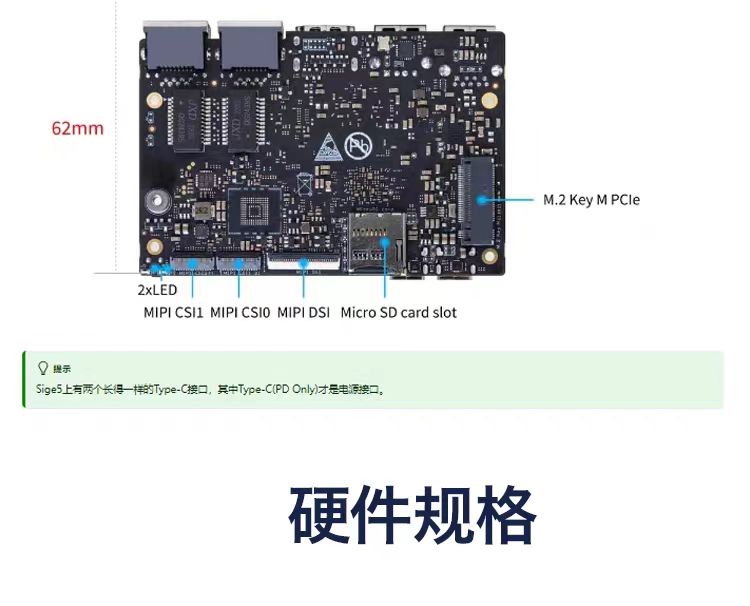

PCB: 8-layer PCB board design Weight: 43g Dimensions: 92mm × 62mm
|
