🚀 震动传感IOT：自动发送手机短信提醒！

物联网时代，IOT将无处不在，这次还是接着上篇的震动传感IOT，更深一步，为它加入事件的手机短信提醒

先简单介绍一下上一篇。

上篇用到的硬件如下
IOT-传感发提醒短信给手机图1

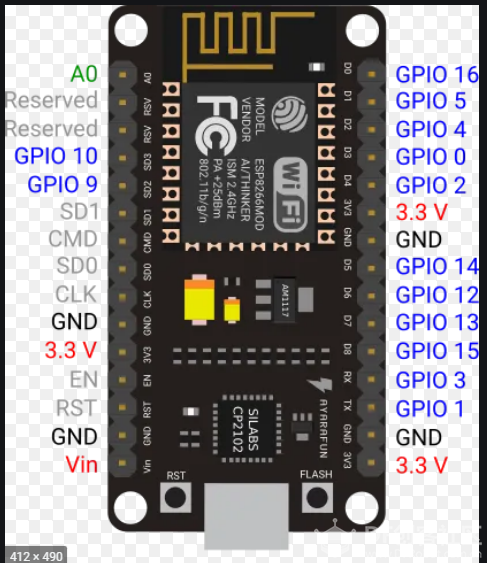

nodemcu

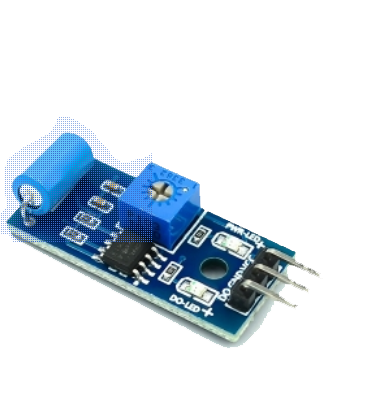

震动传感SM-420
IOT-传感发提醒短信给手机图3

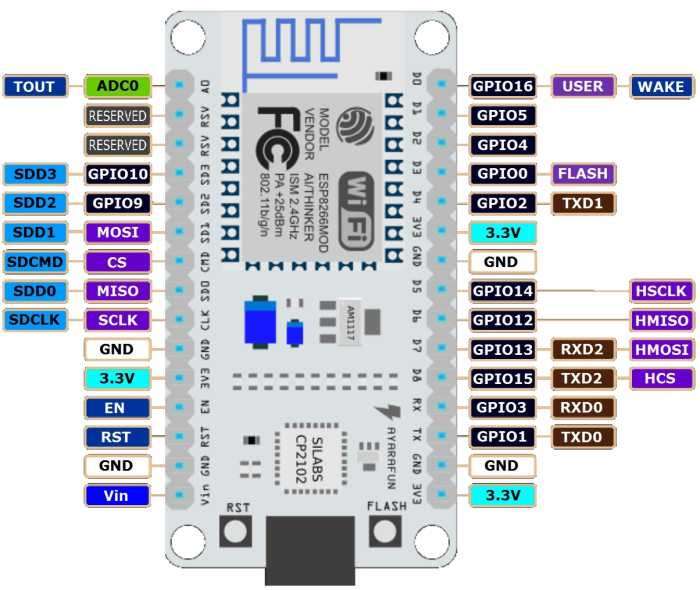

NODEMCU 脚位
IOT-传感发提醒短信给手机图4

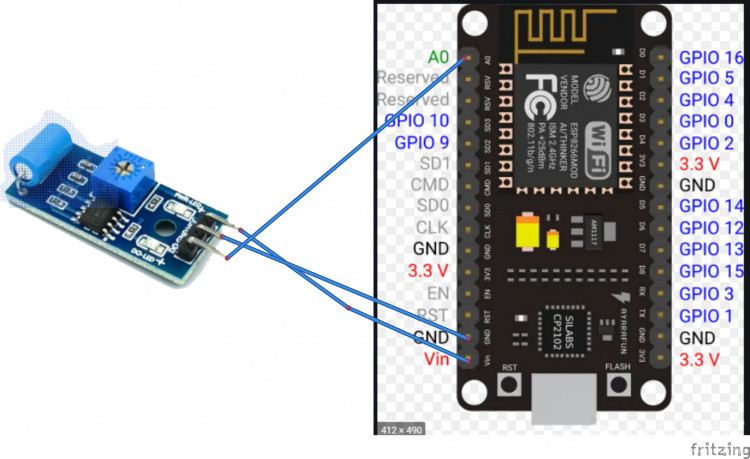

连线图

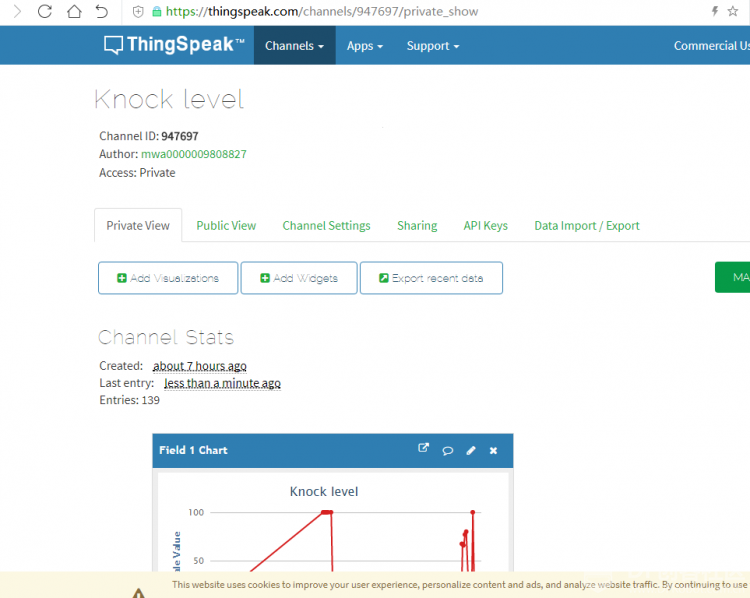

thingspeak.com登录后所见的图表
IOT-传感发提醒短信给手机图6

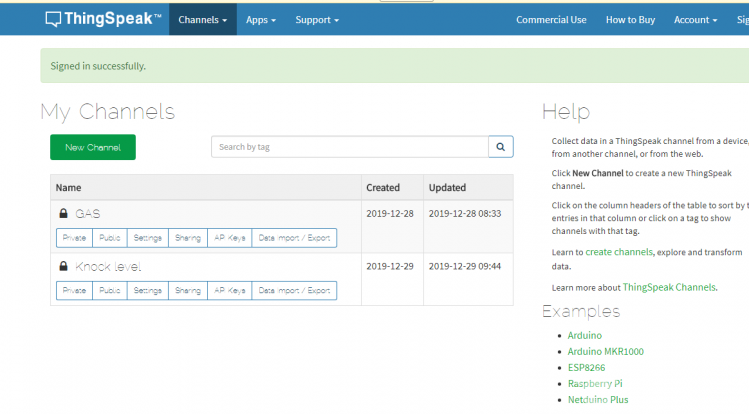

thingspeak建立通道
IOT-传感发提醒短信给手机图7

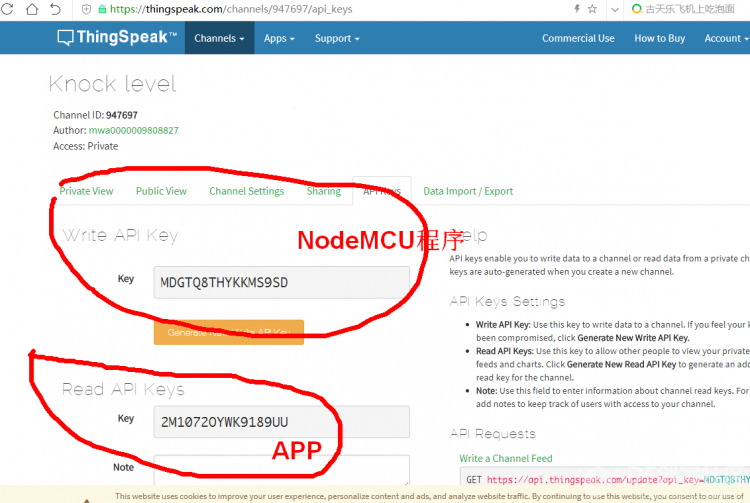

thingspeak api值

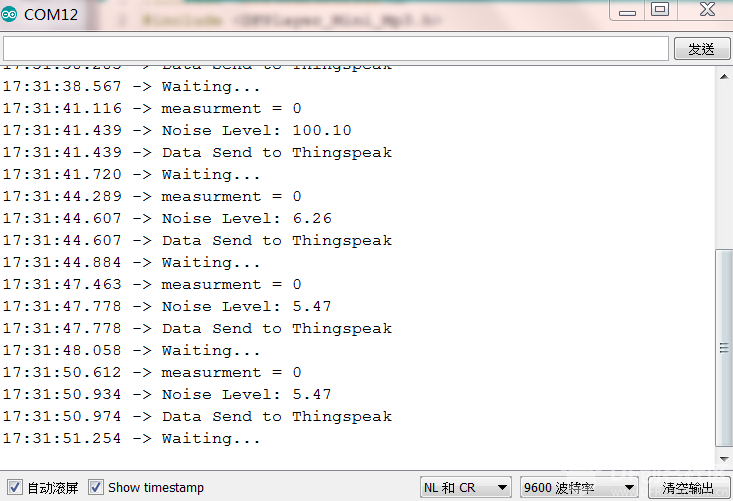

IOT-传感发提醒短信给手机图8

[mw_shl_code=applescript,true]//--------gada888 撸码-------------

#include <ESP8266WiFi.h>
String apiKey = "你的apikey";
const char *ssid = "你的WiFi名";
const char *pass = "你的wifi密码";
const char* server = "api.thingspeak.com";
WiFiClient client;

//--------------------SETUP---------------
void setup(){
Serial.begin(115200);
delay(10);
Serial.println("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid, pass);
while (WiFi.status() != WL_CONNECTED)
{
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");

}
//--------------LOOP-----------------
void loop(){

float h = analogRead(A0);
if (client.connect(server, 80))
{
String postStr = apiKey;
postStr += "&field1=";
postStr += String(h/1023*100);
postStr += "r\n";
client.print("POST /update HTTP/1.1\n");
client.print("Host: api.thingspeak.com\n");
client.print("Connection: close\n");
client.print("X-THINGSPEAKAPIKEY: " + apiKey + "\n");
client.print("Content-Type: application/x-www-form-urlencoded\n");
client.print("Content-Length: ");
client.print(postStr.length());
client.print("\n\n");
client.print(postStr);
Serial.print("Noise Level: ");
Serial.println(h/1023*100);
Serial.println("Data Send to Thingspeak");
}
client.stop();
Serial.println("Waiting...");

// thingspeak needs minimum 15 sec delay between updates.
delay(1500);

}
[/mw_shl_code]

--------------------

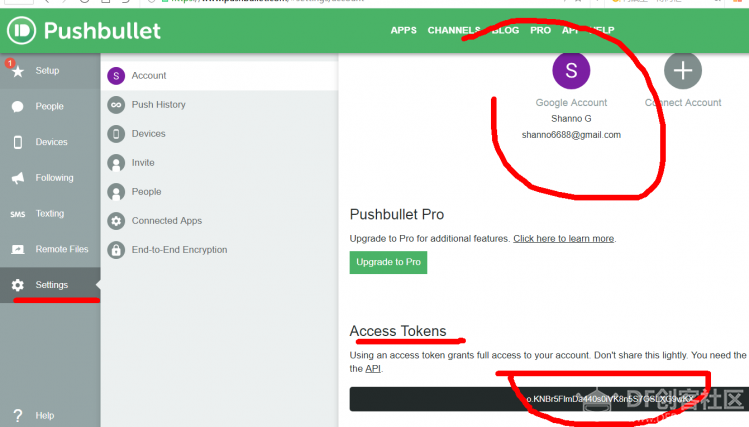

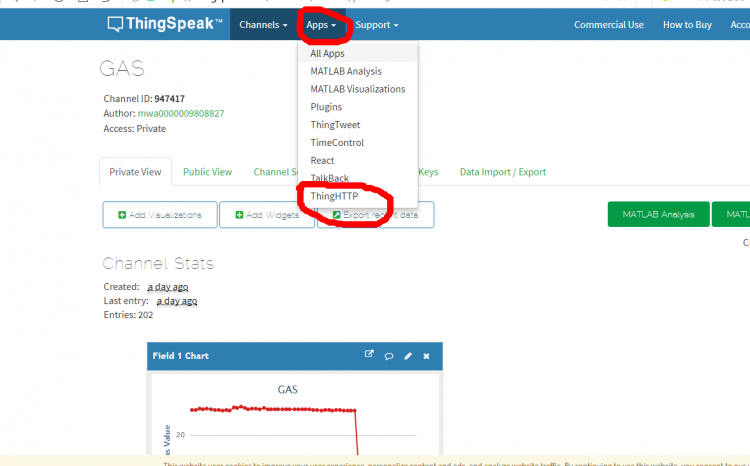

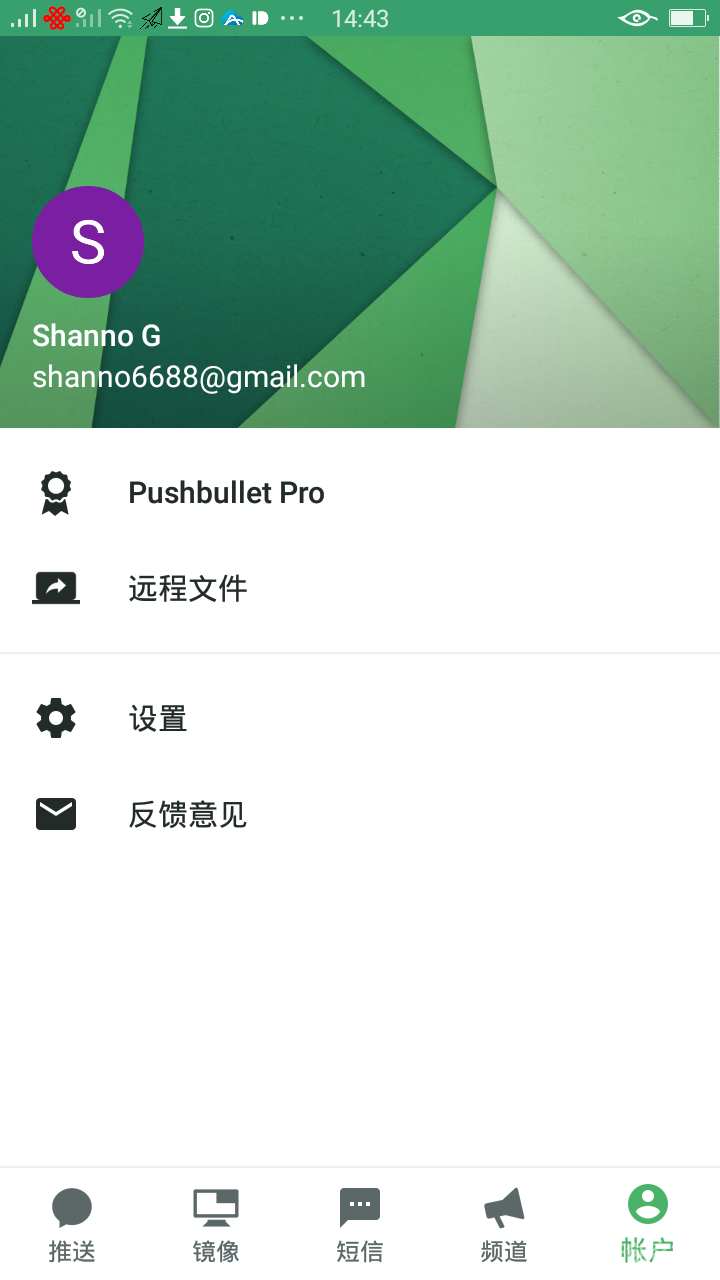

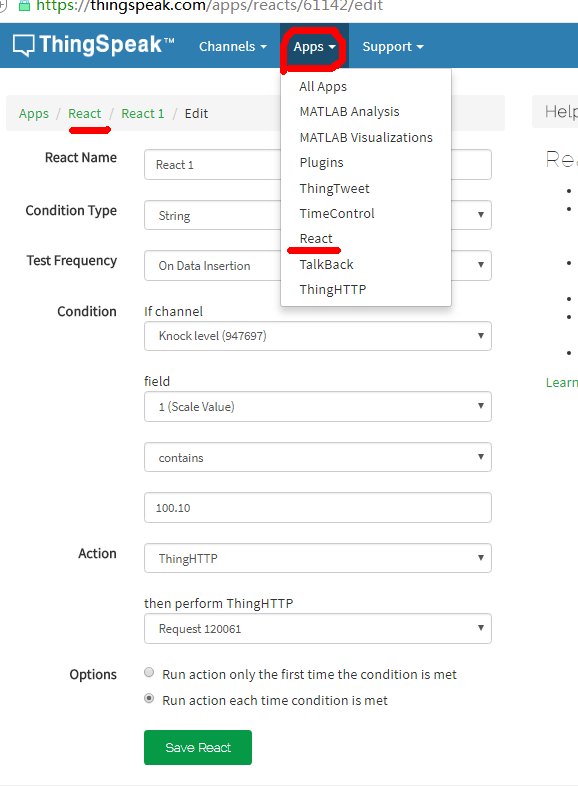

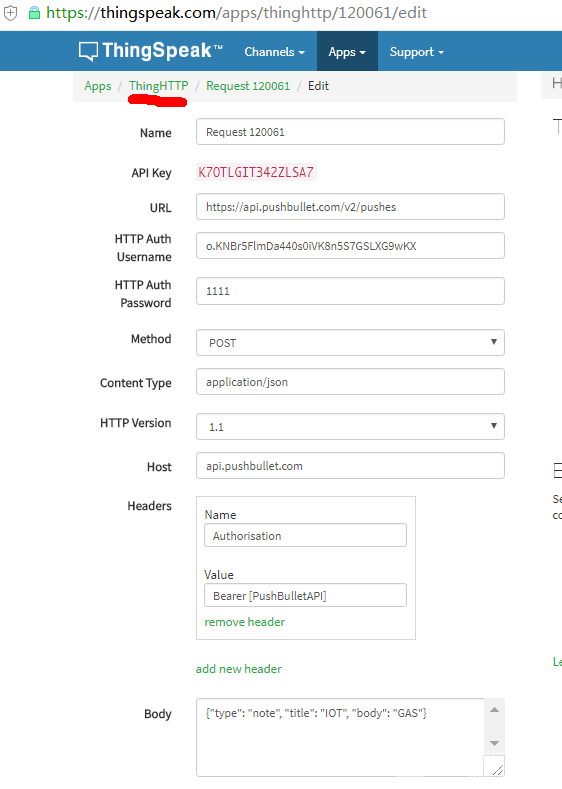

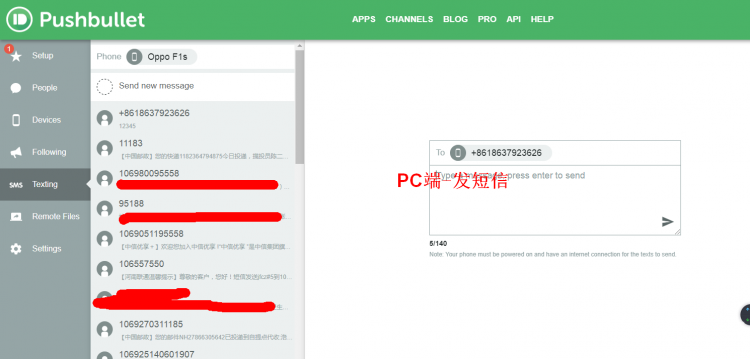

接下来是pushbullet部分和thingspeak的设置
IOT-传感发提醒短信给手机图9
