MicroPython动手做（27）——物联网之微信小程序

2020-06-022.2万
驴友花雕
驴友花雕

UID: 1737

2964文章
158粉丝
1.1万获取喜欢
AI 快速预览详细 收起
本文介绍了微信小程序的基本概念和发展历程。微信小程序是一种无需下载安装即可使用的应用，适用于多种场景，包括物联网项目。经过两年的发展，微信小程序已经覆盖200多个细分行业，日活用户达到两个亿。微信小程序的发展带来了更多的就业机会，已经成为中国IT行业的重要创新成果。
1、微信小程序

小程序的一种，英文名Wechat Mini Program，是一种不需要下载安装即可使用的应用，它实现了应用“触手可及”的梦想，用户扫一扫或搜一下即可打开应用。全面开放申请后，主体类型为企业、政府、媒体、其他组织或个人的开发者，均可申请注册小程序。微信小程序、微信订阅号、微信服务号、微信企业号是并行的体系。




微信小程序是一种不用下载就能使用的应用，也是一项创新，经过将近两年的发展，已经构造了新的微信小程序开发环境和开发者生态。微信小程序也是这么多年来中国IT行业里一个真正能够影响到普通程序员的创新成果，已经有超过150万的开发者加入到了微信小程序的开发，与我们一起共同发力推动微信小程序的发展，微信小程序应用数量超过了一百万，覆盖200多个细分的行业，日活用户达到两个亿，微信小程序还在许多城市实现了支持地铁、公交服务。微信小程序发展带来更多的就业机会，2017年小程序带动就业104万人，社会效应不断提升。




2017年1月9日，张小龙在2017微信公开课Pro上发布的微信小程序正式上线。2018年2月，微信官方发布公告称：已对涉及假货高仿、SQ低俗和违规“现金贷”等超过2000个微信小程序，进行永久封禁处理。2019年8月9日，微信向开发者发布新能力公测与更新公告，微信PC版新版本中，支持打开聊天中分享的微信小程序。


MicroPython动手做（27）——物联网之微信小程序图1


创作许可协议

本项目采用 None(不开放任何权利，保留所有权利) 进行许可。

ESP32其他平台

相关推荐

评论(33)
驴友花雕
驴友花雕
作者
MicroPython动手做（27）——物联网之微信小程序
通过小程序控制小车进、退、左和右（实验视频）
https://v.youku.com/v_show/id_XNDcwMDE3NTUwOA==.html?spm=a2h0c.8166622.PhoneSokuUgc_1.dtitle
[media=x,500,375]https://v.youku.com/v_show/id_XNDcwMDE3NTUwOA==.html?spm=a2h0c.8166622.PhoneSokuUgc_1.dtitle[/media]
驴友花雕
驴友花雕
作者
mPython 实验图形编程

驴友花雕
驴友花雕
作者
后来改为延时3秒关闭电机，小程序组件面板为

驴友花雕
驴友花雕
作者
#MicroPython动手做（27）——物联网之微信小程序
#通过小程序控制小车进、退、左和右
[mw_shl_code=python,false]#MicroPython动手做（27）——物联网之微信小程序
#通过小程序控制小车进、退、左和右
from mpython import *
import network
my_wifi = wifi()
my_wifi.connectWiFi('zh', 'zy1567')
import time
import music
from umqtt.simple import MQTTClient
from machine import Timer
import machine
import ubinascii
def OneNET_recv(_msg):pass
_OneNET_msg_list = []
def OneNET_callback(_topic, _msg):
global _OneNET_msg_list
try: _msg = _msg.decode('utf-8', 'ignore')
except: print(_msg);return
OneNET_recv(_msg)
if _msg in _OneNET_msg_list:
eval('OneNET_recv_' + bytes.decode(ubinascii.hexlify(_msg)) + '()')
tim14 = Timer(14)
_iot_count = 0
def timer14_tick(_):
global _iot, _iot_count
_iot_count = _iot_count + 1
if _iot_count == 1000: _iot.ping(); _iot_count = 0
try: _iot.check_msg()
except: machine.reset()
_iot = None
def OneNET_setup():
global _iot
_iot = MQTTClient('595250725', '183.230.40.39', 6002, '221628', 'hiN7Cwz4Gd7d3ReMnNgtaEKBvv4=', keepalive=300)
_iot.set_callback(OneNET_callback)
if 1 == _iot.connect(): print('Successfully connected to MQTT server.')
tim14.init(period=200, mode=Timer.PERIODIC, callback=timer14_tick)
import ujson
import parrot
def forward():
global _name, _value
parrot.set_speed(parrot.MOTOR_1, 80)
parrot.set_speed(parrot.MOTOR_2, 80)
oled.fill(0)
oled.blit(image_picture.load('face/Information/Forward.pbm', 0), 32, 0)
oled.show()
def retreat():
global _name, _value
parrot.set_speed(parrot.MOTOR_1, -80)
parrot.set_speed(parrot.MOTOR_2, -80)
oled.fill(0)
oled.blit(image_picture.load('face/Information/Backward.pbm', 0), 32, 0)
oled.show()
def right():
global _name, _value
parrot.set_speed(parrot.MOTOR_1, 80)
parrot.set_speed(parrot.MOTOR_2, -0)
oled.fill(0)
oled.blit(image_picture.load('face/Information/Right.pbm', 0), 32, 0)
oled.show()
def Left():
global _name, _value
parrot.set_speed(parrot.MOTOR_1, -0)
parrot.set_speed(parrot.MOTOR_2, 80)
oled.fill(0)
oled.blit(image_picture.load('face/Information/Left.pbm', 0), 32, 0)
oled.show()
def OneNET_recv(_msg):
try:
_msgObj = ujson.loads(_msg)
_name = _msgObj.get('name')
_value = _msgObj.get('value')
except: return
if _name == '进':
print(_value)
rgb.fill((int(0), int(102), int(0)))
rgb.write()
time.sleep_ms(1)
forward()
if _name == '退':
print(_value)
rgb.fill((int(51), int(51), int(255)))
rgb.write()
time.sleep_ms(1)
retreat()
if _name == '左':
print(_value)
rgb[0] = (int(0), int(102), int(0))
rgb.write()
time.sleep_ms(1)
Left()
if _name == '右':
print(_value)
rgb[2] = (int(0), int(102), int(0))
rgb.write()
time.sleep_ms(1)
right()
time.sleep(3)
parrot.set_speed(parrot.MOTOR_1, 0)
parrot.set_speed(parrot.MOTOR_2, 0)
rgb.fill( (0, 0, 0) )
rgb.write()
time.sleep_ms(1)
image_picture = Image()
rgb[1] = (int(102), int(0), int(0))
rgb.write()
time.sleep_ms(1)
music.play('G5:1')
OneNET_setup()[/mw_shl_code]
驴友花雕
驴友花雕
作者
9、通过小程序控制小车进、退、左和右
调整好的小程序控制组件面板

驴友花雕
驴友花雕
作者

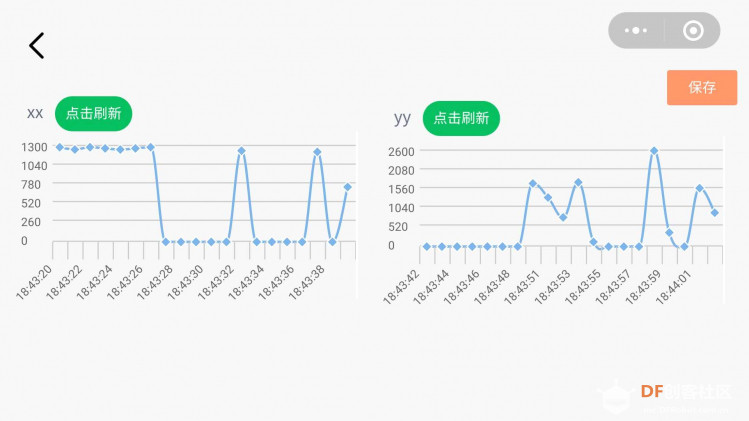

小程序上实时监控光线值和声音值



驴友花雕
驴友花雕
作者

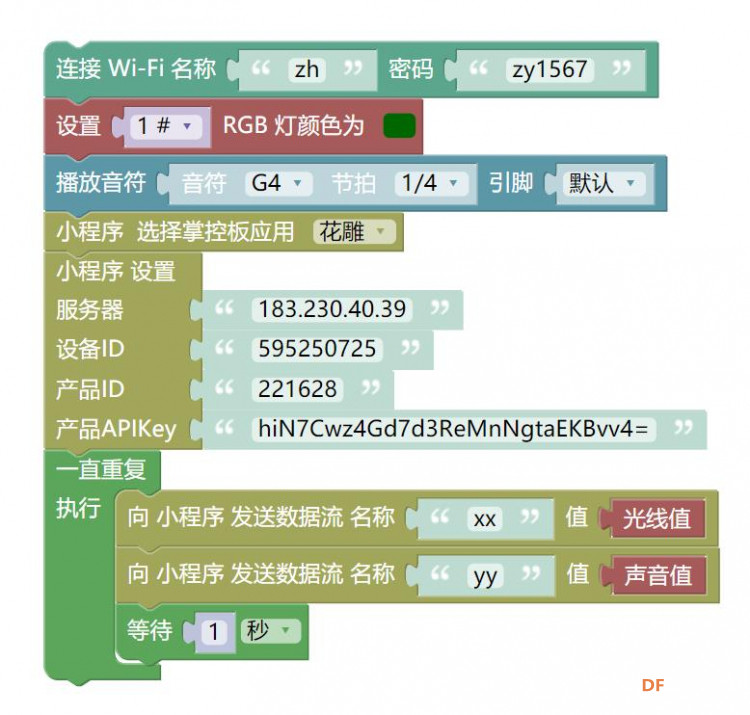

mPython X 实验图形编程

驴友花雕
驴友花雕
作者
[mw_shl_code=python,false]#MicroPython动手做（27）——物联网之微信小程序
#实时监控光线值和声音值
from mpython import *
import network
import time
import music
from umqtt.simple import MQTTClient
from machine import Timer
import machine
import ubinascii
import json
my_wifi = wifi()
my_wifi.connectWiFi("zh", "zy1567")
def OneNET_recv(_msg):pass
_OneNET_msg_list = []
def OneNET_callback(_topic, _msg):
global _OneNET_msg_list
try: _msg = _msg.decode('utf-8', 'ignore')
except: print(_msg);return
OneNET_recv(_msg)
if _msg in _OneNET_msg_list:
eval('OneNET_recv_' + bytes.decode(ubinascii.hexlify(_msg)) + '()')
tim14 = Timer(14)
_iot_count = 0
def timer14_tick(_):
global _iot, _iot_count
_iot_count = _iot_count + 1
if _iot_count == 1000: _iot.ping(); _iot_count = 0
try: _iot.check_msg()
except: machine.reset()
_iot = None
def OneNET_setup():
global _iot
_iot = MQTTClient("595250725", "183.230.40.39", 6002, "221628", "hiN7Cwz4Gd7d3ReMnNgtaEKBvv4=", keepalive=300)
_iot.set_callback(OneNET_callback)
if 1 == _iot.connect(): print('Successfully connected to MQTT server.')
tim14.init(period=200, mode=Timer.PERIODIC, callback=timer14_tick)
def pubdata(_dic):
print(_dic)
_list = []
for _key in list(_dic.keys()):
_d = {'id':_key,'datapoints':[{'value':_dic[_key]}]}
_list.append(_d)
_data = {'datastreams': _list}
j_d = json.dumps(_data)
j_l = len(j_d)
arr = bytearray(j_l + 3)
arr[0] = 1
arr[1] = int(j_l / 256)
arr[2] = j_l % 256
arr[3:] = j_d.encode('ascii')
return arr
rgb[1] = (int(0), int(102), int(0))
rgb.write()
time.sleep_ms(1)
music.play('G4:1')
OneNET_setup()
while True:
_iot.publish('$dp', pubdata({"xx":light.read()}))
_iot.publish('$dp', pubdata({"yy":sound.read()}))
time.sleep(1)[/mw_shl_code]
驴友花雕
驴友花雕
作者
8、实时监控光线值和声音值

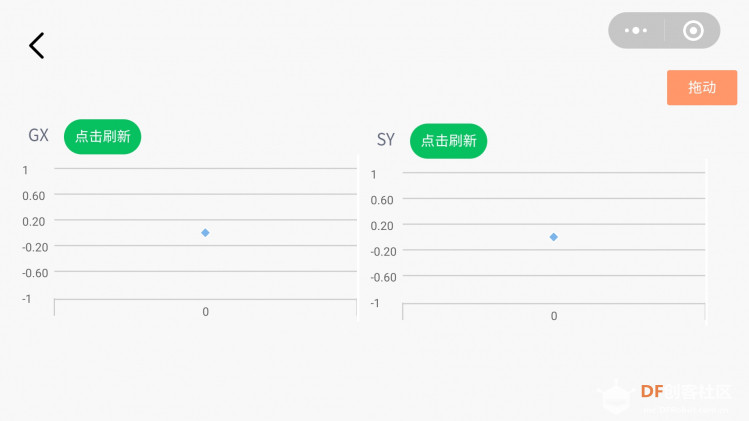

GX与SY 小程序控制组件面板

驴友花雕
驴友花雕
作者

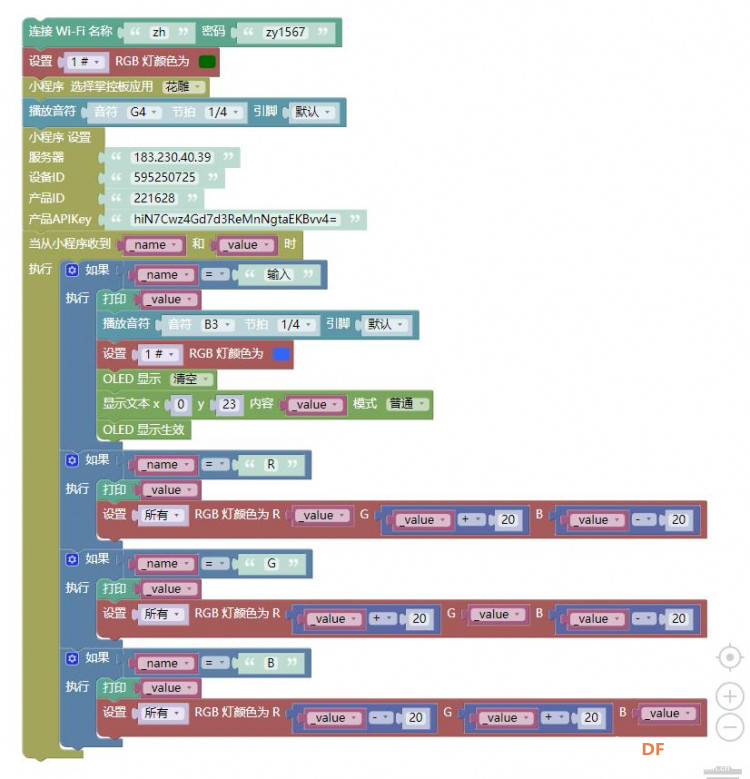

mPython X 实验图形编程

驴友花雕
驴友花雕
作者

驴友花雕
驴友花雕
作者
[mw_shl_code=python,false]#MicroPython动手做（27）——物联网之微信小程序
#带输入框的RGB三色调光板
from mpython import *
import network
import time
import music
from umqtt.simple import MQTTClient
from machine import Timer
import machine
import ubinascii
import ujson
my_wifi = wifi()
my_wifi.connectWiFi("zh", "zy1567")
def OneNET_recv(_msg):pass
_OneNET_msg_list = []
def OneNET_callback(_topic, _msg):
global _OneNET_msg_list
try: _msg = _msg.decode('utf-8', 'ignore')
except: print(_msg);return
OneNET_recv(_msg)
if _msg in _OneNET_msg_list:
eval('OneNET_recv_' + bytes.decode(ubinascii.hexlify(_msg)) + '()')
tim14 = Timer(14)
_iot_count = 0
def timer14_tick(_):
global _iot, _iot_count
_iot_count = _iot_count + 1
if _iot_count == 1000: _iot.ping(); _iot_count = 0
try: _iot.check_msg()
except: machine.reset()
_iot = None
def OneNET_setup():
global _iot
_iot = MQTTClient("595250725", "183.230.40.39", 6002, "221628", "hiN7Cwz4Gd7d3ReMnNgtaEKBvv4=", keepalive=300)
_iot.set_callback(OneNET_callback)
if 1 == _iot.connect(): print('Successfully connected to MQTT server.')
tim14.init(period=200, mode=Timer.PERIODIC, callback=timer14_tick)
def OneNET_recv(_msg):
try:
_msgObj = ujson.loads(_msg)
_name = _msgObj.get('name')
_value = _msgObj.get('value')
except: return
if _name == "输入":
print(_value)
music.play('B3:1')
rgb[1] = (int(51), int(102), int(255))
rgb.write()
time.sleep_ms(1)
oled.fill(0)
oled.DispChar(_value, 0, 23, 1)
oled.show()
if _name == "R":
print(_value)
rgb.fill( (int(_value), int((_value + 20)), int((_value - 20))) )
rgb.write()
time.sleep_ms(1)
if _name == "G":
print(_value)
rgb.fill( (int((_value + 20)), int(_value), int((_value - 20))) )
rgb.write()
time.sleep_ms(1)
if _name == "B":
print(_value)
rgb.fill( (int((_value - 20)), int((_value + 20)), int(_value)) )
rgb.write()
time.sleep_ms(1)
rgb[1] = (int(0), int(102), int(0))
rgb.write()
time.sleep_ms(1)
music.play('G4:1')
OneNET_setup()[/mw_shl_code]
驴友花雕
驴友花雕
作者

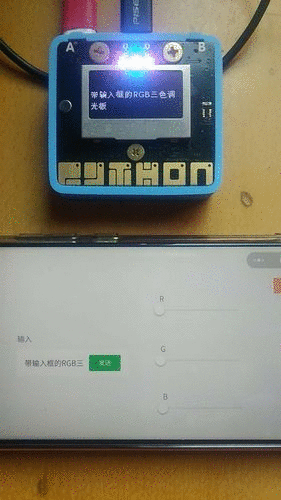

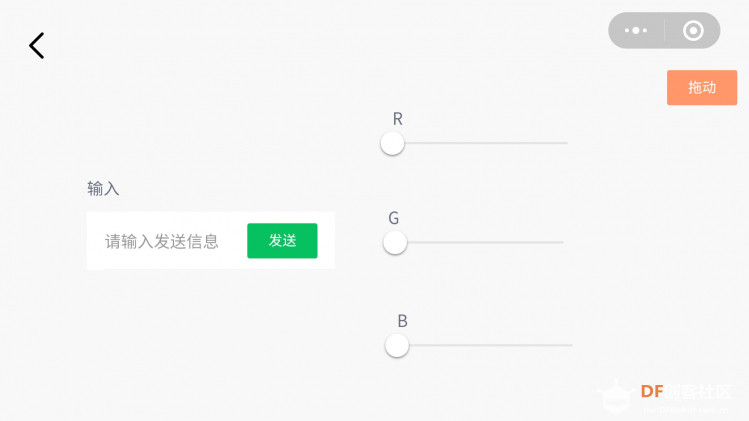

[p=28, null, left][font=Tahoma,]7、带输入框的RGB三色调光板[/font][/p][p=28, null, left][font=Tahoma,]刚添加的小程序控制组件面板[/font][/p]
[p=28, null, left][font=Tahoma,]

[/font][/p]
驴友花雕
驴友花雕
作者
mPython X 实验图形编程

驴友花雕
驴友花雕
作者
#MicroPython动手做（27）——物联网之微信小程序
#小程序控制RGB灯升级版（实验小视频）
https://v.youku.com/v_show/id_XNDY5NzE5MTIxMg==.html?spm=a2h0c.8166622.PhoneSokuUgc_1.dtitle
[media=x,500,375]https://v.youku.com/v_show/id_XNDY5NzE5MTIxMg==.html?spm=a2h0c.8166622.PhoneSokuUgc_1.dtitle[/media]
驴友花雕
驴友花雕
作者
6、小程序控制RGB灯升级版
[mw_shl_code=python,false]#MicroPython动手做（27）——物联网之微信小程序
#小程序控制RGB灯升级版
from mpython import *
import network
import time
from umqtt.simple import MQTTClient
from machine import Timer
import machine
import ubinascii
import ujson
import music
my_wifi = wifi()
my_wifi.connectWiFi("zh", "zy1567")
def OneNET_recv(_msg):pass
_OneNET_msg_list = []
def OneNET_callback(_topic, _msg):
global _OneNET_msg_list
try: _msg = _msg.decode('utf-8', 'ignore')
except: print(_msg);return
OneNET_recv(_msg)
if _msg in _OneNET_msg_list:
eval('OneNET_recv_' + bytes.decode(ubinascii.hexlify(_msg)) + '()')
tim14 = Timer(14)
_iot_count = 0
def timer14_tick(_):
global _iot, _iot_count
_iot_count = _iot_count + 1
if _iot_count == 1000: _iot.ping(); _iot_count = 0
try: _iot.check_msg()
except: machine.reset()
_iot = None
def OneNET_setup():
global _iot
_iot = MQTTClient("595250725", "183.230.40.39", 6002, "221628", "hiN7Cwz4Gd7d3ReMnNgtaEKBvv4=", keepalive=300)
_iot.set_callback(OneNET_callback)
if 1 == _iot.connect(): print('Successfully connected to MQTT server.')
tim14.init(period=200, mode=Timer.PERIODIC, callback=timer14_tick)
image_picture = Image()
def OneNET_recv(_msg):
try:
_msgObj = ujson.loads(_msg)
_name = _msgObj.get('name')
_value = _msgObj.get('value')
except: return
if _name == "开灯":
print(_value)
music.play('B5:1')
rgb.fill((int(255), int(0), int(0)))
rgb.write()
time.sleep_ms(1)
oled.fill(0)
oled.blit(image_picture.load('face/Objects/Light on.pbm', 0), 32, 0)
oled.show()
if _name == "关灯":
print(_value)
music.play('E5:1')
rgb.fill( (0, 0, 0) )
rgb.write()
time.sleep_ms(1)
oled.fill(0)
oled.blit(image_picture.load('face/Objects/Light off.pbm', 0), 32, 0)
oled.show()
rgb[1] = (int(0), int(102), int(0))
rgb.write()
time.sleep_ms(1)
OneNET_setup()[/mw_shl_code]
驴友花雕
驴友花雕
作者

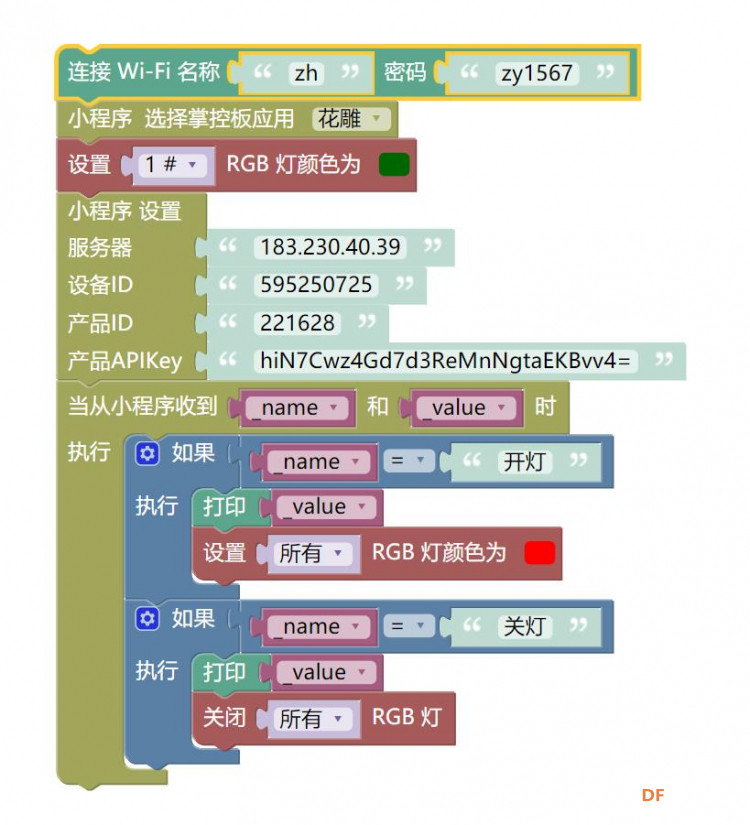

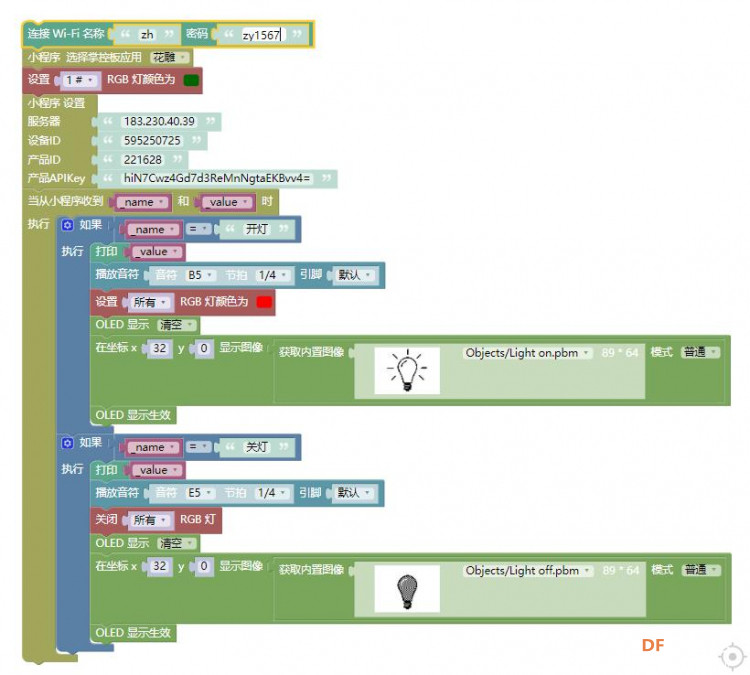

mPython X 实验图形编程

驴友花雕
驴友花雕
作者

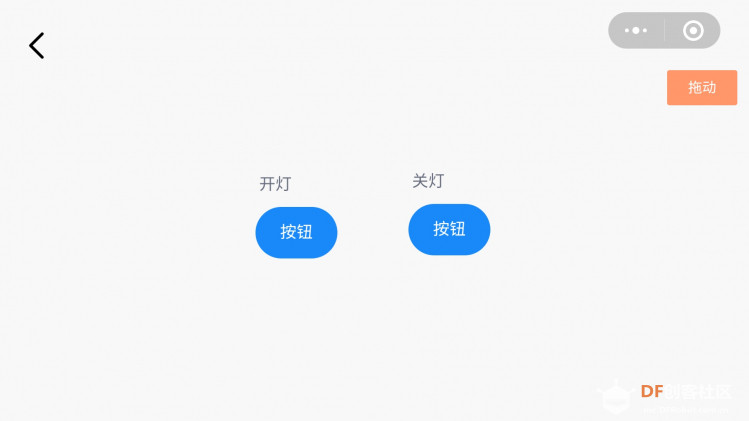

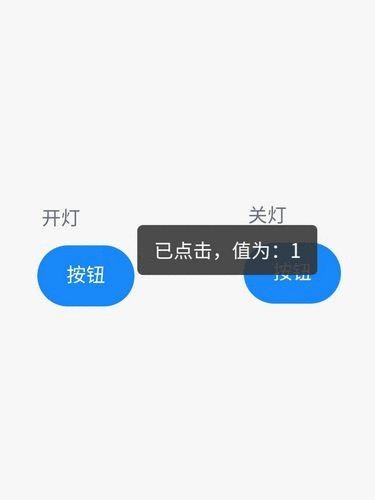

尝试通过小程序来控制板载RGB灯

驴友花雕
驴友花雕
作者
#MicroPython动手做（27）——物联网之微信小程序
#尝试通过小程序来控制板载RGB灯
[mw_shl_code=python,false]#MicroPython动手做（27）——物联网之微信小程序
#尝试通过小程序来控制板载RGB灯
from mpython import *
import network
import time
from umqtt.simple import MQTTClient
from machine import Timer
import machine
import ubinascii
import ujson
my_wifi = wifi()
my_wifi.connectWiFi("zh", "zy1567")
def OneNET_recv(_msg):pass
_OneNET_msg_list = []
def OneNET_callback(_topic, _msg):
global _OneNET_msg_list
try: _msg = _msg.decode('utf-8', 'ignore')
except: print(_msg);return
OneNET_recv(_msg)
if _msg in _OneNET_msg_list:
eval('OneNET_recv_' + bytes.decode(ubinascii.hexlify(_msg)) + '()')
tim14 = Timer(14)
_iot_count = 0
def timer14_tick(_):
global _iot, _iot_count
_iot_count = _iot_count + 1
if _iot_count == 1000: _iot.ping(); _iot_count = 0
try: _iot.check_msg()
except: machine.reset()
_iot = None
def OneNET_setup():
global _iot
_iot = MQTTClient("595250725", "183.230.40.39", 6002, "221628", "hiN7Cwz4Gd7d3ReMnNgtaEKBvv4=", keepalive=300)
_iot.set_callback(OneNET_callback)
if 1 == _iot.connect(): print('Successfully connected to MQTT server.')
tim14.init(period=200, mode=Timer.PERIODIC, callback=timer14_tick)
def OneNET_recv(_msg):
try:
_msgObj = ujson.loads(_msg)
_name = _msgObj.get('name')
_value = _msgObj.get('value')
except: return
if _name == "开灯":
print(_value)
rgb.fill((int(255), int(0), int(0)))
rgb.write()
time.sleep_ms(1)
if _name == "关灯":
print(_value)
rgb.fill( (0, 0, 0) )
rgb.write()
time.sleep_ms(1)
rgb[1] = (int(0), int(102), int(0))
rgb.write()
time.sleep_ms(1)
OneNET_setup()[/mw_shl_code]
驴友花雕
驴友花雕
作者
拖动按钮至合适位置并保存

驴友花雕
驴友花雕

UID: 1737

2964文章
158粉丝
1.1万获取喜欢

创作许可协议

本项目采用 None(不开放任何权利，保留所有权利) 进行许可。

相关推荐

欧盟发布2026版AI教学指南
欧盟发布2026版AI教学指南木子哦的用户头像木子哦17220
【花雕动手做】使用4040铝型材与250W减速电机的底盘小车
【花雕动手做】使用4040铝型材与250W减速电机的底盘小车驴友花雕的用户头像驴友花雕700
BLE Arduino开发神器 Bluno Beetle开启免费试用啦！
BLE Arduino开发神器 Bluno Beetle开启免费试用啦！Ash1的用户头像Ash12.3万0
