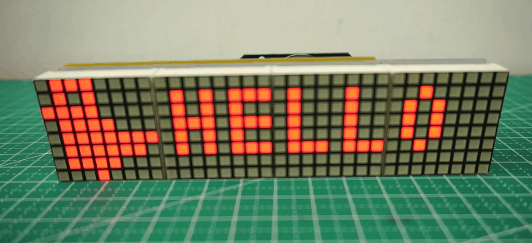

[项目] 【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用

[复制链接]

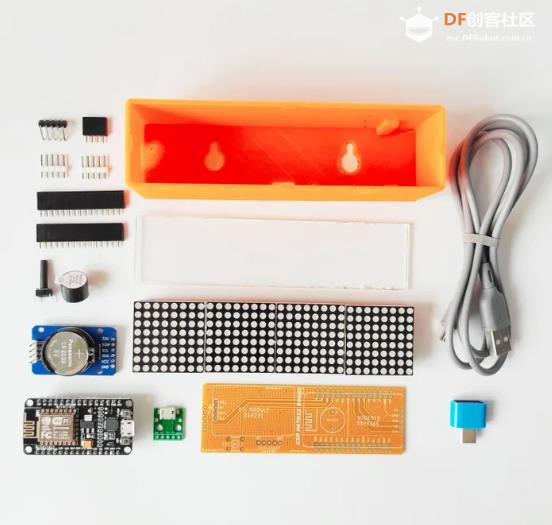

以下是制作此项目所需的组件:

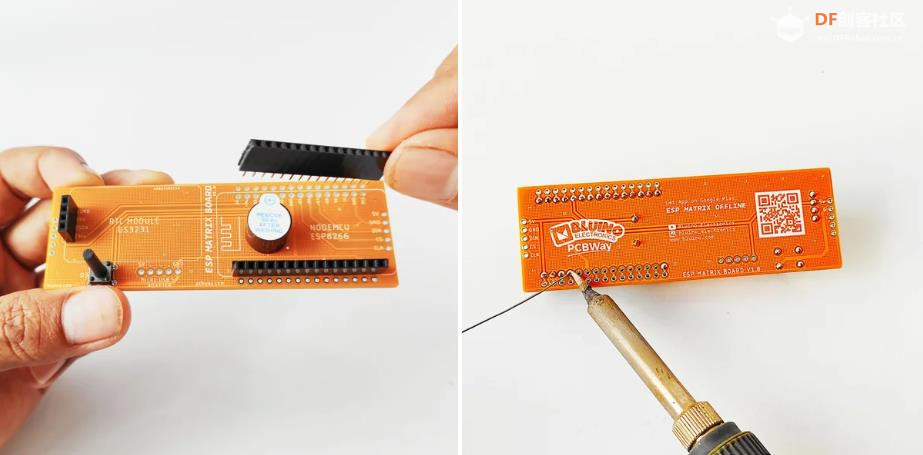

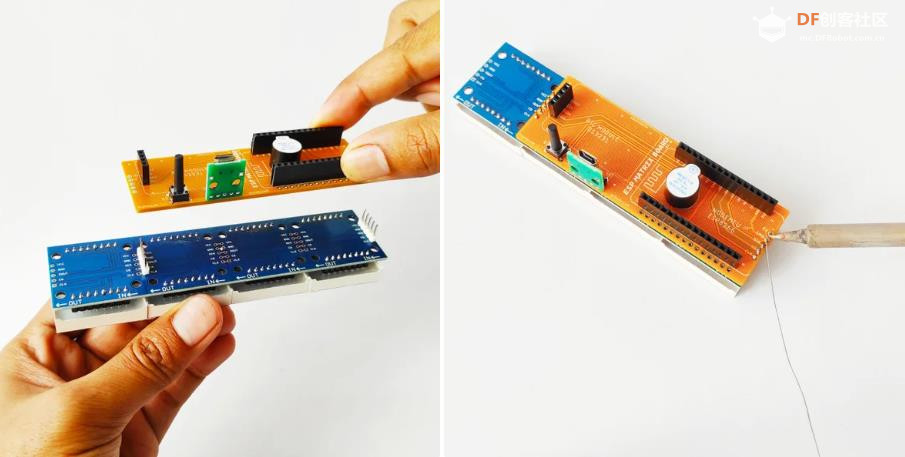

1 x PCB ESP 矩阵板 (PCBWAY)

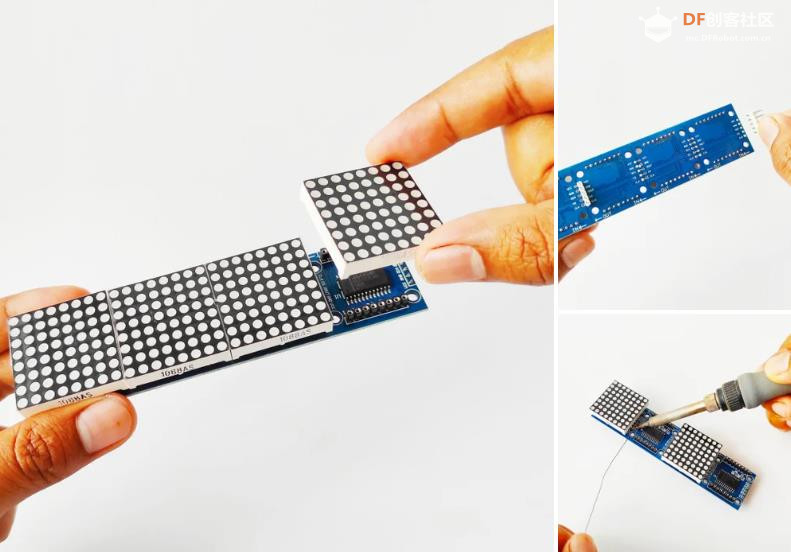

1 x LED 点阵 MAX7219 4 合 1 模块
1 个 NodeMCU Amica ESP8266
1 x USB 转 TTL CP2012 模块
1 x RTC DS3231模块
1 x 有源蜂鸣器 5V
1 x 轻触开关 22mm
1 x 5 针公头 90 度
2 x 5 针公头接头
2 x 15 针母头
1 x 4 针母头
USB OTG 适配器
微型 USB 数据线

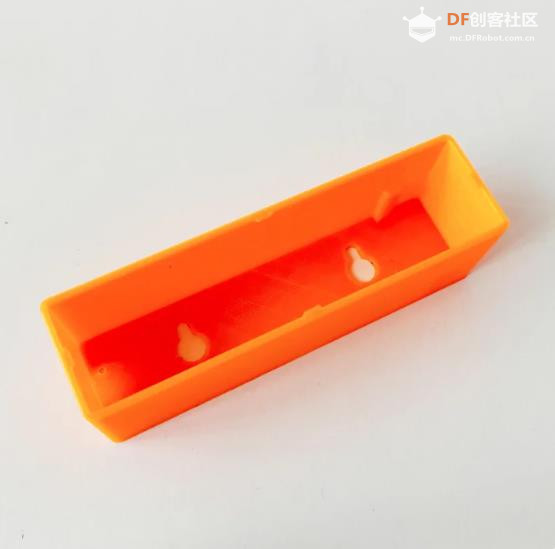

案例 3D 打印部件
亚克力透明 3mm

上传固件

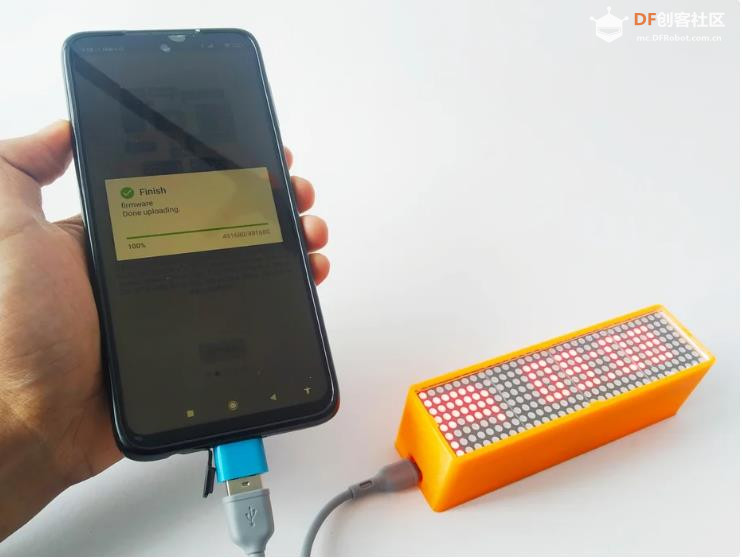

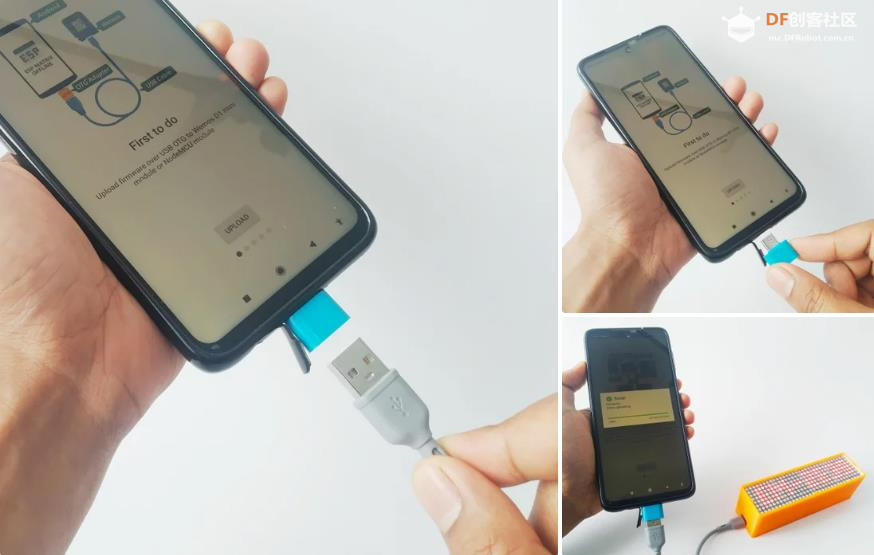

1) 对 Nodemcu ESP8266(ESP Matrix 设备)进行编程非常简单,您只需通过微型 USB 数据线和 OTG 适配器将 Nodemcu(ESP Matrix 设备)连接到 Android 手机,见图。注意:背面的 Micro USB 插座仅供电(不是线路到编程 Nodemcu)
2) 然后从 Google Playstore 安装 ESP Matrix Offline 应用程序。
3) 在第一个欢迎屏幕中,点击上传按钮。

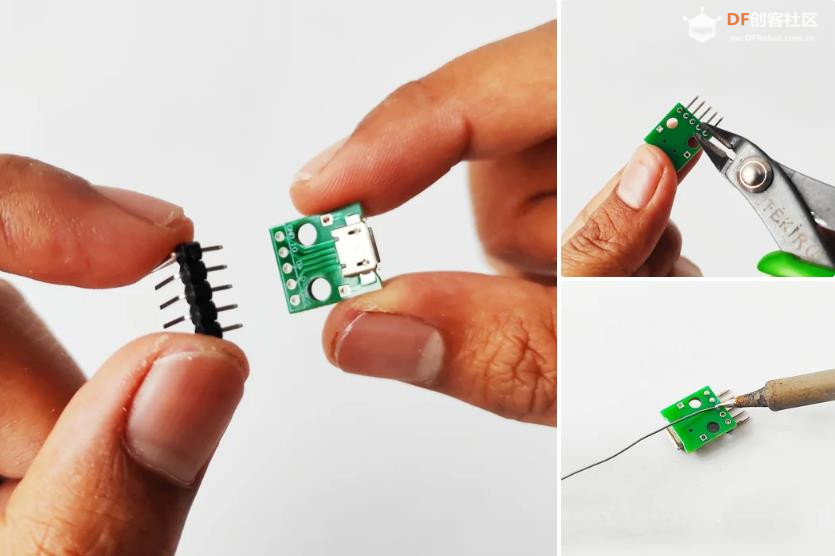

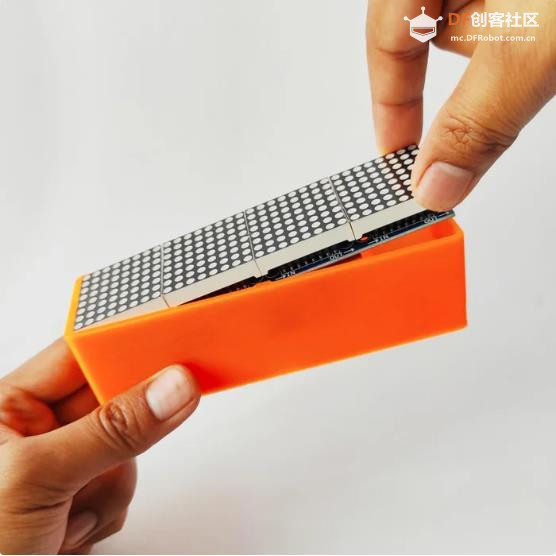

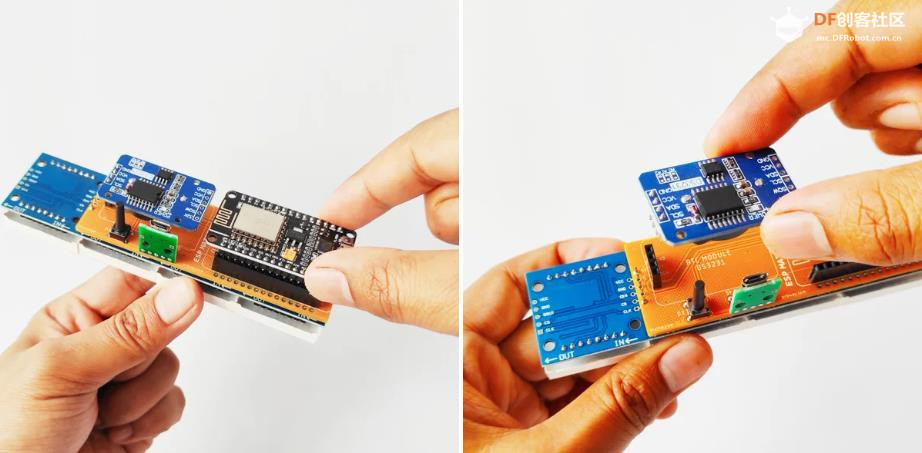

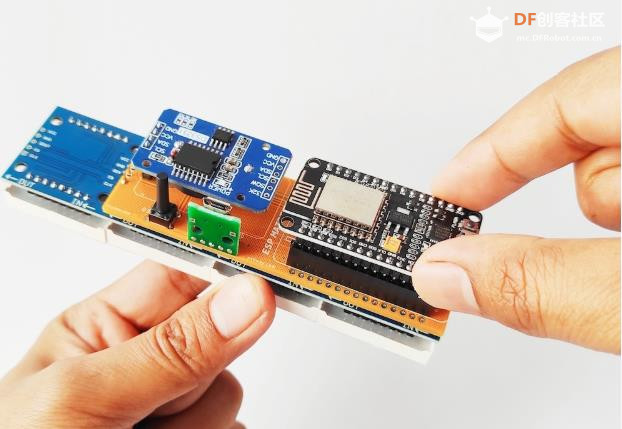

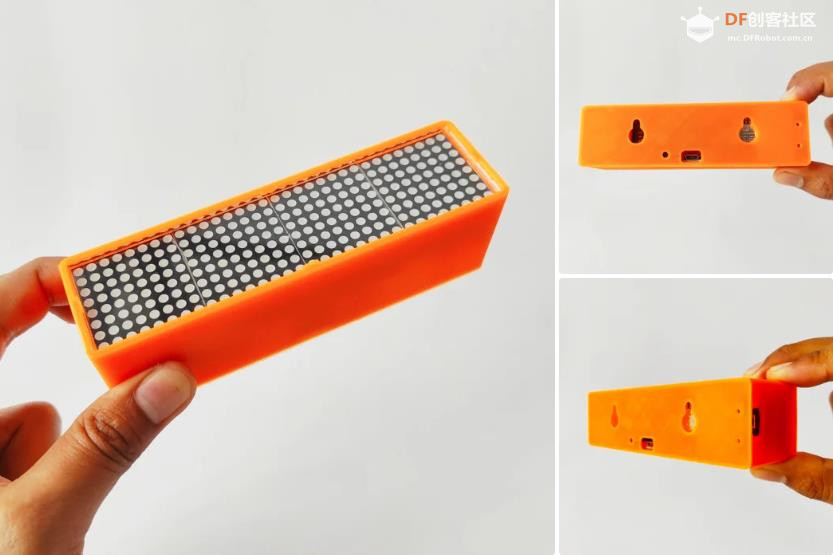

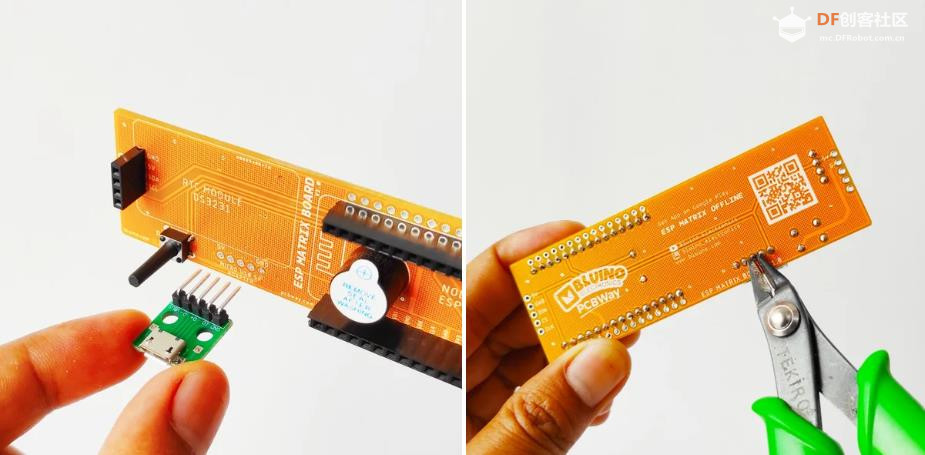

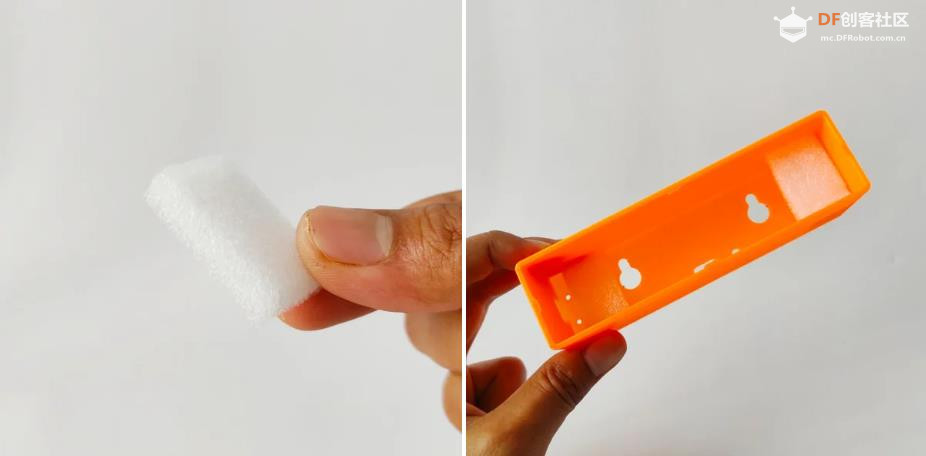

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图2

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图1

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图3

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图5

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图4

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图6

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图7

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图8

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图9

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图10

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图11

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图13

【Arduino 动手做】数字时钟 LED 点阵 - ESP32 应用图12

驴友花雕  中级技神
 楼主|

发表于 3 天前

【Arduino 动手做】数字时钟 LED 点阵 - ESP 应用

【Arduino 动手做】数字时钟 LED 点阵 - ESP Matrix Android 应用
项目链接:https://www.instructables.com/Di ... -Matrix-Android-Ap/
项目作者:印度尼西亚 bluino_electronics

项目视频:https://www.youtube.com/watch?v=V67sp4fTYZA
PCB文件:https://www.pcbway.com/project/s ... Fi_Android_App.html
3D STL 文件:https://www.thingiverse.com/thing:4695742
固件:https://play.google.com/store/ap ... om.bluino.espmatrix
