[项目] 【Arduino 动手做】DIY Arduino 模拟时钟

[复制链接]
一个有趣的漂亮的模拟式时钟，它的构建也非常简单。

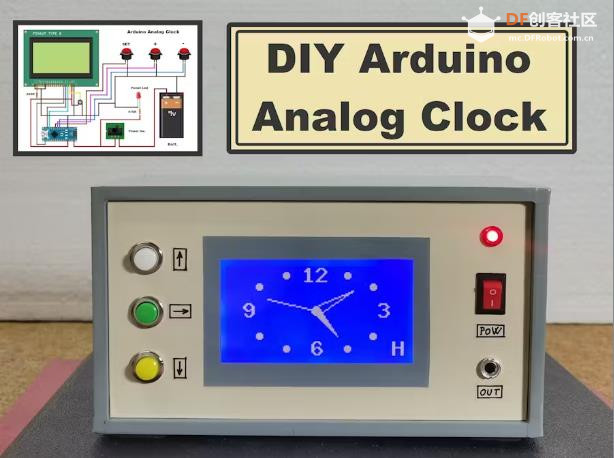

这次我将向您展示如何制作一个有趣的好看的时钟，它的构建也非常简单。确切的时间时间以椭圆形模拟时钟的形式显示在大型 LCD 屏幕上。时间也可以借助三个按钮轻松调节。

在这种情况下，为了简单起见，没有使用实时时钟模块，因此精度没有那么高，主要取决于微控制器内的晶体。

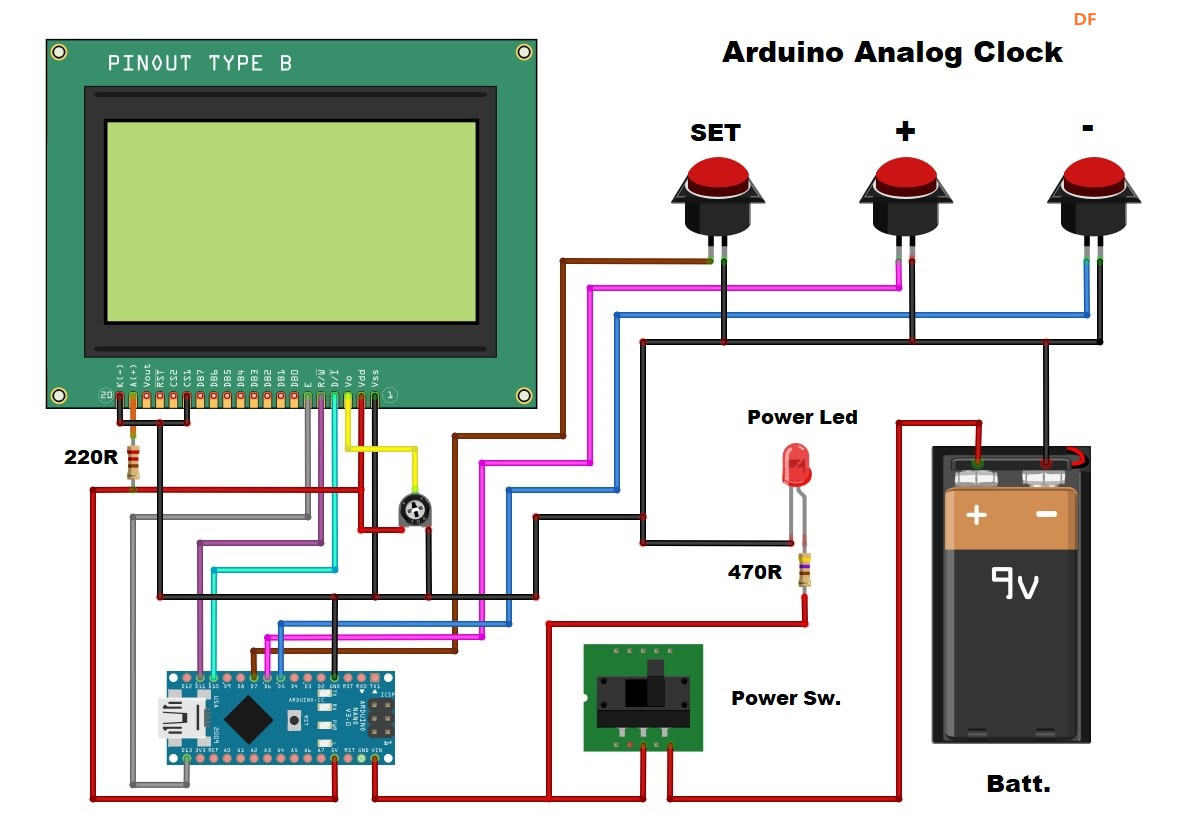

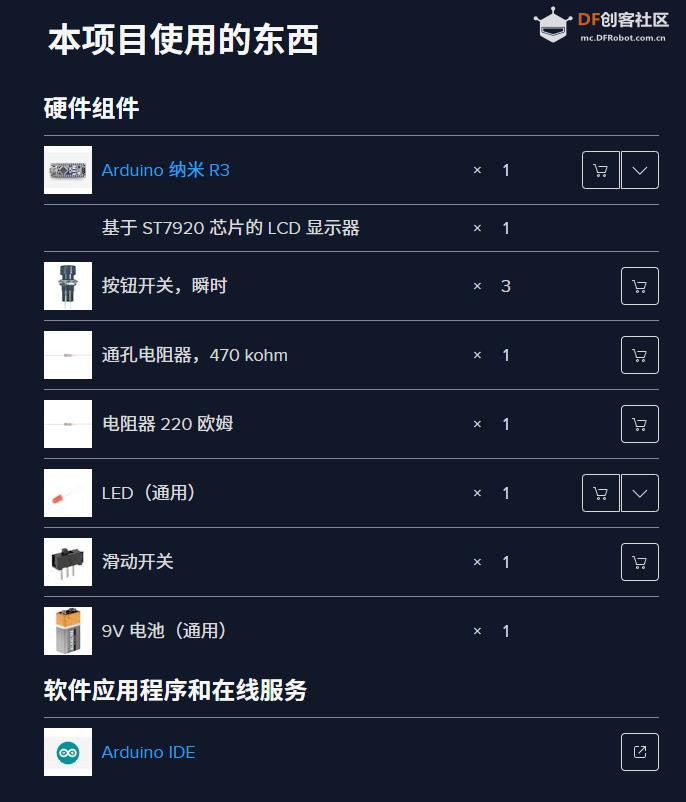

该设备由几个组件组成：
- Arduino Nano 微控制器
- 基于 ST7920 芯片的 LCD 显示屏，分辨率为 128x64 点
- 和三个按钮

基本代码是从 blaber.com.pl 站点下载的，方法是将其调整为上述显示，比原始显示更易于访问且便宜得多。代码是对数字时钟的修改，虽然它可以工作，但它仍然需要在图形上做大量的工作。这是如何使用 u8g2 库在不同类型的显示器上绘制对象和写入文本的一个很好的示例。

开机时，时间是12：00，我们必须手动设置当前时间。我们在三个按钮的帮助下使它变得简单。中间按钮用于进入设置模式，第一次点击设置分钟，第二次点击小时。在设置模式下，箭头在其他两个按钮的帮助下移动。在精度方面，考虑到我们不使用 RTC 模块，时钟非常准确。就我而言，24 小时实时与时钟之间的差异只有几秒钟。

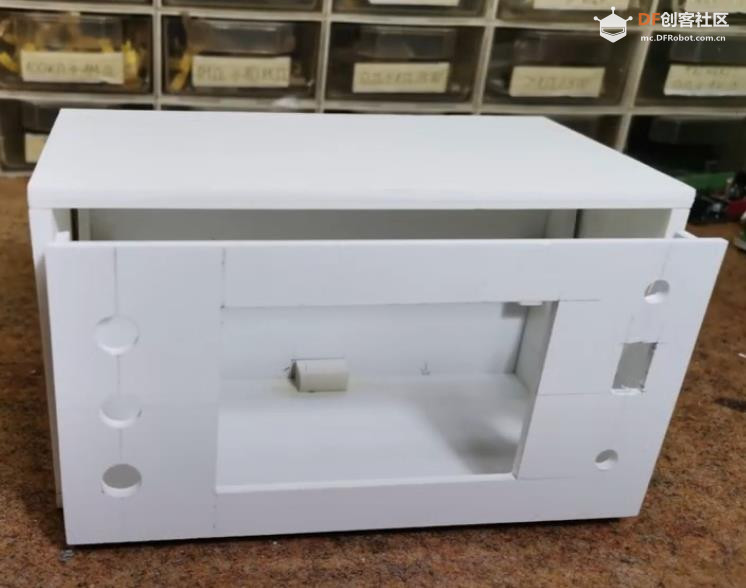

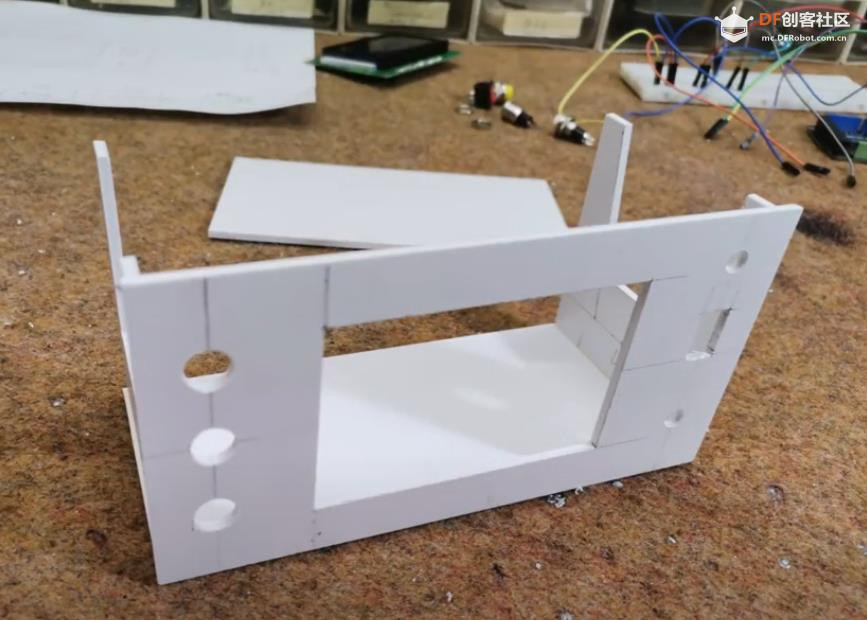

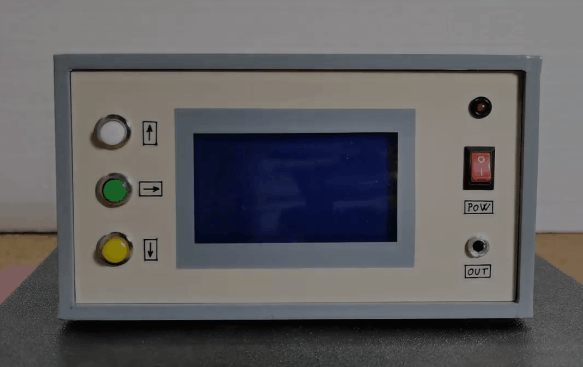

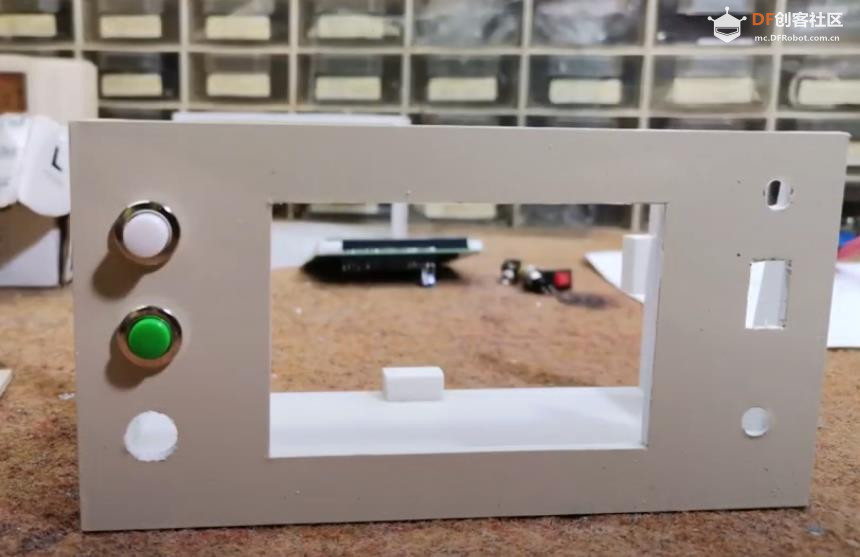

最后，将设备内置到一个合适的盒子中，由厚度为 3 毫米和 5 毫米的 PVC 材料制成，并涂有不干胶彩色壁纸。

【Arduino 动手做】DIY Arduino 模拟时钟图1

【Arduino 动手做】DIY Arduino 模拟时钟图3

【Arduino 动手做】DIY Arduino 模拟时钟图2

【Arduino 动手做】DIY Arduino 模拟时钟图4

【Arduino 动手做】DIY Arduino 模拟时钟图6

【Arduino 动手做】DIY Arduino 模拟时钟图5

回复

使用道具 举报

精彩评论(2)

驴友花雕  中级技神
 楼主|

发表于 3 小时前

【Arduino 动手做】DIY Arduino 模拟时钟

项目代码

  1. #include <Arduino.h>

  2. #include <U8g2lib.h>

  3. #include <TimerOne.h>

  4.

  5.

  6.

  7. U8G2_ST7920_128X64_1_SW_SPI u8g2(U8G2_R2, /* clock=*/ 13, /* data=*/ 11, /* CS=*/ 10, /* reset=*/ 8);

  8.

  9.

  10. byte inPin1 = 7;                  //digital input sw-1 marking hours or minutes

  11. byte inPin2 = 6;                  //sw-2 digital input correcting minutes

  12. byte inPin3 = 5;                  //digital input sw-3 correcting hours

  13. byte P1, P2;                      //button states

  14. uint8_t s, m, g;                  //declaration of seconds, minutes and hours

  15. boolean kropki;                   //variable of the dots

  16. const char tarczaX[60] = {        //X coordinates of the target points

  17.   64, 61, 56, 53, 50, 48, 45, 42, 40, 40,

  18.   35, 34, 31, 29, 28, 28, 28, 29, 31, 34,

  19.   35, 38, 40, 42, 45, 48, 50, 53, 56, 61,

  20.   64, 68, 72, 76, 79, 82, 85, 87, 90, 92,

  21.   94, 96, 98, 99, 100, 100, 100, 99, 98, 96,

  22.   94, 92, 90, 87, 85, 82, 79, 76, 68, 64 };

  23. const char tarczaY[60] = {        //y coordinates of the target points

  24.   54, 54, 54, 54, 53, 52, 51, 49, 48, 48,

  25.   44, 43, 40, 37, 35, 32, 27, 26, 23, 21,

  26.   19, 17, 15, 13, 12, 10,  9,  8,  8,  8,

  27.    8,  8,  8,  8,  8,  9, 10, 12, 13, 15,

  28.   17, 19, 21, 23, 26, 32, 35, 37, 40, 42,

  29.   44, 46, 48, 48, 48, 52, 53, 54, 54, 54 };

  30.

  31. void setup() {

  32.   u8g2.begin();

  33.   pinMode(inPin1, INPUT_PULLUP);          //setting the pin as a digital input

  34.   pinMode(inPin2, INPUT_PULLUP);

  35.   pinMode(inPin3, INPUT_PULLUP);

  36.   u8g2.setContrast(220);

  37.   Timer1.initialize(1000000);

  38.   Timer1.attachInterrupt(toggleOutput);

  39.   P1 = 0; P2 = 0; s = 0; m = 0; g = 0;

  40.

  41. }

  42.

  43. void loop() {

  44.   u8g2.setFont(u8g2_font_9x15B_tr);

  45.   u8g2.setFontDirection(2);           //select the direction of subtitles

  46.   Dipsw();

  47.   u8g2.firstPage();

  48.   char m_str[3];

  49.   strcpy(m_str, u8x8_u8toa(m, 2));    //Replace m with a string with 2 digits

  50.   do {

  51.     u8g2.drawStr(115,27,"9");

  52.     u8g2.drawStr(20,27,"3");

  53.     u8g2.drawStr(67,0,"6");

  54.     u8g2.drawStr(73,52,"12");

  55.     u8g2.drawDisc(64,32,3);                     //center of the clock

  56.     u8g2.drawDisc(42,57,2);                     //hour 1

  57.     u8g2.drawDisc(24,49,2);                     //hour 2

  58.     u8g2.drawDisc(24,14,2);                     //hour 4

  59.     u8g2.drawDisc(42,5,2);                      //hour 5

  60.     u8g2.drawDisc(85,5,2);                      //hour 7

  61.     u8g2.drawDisc(104,14,2);                    //hour 8

  62.     u8g2.drawDisc(104,49,2);                    //hour 10

  63.     u8g2.drawDisc(85,57,2);                     //hour 11

  64.     if (P1 == 1){ u8g2.drawStr(10,0,"M");}      //marking correcting minutes

  65.     if (P1 == 2){ u8g2.drawStr(10,0,"H");}      //marking of correcting hours

  66.     //drawing hour hand

  67.     if (g == 0 or g == 12){u8g2.drawTriangle(64,49, 67,32, 61,32);}

  68.     if (g == 1 or g == 13){u8g2.drawTriangle(50,49, 67,34, 61,30);}

  69.     if (g == 2 or g == 14){u8g2.drawTriangle(40,42, 65,35, 60,30);}

  70.     if (g == 3 or g == 15){u8g2.drawTriangle(32,32, 64,35, 64,29);}

  71.     if (g == 4 or g == 16){u8g2.drawTriangle(40,21, 63,29, 63,35);}

  72.     if (g == 5 or g == 17){u8g2.drawTriangle(48,13, 66,30, 62,34);}

  73.     if (g == 6 or g == 18){u8g2.drawTriangle(64,13, 68,32, 60,32);}

  74.     if (g == 7 or g == 19){u8g2.drawTriangle(79,13, 67,34, 62,30);}

  75.     if (g == 8 or g == 20){u8g2.drawTriangle(88,21, 66,35, 63,30);}

  76.     if (g == 9 or g == 21){u8g2.drawTriangle(96,32, 64,35, 64,29);}

  77.     if (g == 10 or g == 22){u8g2.drawTriangle(88,42, 64,35, 65,28);}

  78.     if (g == 11 or g == 23){u8g2.drawTriangle(79,49, 67,31, 62,35);}

  79.     //drawing a second hand

  80.     u8g2.drawLine(64,32, tarczaX[s], tarczaY[s]);

  81.     // draw minute hand

  82.     //u8g2.drawStr(20,50,m_str);

  83.     if (m == 0) {u8g2.drawLine(67,32, 64,54); u8g2.drawLine(61,32, 64,54);}

  84.     if (m == 1) {u8g2.drawLine(67,32, 60,54); u8g2.drawLine(61,32, 60,54);}

  85.     if (m == 2) {u8g2.drawLine(67,32, 56,54); u8g2.drawLine(61,32, 56,54);}

  86.     if (m == 3) {u8g2.drawLine(66,33, 53,54); u8g2.drawLine(61,31, 53,54);}

  87.     if (m == 4) {u8g2.drawLine(66,33, 50,53); u8g2.drawLine(61,31, 50,53);}

  88.     if (m == 5) {u8g2.drawLine(65,34, 48,52); u8g2.drawLine(61,30, 48,52);}

  89.     if (m == 6) {u8g2.drawLine(64,34, 45,51); u8g2.drawLine(61,30, 45,51);}

  90.     if (m == 7) {u8g2.drawLine(64,34, 42,49); u8g2.drawLine(61,30, 42,49);}

  91.     if (m == 8) {u8g2.drawLine(64,34, 40,48); u8g2.drawLine(61,30, 40,48);}

  92.     if (m == 9) {u8g2.drawLine(64,35, 38,46); u8g2.drawLine(61,30, 38,46);}

  93.     if (m == 10) {u8g2.drawLine(65,35, 35,44); u8g2.drawLine(62,30, 35,44);}

  94.     if (m == 11) {u8g2.drawLine(64,35, 34,43); u8g2.drawLine(62,29, 34,43);}

  95.     if (m == 12) {u8g2.drawLine(64,35, 31,40); u8g2.drawLine(62,29, 31,40);}

  96.     if (m == 13) {u8g2.drawLine(64,35, 29,37); u8g2.drawLine(63,29, 29,37);}

  97.     if (m == 14) {u8g2.drawLine(64,35, 28,35); u8g2.drawLine(63,29, 28,35);}

  98.     if (m == 15) {u8g2.drawLine(64,35, 28,32); u8g2.drawLine(63,29, 28,32);} //

  99.     if (m == 16) {u8g2.drawLine(63,35, 28,27); u8g2.drawLine(64,29, 28,27);}

  100.     if (m == 17) {u8g2.drawLine(63,35, 29,26); u8g2.drawLine(64,29, 29,26);}

  101.     if (m == 18) {u8g2.drawLine(63,35, 31,23); u8g2.drawLine(64,29, 31,23);}

  102.     if (m == 19) {u8g2.drawLine(63,35, 34,21); u8g2.drawLine(64,29, 34,21);}

  103.     if (m == 20) {u8g2.drawLine(63,35, 35,19); u8g2.drawLine(65,29, 35,19);}

  104.     if (m == 21) {u8g2.drawLine(63,35, 38,17); u8g2.drawLine(65,29, 38,17);}

  105.     if (m == 22) {u8g2.drawLine(62,34, 40,15); u8g2.drawLine(65,29, 40,15);}

  106.     if (m == 23) {u8g2.drawLine(62,34, 42,13); u8g2.drawLine(65,29, 42,13);}

  107.     if (m == 24) {u8g2.drawLine(62,34, 45,12); u8g2.drawLine(66,29, 45,12);}

  108.     if (m == 25) {u8g2.drawLine(61,34, 48,10); u8g2.drawLine(66,32, 48,10);}

  109.     if (m == 26) {u8g2.drawLine(61,33, 50,9); u8g2.drawLine(66,30, 50,9);}

  110.     if (m == 27) {u8g2.drawLine(66,32, 53,8); u8g2.drawLine(61,33, 53,8);}

  111.     if (m == 28) {u8g2.drawLine(67,32, 56,8); u8g2.drawLine(61,33, 56,8);}

  112.     if (m == 29) {u8g2.drawLine(67,32, 61,8); u8g2.drawLine(61,32, 61,8);}

  113.     if (m == 30) {u8g2.drawLine(67,32, 64,8); u8g2.drawLine(61,32, 64,8);} ///

  114.     if (m == 31) {u8g2.drawLine(67,32, 68,8); u8g2.drawLine(61,32, 68,8);}

  115.     if (m == 32) {u8g2.drawLine(67,32, 72,8); u8g2.drawLine(61,32, 72,8);}

  116.     if (m == 33) {u8g2.drawLine(67,32, 76,8); u8g2.drawLine(61,31, 76,8);}

  117.     if (m == 34) {u8g2.drawLine(67,32, 79,8); u8g2.drawLine(62,31, 79,8);}

  118.     if (m == 35) {u8g2.drawLine(67,33, 82,9); u8g2.drawLine(62,30, 82,9);}

  119.     if (m == 36) {u8g2.drawLine(66,34, 85,10); u8g2.drawLine(62,30, 85,10);}

  120.     if (m == 37) {u8g2.drawLine(66,34, 87,12); u8g2.drawLine(62,30, 87,12);}

  121.     if (m == 38) {u8g2.drawLine(66,34, 90,13); u8g2.drawLine(63,30, 90,13);}

  122.     if (m == 39) {u8g2.drawLine(66,35, 92,15); u8g2.drawLine(63,30, 92,15);}

  123.     if (m == 40) {u8g2.drawLine(66,35, 94,17); u8g2.drawLine(63,30, 94,17);}

  124.     if (m == 41) {u8g2.drawLine(65,35, 96,19); u8g2.drawLine(64,30, 96,19);}

  125.     if (m == 42) {u8g2.drawLine(65,35, 98,21); u8g2.drawLine(64,30, 98,21);}

  126.     if (m == 43) {u8g2.drawLine(65,35, 99,23); u8g2.drawLine(64,29, 99,23);}

  127.     if (m == 44) {u8g2.drawLine(64,35, 100,26); u8g2.drawLine(64,29, 100,26);}

  128.     if (m == 45) {u8g2.drawLine(64,35, 100,32); u8g2.drawLine(64,29, 100,32);} ///

  129.     if (m == 46) {u8g2.drawLine(64,35, 100,35); u8g2.drawLine(64,29, 100,35);}

  130.     if (m == 47) {u8g2.drawLine(64,35, 99,37); u8g2.drawLine(64,29, 99,37);}

  131.     if (m == 48) {u8g2.drawLine(64,35, 98,40); u8g2.drawLine(64,29, 98,40);}

  132.     if (m == 49) {u8g2.drawLine(64,35, 96,42); u8g2.drawLine(65,28, 96,42);}

  133.     if (m == 50) {u8g2.drawLine(64,35, 94,44); u8g2.drawLine(65,28, 94,44);}

  134.     if (m == 51) {u8g2.drawLine(63,35, 92,46); u8g2.drawLine(66,30, 92,46);}

  135.     if (m == 52) {u8g2.drawLine(63,35, 90,48); u8g2.drawLine(66,30, 90,48);}

  136.     if (m == 53) {u8g2.drawLine(64,34, 87,48); u8g2.drawLine(66,29, 87,48);}

  137.     if (m == 54) {u8g2.drawLine(63,35, 85,48); u8g2.drawLine(67,31, 85,48);}

  138.     if (m == 55) {u8g2.drawLine(67,31, 82,52); u8g2.drawLine(63,35, 82,52);}

  139.     if (m == 56) {u8g2.drawLine(67,31, 79,53); u8g2.drawLine(62,35, 79,53);}

  140.     if (m == 57) {u8g2.drawLine(67,31, 76,54); u8g2.drawLine(62,35, 76,54);}

  141.     if (m == 58) {u8g2.drawLine(67,31, 72,54); u8g2.drawLine(62,34, 72,54);}

  142.     if (m == 59) {u8g2.drawLine(67,31, 68,54); u8g2.drawLine(62,32, 68,54);}

  143.   } while ( u8g2.nextPage() );

  144.   delayMicroseconds(10000);

  145. }

  146.

  147. void toggleOutput(){

  148.     s++;

  149.     if (s == 60) {

  150.       s = 0;

  151.       m++;

  152.     }

  153.     if (m == 60) {

  154.       m = 0;

  155.       g++;

  156.     }

  157.     if (g == 24) {

  158.       g = 0;

  159.     }

  160.     kropki = !kropki;               //blinking colon every 1 sec.

  161. }

  162.

  163. void Dipsw(){

  164.   byte readPin1, readPin1A, readPin2, readPin2A, readPin3, readPin3A;

  165.   readPin1 = digitalRead(inPin1);           //read the state of the rotation button

  166.   readPin2 = digitalRead(inPin2);           //reading the status of the right move button

  167.   readPin3 = digitalRead(inPin3);           //reading the state of the move left button

  168.   delay(1);

  169.   readPin1A = digitalRead(inPin1);

  170.   readPin2A = digitalRead(inPin2);

  171.   readPin3A = digitalRead(inPin3);

  172.   if (readPin1 == LOW and readPin1 == readPin1A) {

  173.     //setting the time - selecting hours or minutes

  174.     P1++;

  175.     delay(200);

  176.     if (P1 == 3){

  177.       P1 = 0;

  178.     }

  179.   }

  180.   if (readPin2 == LOW and readPin2 == readPin2A) {

  181.     //correcting hours and minutes up

  182.     if (P1 == 1){                           //correcting minutes

  183.        m++;

  184.        if (m == 59) {m = 0;}

  185.     }

  186.     if (P1 == 2){                           //framing minutes

  187.       g++;

  188.       if (g == 24){g = 0;}

  189.     }

  190.     delay(200);

  191.   }

  192.   if (readPin3 == LOW and readPin3 == readPin3A) {

  193.   //correcting hours and minutes down

  194.     if (P1 == 1){                           //correcting minutes

  195.       m--;

  196.       if (m >= 60) {m = 59;}

  197.       if (m <= 0) {m = 59;}

  198.     }

  199.     if (P1 == 2){                           //correcting hours

  200.       g--;

  201.       if (g >= 24){g = 23;}

  202.       if (g <= 0){g = 23;}

  203.     }

  204.     delay(200);

  205.   }

  206. }
复制代码


回复

使用道具 举报

驴友花雕  中级技神
 楼主|

发表于 3 小时前

【Arduino 动手做】DIY Arduino 模拟时钟

【Arduino 动手做】DIY Arduino 模拟时钟
项目链接：https://www.hackster.io/mircemk/diy-arduino-analog-clock-93aead
项目作者：北马其顿 米尔塞姆克（Mirko Pavleski）

项目视频 ：https://www.youtube.com/watch?v=EkwxNqki2ew
项目代码：https://www.hackster.io/code_files/598371/download

【Arduino 动手做】DIY Arduino 模拟时钟图1

回复

使用道具 举报

高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

为本项目制作心愿单
购买心愿单
心愿单 编辑
[[wsData.name]]

硬件清单

  • [[d.name]]
btnicon
我也要做!
点击进入购买页面
撰写新帖
关于楼主
勋章墙
萌萌哒新人 活跃会员 宣传大使 牛X认证 创作达人 ARD DAY 摸鱼团员 志“童”道合 编辑选择奖

楼主的其它帖子

background 创造力兑换 background 心愿单 background 创客导航
上海智位机器人股份有限公司 沪ICP备09038501号-4 备案 沪公网安备31011502402448

© 2013-2025 Comsenz Inc. Powered by Discuz! X3.4 Licensed

mail
